TD-8811 ADSL2+ Modem Router User Guide
29

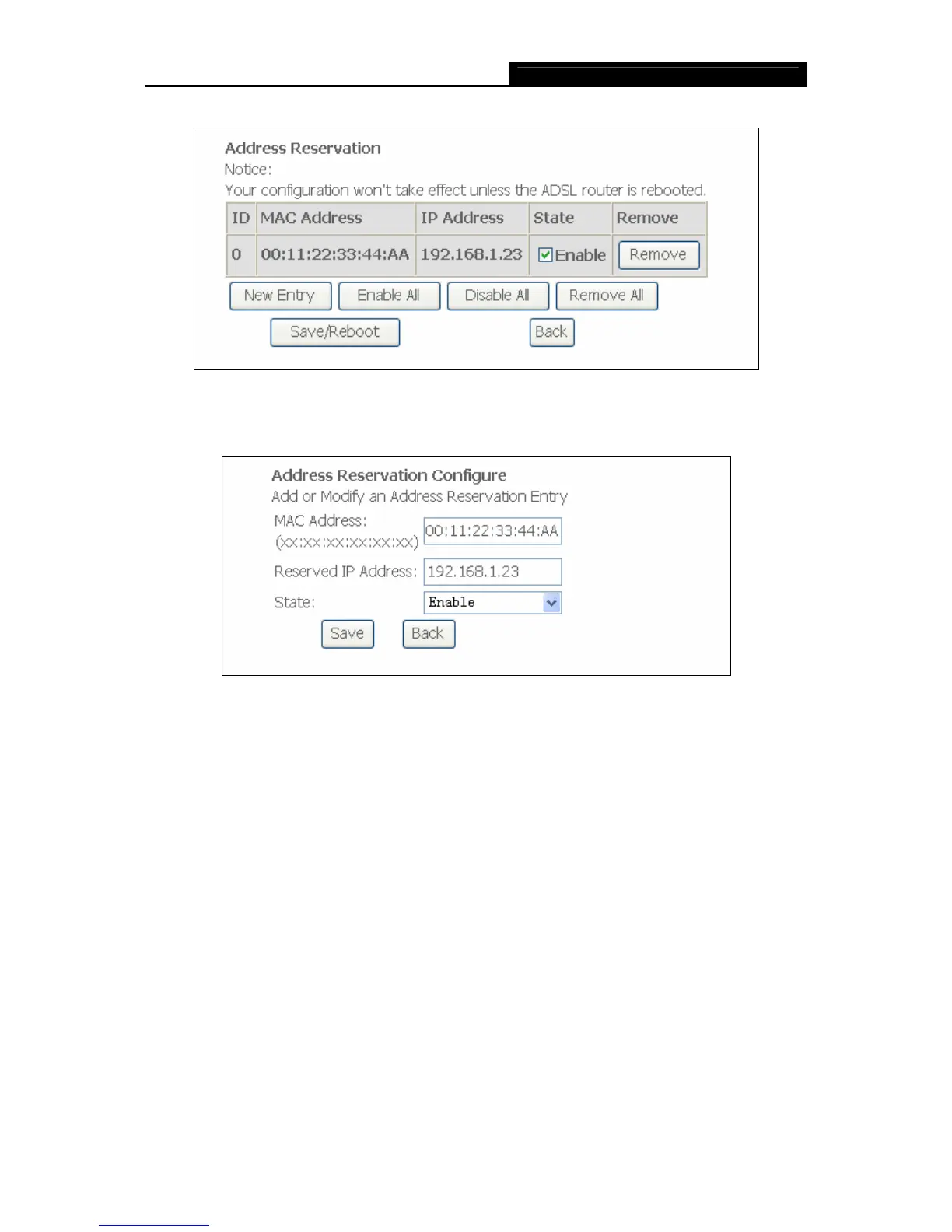

as it showed below:
Figure 3-26
2. Click New Entry button to add new entries, and the screen showed below pop up, you can
modify an address reservation entry in this screen;
Figure 3-27
3. Type the MAC Address (00:11:22:33:44:AA for instance) of the computer which you want to
reserve an IP (192.168.1.23 for instance) for in the MAC Address text box;
4. Type the IP Address (192.168.1.23 for instance) you have reserved in the Reserved IP
Address text box;
5. Click Save button to save the settings you have set;
)
Note:
The MAC Address and IP Address added in the text box used for illustrating. That may be
different to your circs.
6. When you have saved the settings, the new entry will added to the Address Reservation
screen showed below.

TP-Link TD-8811 Specifications

General

Connectivity LEDs	Yes
Dimensions (WxDxH)	165 x 108 x 28 mm
Connectivity technology	Wired
Maximum data transfer rate	0.1 Gbit/s
Supported data transfer rates	10/100 Mbps
Networking standards	IEEE 802.1d
Ethernet LAN data rates	10, 100 Mbit/s
Routing protocols	IP
Supported network protocols	PPPoE, RFC 2364
DSL specification	ANSI T1.413 Issue 2, ITU-T G.992.1, ITU-T G.992.2, ITU-T G.994.1, ITU-T G.992.3, ITU-T G.992.5
Ethernet LAN (RJ-45) ports	1
Firewall security	Network address translation (NAT) firewall, Stateful packet inspection (SPI) firewall
Security algorithms	802.1x RADIUS
Filtering description	Domain
Product color	Black, White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Power consumption (typical)	4.1 W

Weight and Dimensions

Weight	300 g
