TD-8811 ADSL2+ Modem Router User Guide
47

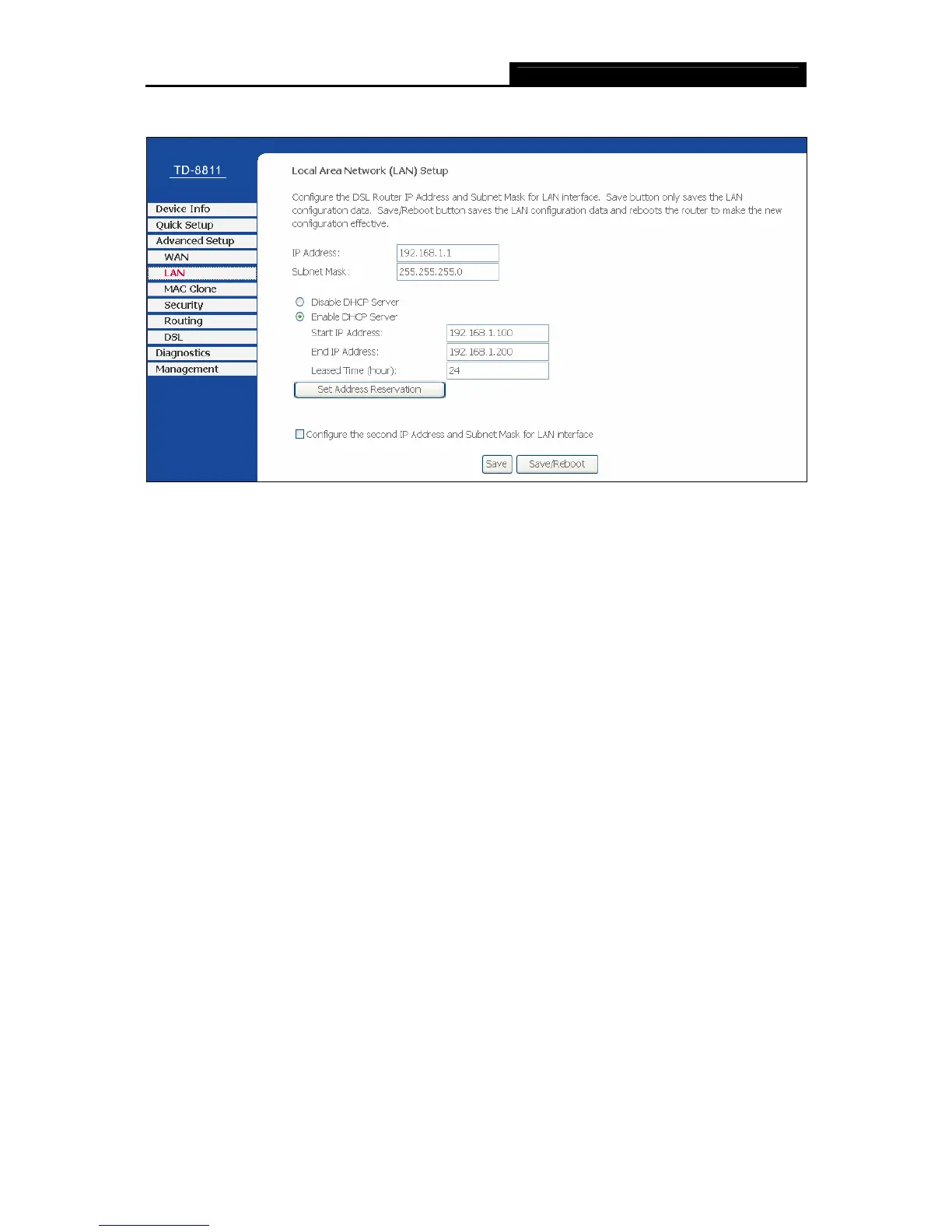

Network (LAN) parameters in the screen as shown in Figure 4-21.
Figure 4-21
¾ IP Address - Enter an IP address for the Router. Then you can access the Web-based
Utility via this IP address. The default setting is 192.168.1.1.
¾ Subnet Mask - An address code that determines the size of the network. Normally use
255.255.255.0 as the subnet mask.
)
Note:
a. If you change the IP Address of LAN, you must use the new IP Address to log in the
Router.
b. If the new LAN IP Address you set is not in the same subnet, the IP Address pool of the
DHCP server will change accordingly at the same time，while the Virtual Server and DMZ
Host will not take effect until they are re-configured.
¾ Disable/Enable DHCP Server - Disable or Enable the DHCP server. DHCP stands for
Dynamic Host Configuration Protocol. The DHCP Server will automatically assign dynamic
IP addresses to the computers on the network. If you disable the Server, you must have
another DHCP server within your network or else you must configure the computer
manually. The following options are available only when DHCP Server is enabled.
z Start IP Address - Specify an IP address for the DHCP Server to start with when
assigning IP addresses. 192.168.1.100 is the default start address
z End IP Address - Specify an IP address for the DHCP Server to end with when
assigning IP addresses. 192.168.1.199 is the default end address.
z Leased Time (hour) - The Lease Time is the amount of time a network user will be
allowed connection to the Router with their current dynamic IP address. Enter the
amount of time, in hours, and the user will be "leased" this dynamic IP address. After
the time is up, the user will be automatically assigned a new dynamic IP address. The

TP-Link TD-8811 Specifications

General

Connectivity LEDs	Yes
Dimensions (WxDxH)	165 x 108 x 28 mm
Connectivity technology	Wired
Maximum data transfer rate	0.1 Gbit/s
Supported data transfer rates	10/100 Mbps
Networking standards	IEEE 802.1d
Ethernet LAN data rates	10, 100 Mbit/s
Routing protocols	IP
Supported network protocols	PPPoE, RFC 2364
DSL specification	ANSI T1.413 Issue 2, ITU-T G.992.1, ITU-T G.992.2, ITU-T G.994.1, ITU-T G.992.3, ITU-T G.992.5
Ethernet LAN (RJ-45) ports	1
Firewall security	Network address translation (NAT) firewall, Stateful packet inspection (SPI) firewall
Security algorithms	802.1x RADIUS
Filtering description	Domain
Product color	Black, White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Power consumption (typical)	4.1 W

Weight and Dimensions

Weight	300 g
