TP-Link TD-8811 User Manual

TD-8811 ADSL2+ Modem Router User Guide
37
After choosing the proper protocol, enter the correct parameters supported by your ISP. Enable
the configurations, and then you will go to the Internet.
)
Note:
The type of network protocol selected may be different in different areas. There are five types
（Figure 4-5）,
so you should ask your ISP to acquire the Connection Type and Encapsulation
Mode.
¾ PPP over ATM (PPPoA)

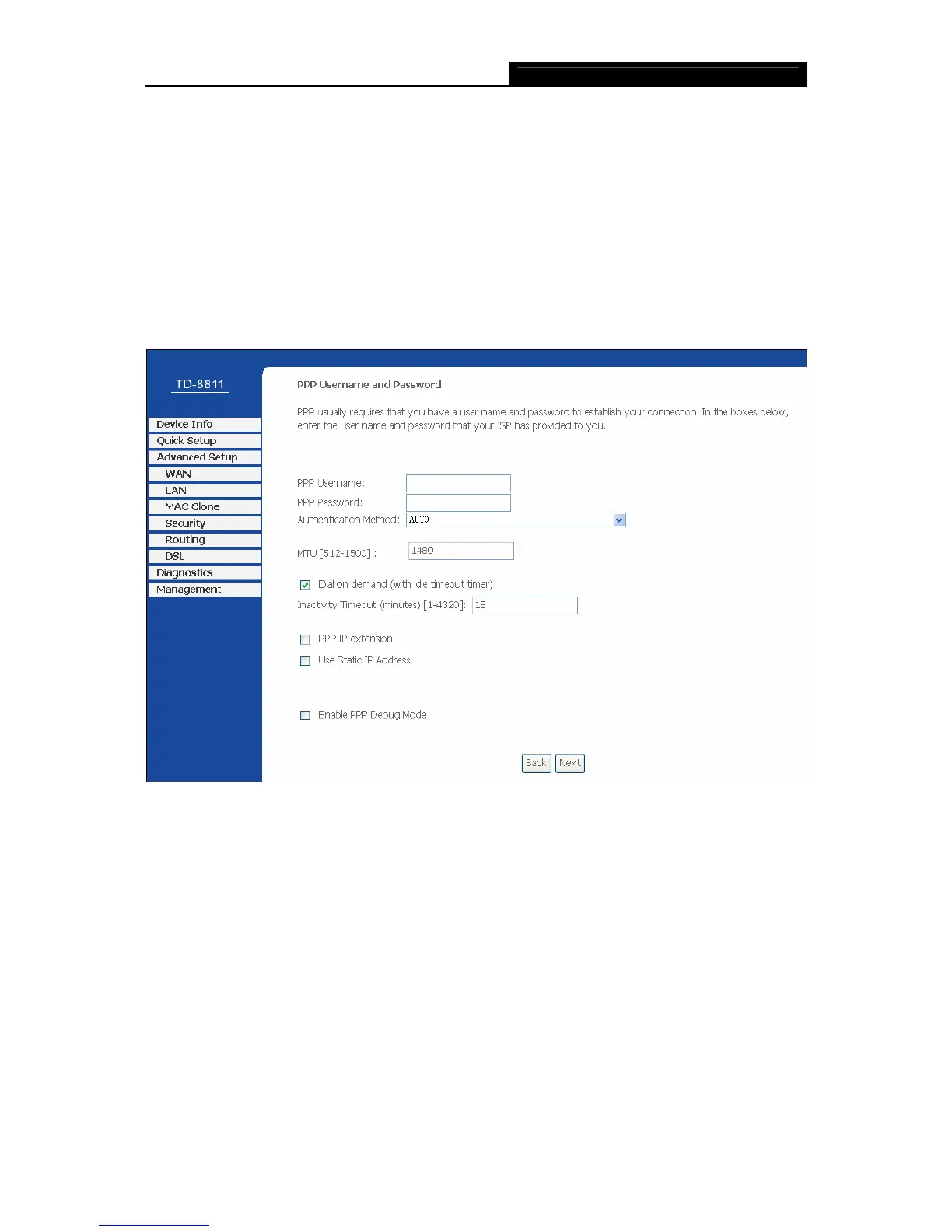

If you select the protocol of PPP over ATM (PPPoA), you will see the Figure 4-6.
Figure 4-6
 PPP Username: Enter your username for your PPPoA connection to identify and verify
your account to the ISP.
 PPP Password: Enter your password for your PPPoA connection.
 Authentication Method: Choose a method of authentication, AUTO, PAP, CHAP, or
MSCHAP.
 MTU: The default MTU value is 1480 Bytes. It is not recommended that you change the
default value unless required by your ISP. The value should be between 512 and 1500.
 Dial on demand: If you check this box, the Internet connection can be terminated
automatically after a specified inactivity period (Inactivity Timeout) and be re-established
when you attempt to access the Internet again. The default value of Inactivity Timeout is
15. The value should be between 1 and 4320.

TP-Link TD-8811 Specifications

General

Connectivity LEDs	Yes
Dimensions (WxDxH)	165 x 108 x 28 mm
Connectivity technology	Wired
Maximum data transfer rate	0.1 Gbit/s
Supported data transfer rates	10/100 Mbps
Networking standards	IEEE 802.1d
Ethernet LAN data rates	10, 100 Mbit/s
Routing protocols	IP
Supported network protocols	PPPoE, RFC 2364
DSL specification	ANSI T1.413 Issue 2, ITU-T G.992.1, ITU-T G.992.2, ITU-T G.994.1, ITU-T G.992.3, ITU-T G.992.5
Ethernet LAN (RJ-45) ports	1
Firewall security	Network address translation (NAT) firewall, Stateful packet inspection (SPI) firewall
Security algorithms	802.1x RADIUS
Filtering description	Domain
Product color	Black, White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Power consumption (typical)	4.1 W

Weight and Dimensions

Weight	300 g
