TD-8811 ADSL2+ Modem Router User Guide
55

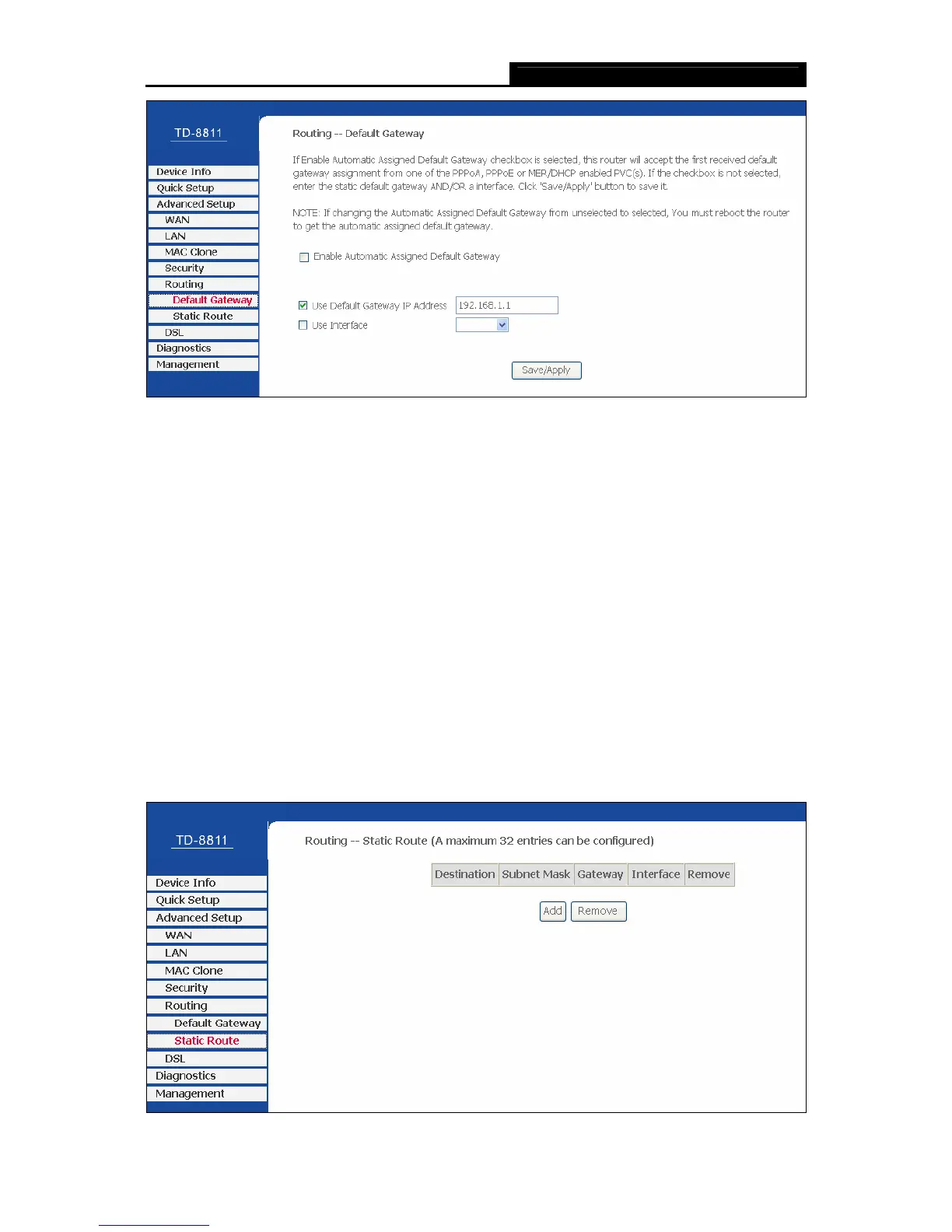

Figure 4-32
¾ Enable Automatic Assigned Default Gateway - Select this checkbox, and then the
Router will accept the first received default gateway assignment from one of the PPPoA,
PPPoE or MER/DHCP enabled PVC(s). If this checkbox is not selected, you have to enter
the static default gateway and/or an interface. Click Save/Apply to save your
configurations.
)
Note:
If changing the Enable Automatic Assigned Default Gateway from unselected to selected,
you must reboot the Router to get the automatic assigned default gateway.
4.3.5.2 Static Route
Choose “Routing→Static Route” m
enu, you can view and add the Static Route entry in the
next screen as shown in Figure 4-33. A static route is a pre-determined
path that network
information must travel to reach a specific host or network.

TP-Link TD-8811 Specifications

General

Connectivity LEDs	Yes
Dimensions (WxDxH)	165 x 108 x 28 mm
Connectivity technology	Wired
Maximum data transfer rate	0.1 Gbit/s
Supported data transfer rates	10/100 Mbps
Networking standards	IEEE 802.1d
Ethernet LAN data rates	10, 100 Mbit/s
Routing protocols	IP
Supported network protocols	PPPoE, RFC 2364
DSL specification	ANSI T1.413 Issue 2, ITU-T G.992.1, ITU-T G.992.2, ITU-T G.994.1, ITU-T G.992.3, ITU-T G.992.5
Ethernet LAN (RJ-45) ports	1
Firewall security	Network address translation (NAT) firewall, Stateful packet inspection (SPI) firewall
Security algorithms	802.1x RADIUS
Filtering description	Domain
Product color	Black, White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Power consumption (typical)	4.1 W

Weight and Dimensions

Weight	300 g
