Trane BCHC User Manual

10 BCXC-SVX01A-EN
Dimensions
and WeightsInstallation

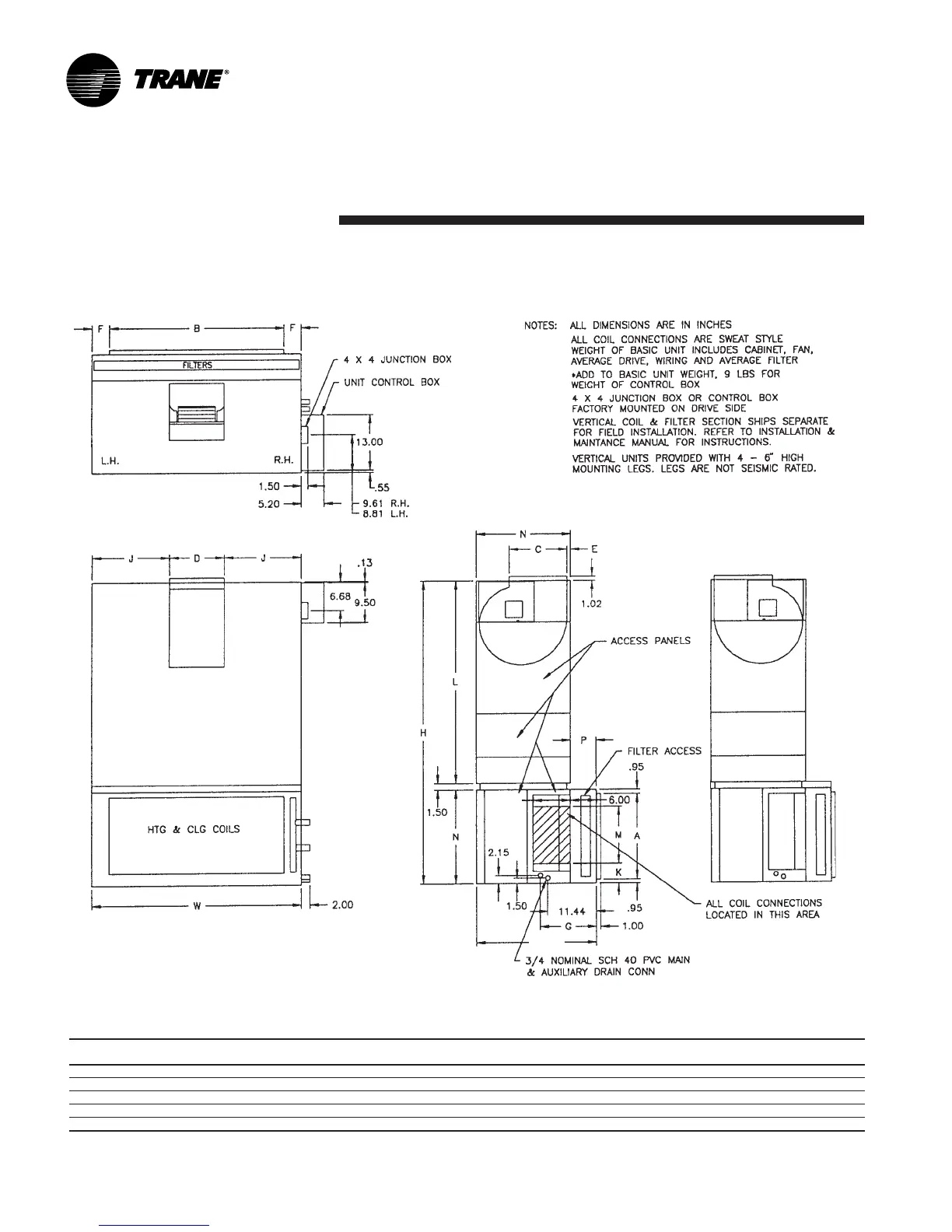

Vertical Blower Coil
Vertical Blower Coil Unit Dimensions and Weights, in-lbs.
Unit unit
Size H W L A B C D E F G (RH) G (LH) J K M N weight
24 65.50 28.00 44.00 16.09 22.00 13.56 12.56 1.30 3.00 10.79 14.79 7.72 3.58 9.00 18.00 155.5
36 65.50 40.00 44.00 16.09 34.00 13.56 12.56 1.30 3.00 10.79 14.79 13.72 3.57 9.00 18.00 185.9
54 72.50 40.00 47.00 20.09 34.00 13.56 12.56 0.72 3.00 10.79 14.79 13.72 4.21 10.43 22.00 206.4
72 72.50 48.00 47.00 20.09 40.00 13.56 12.56 0.72 4.00 10.79 14.79 17.72 4.18 10.43 22.00 228.2
90 81.50 48.00 50.00 26.09 40.00 13.56 12.56 1.66 4.00 10.79 14.79 17.72 4.81 15.61 28.00 258.4
30.00
11.25
vertical counter swirl
configuration
vertical preswirl
configuration
front view
top view
*NOTE: ON UNITS WITHOUT A
TOP FILTER ACCESS SECTION
*
