Trane BCHC - Typical Wiring Diagrams

To Next Page

To Previous Page

58 BCXC-SVX01A-EN

Typical Wiring

DiagramMaintenance

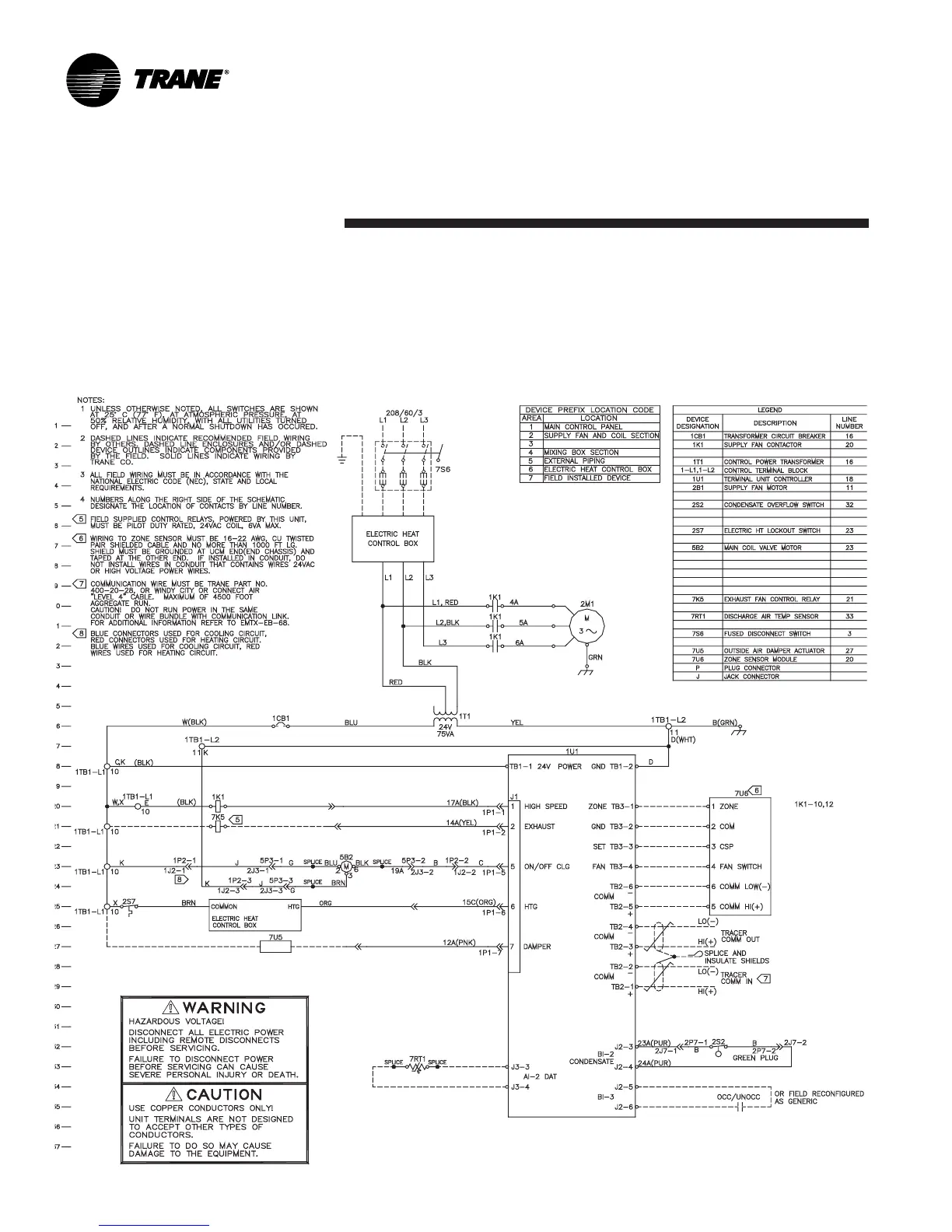

Two-Pipe BCXB with Tracer ZN510

• 208 volt/3 phase

• 2- position damper

• single stage electric heat

• 2-positon valve

•condensate overflow

•wall-mounted zone sensor
