12 BCXC-SVX01A-EN
Dimensions
and WeightsInstallation

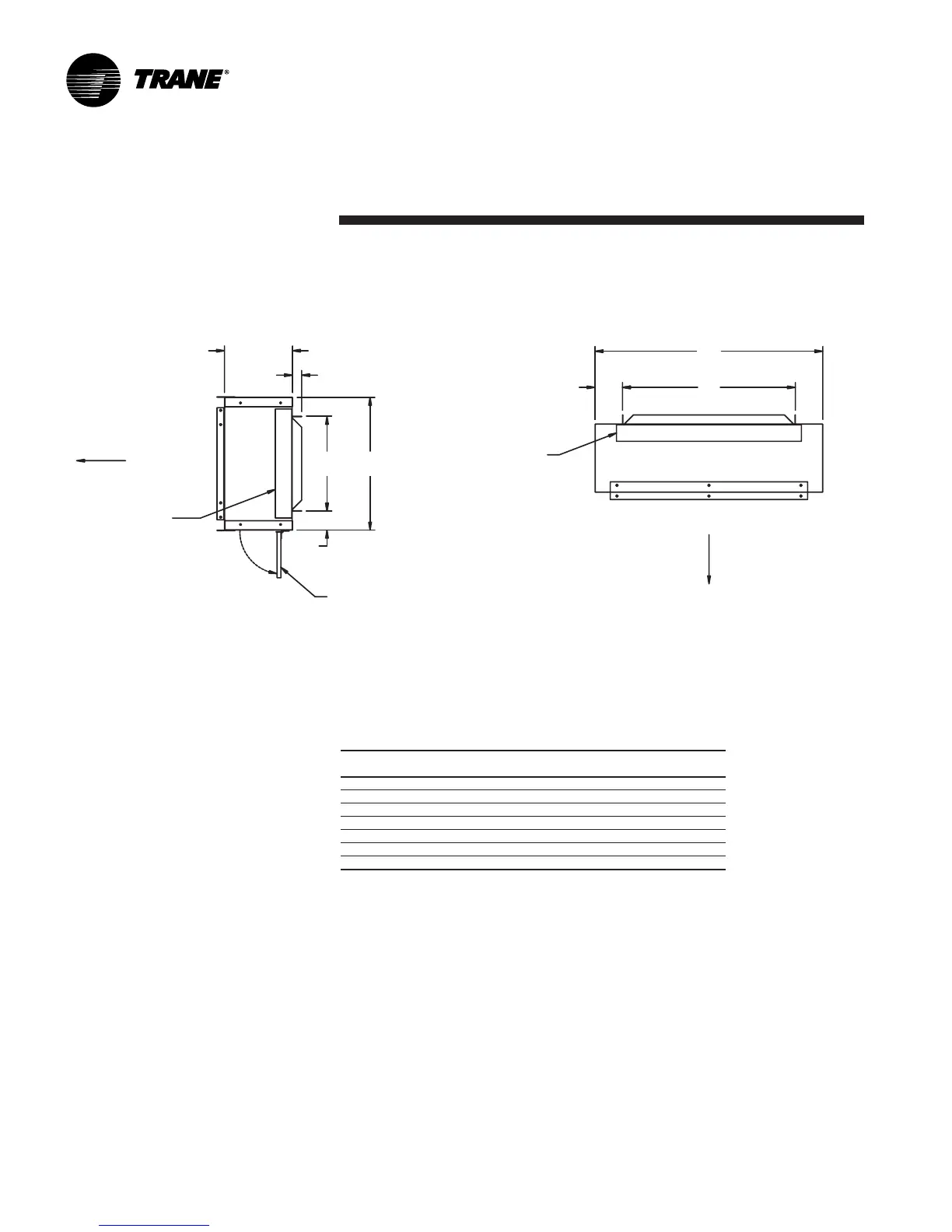

Bottom or Top Access Filter
Box
Bottom or Top Access Filter Box Dimensions and Weights, in-lbs.
Unit
Size H W A B C D weight
12 14.00 24.00 9.98 2.01 18.23 2.88 15
18 14.00 28.00 9.98 2.01 21.98 3.01 17
24 18.00 28.00 14.23 1.89 23.23 2.38 18
36 18.00 40.00 14.23 1.89 33.73 3.13 25
54 22.00 40.00 18.23 1.89 33.73 3.13 28
72 22.00 48.00 18.23 1.89 42.73 2.63 32
90 28.00 48.00 23.23 1.89 41.23 3.38 37
7.17
AIR FLOW
.97
RIGHT SIDE
FILTER ACCESS PANEL
FILTER
AIR FLOW
TOP
FILTER
NOTES:
1. DIMENSIONS ARE IN INCHES.
2. ROTATE 180° FOR TOP ACCESS.
right side view
top view
3. SECTION SHIPS ATTACHED TO THE UNIT.
