Trane BCHC - Angle Filter & Mixing Box; Angle Filter Box; Combination Angle Filter & Mixing Box; Mixing Box

BCXC-SVX01A-EN 11
Dimensions
and WeightsInstallation

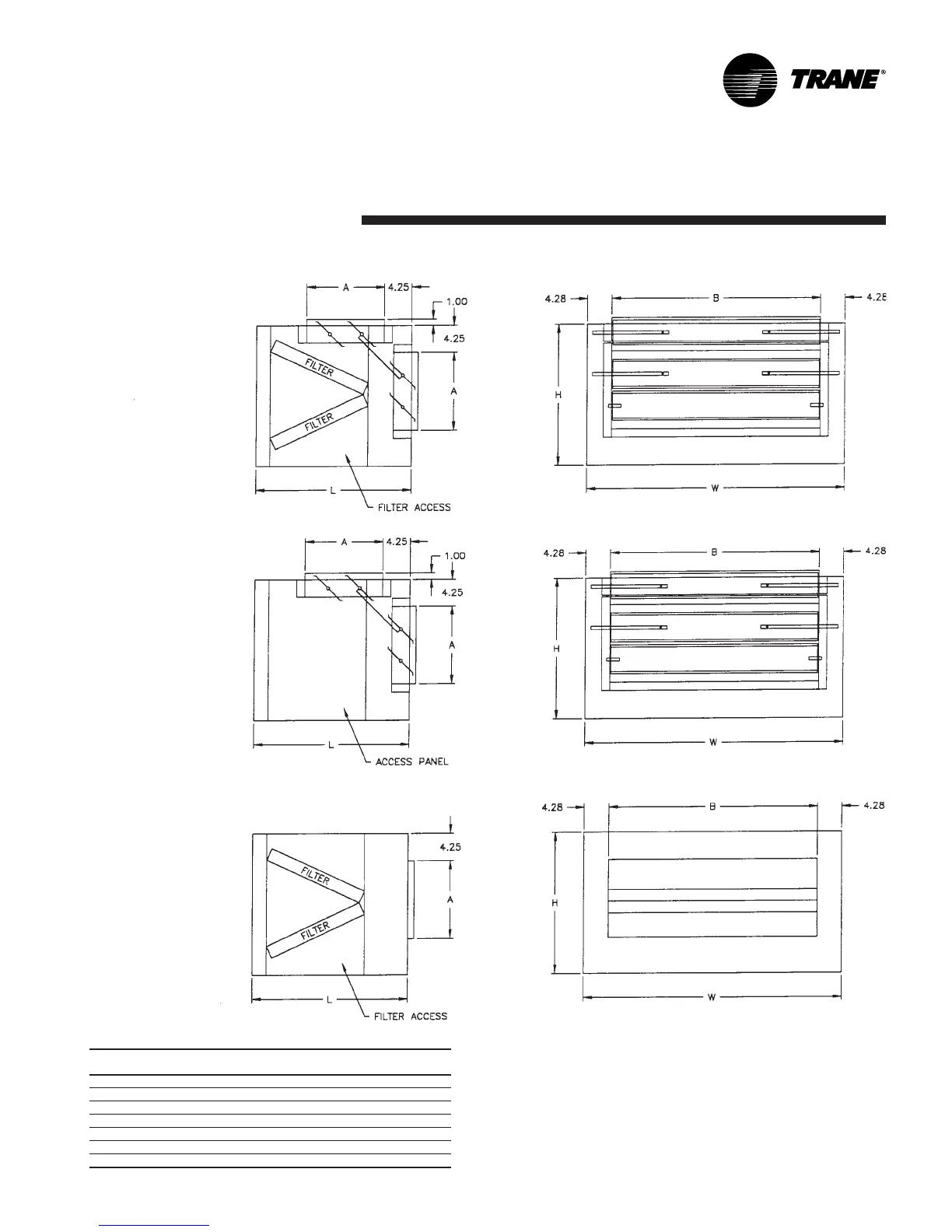

Angle Filter & Mixing Box
Angle Filter & Mixing Box Dimensions and Weights, in-lbs.
Unit
Size H L W A B weight
12 14.12 22.00 24.11 7.06 15.56 36.0
18 14.12 22.00 28.11 7.06 19.56 41.0
24 18.12 19.50 28.11 7.06 19.56 43.0
36 18.12 24.50 40.11 7.06 31.56 56.0
54 22.12 23.50 40.11 12.81 31.56 72.0
72 22.00 23.50 48.00 12.81 31.56 72.5
90 27.90 27.56 48.00 12.85 31.56 84.1
combination angle filter
& mixing box
mixing box
angle filter box
NOTES:
1. ALL DIMENSIONS ARE IN INCHES.
2. MIXING BOX SHIPS ASSEMBLED FOR FIELD INSTALlatION.
3. LINKAGE BETWEEN DAMPERS IS FACTORY INSTALLED
INSIDE MIXING BOX, OPPOSITE DRIVE SIDE. DRIVE ROD ON
BACK DAMPER MAY BE EXTENDED THRU KNOCKOUT FOR
EXTERNALLY MOUNTED ACTUATOR. TO ADJUST, LOOSEN
HEX HD SET scREW ON BLADE.
4. UNIT SIZE 36 HAS ONLY ONE ANGLE FILTER TRACK. ALL
OTHER UNIT SIZES HAVE 2 FILTER TRACKS AS SHOWN.
5. ALL SECTIONS SHIP SEPARATELY.
