Trane BCHC - Electric Heat

BCXC-SVX01A-EN 13
Dimensions
and WeightsInstallation
Electric Heat

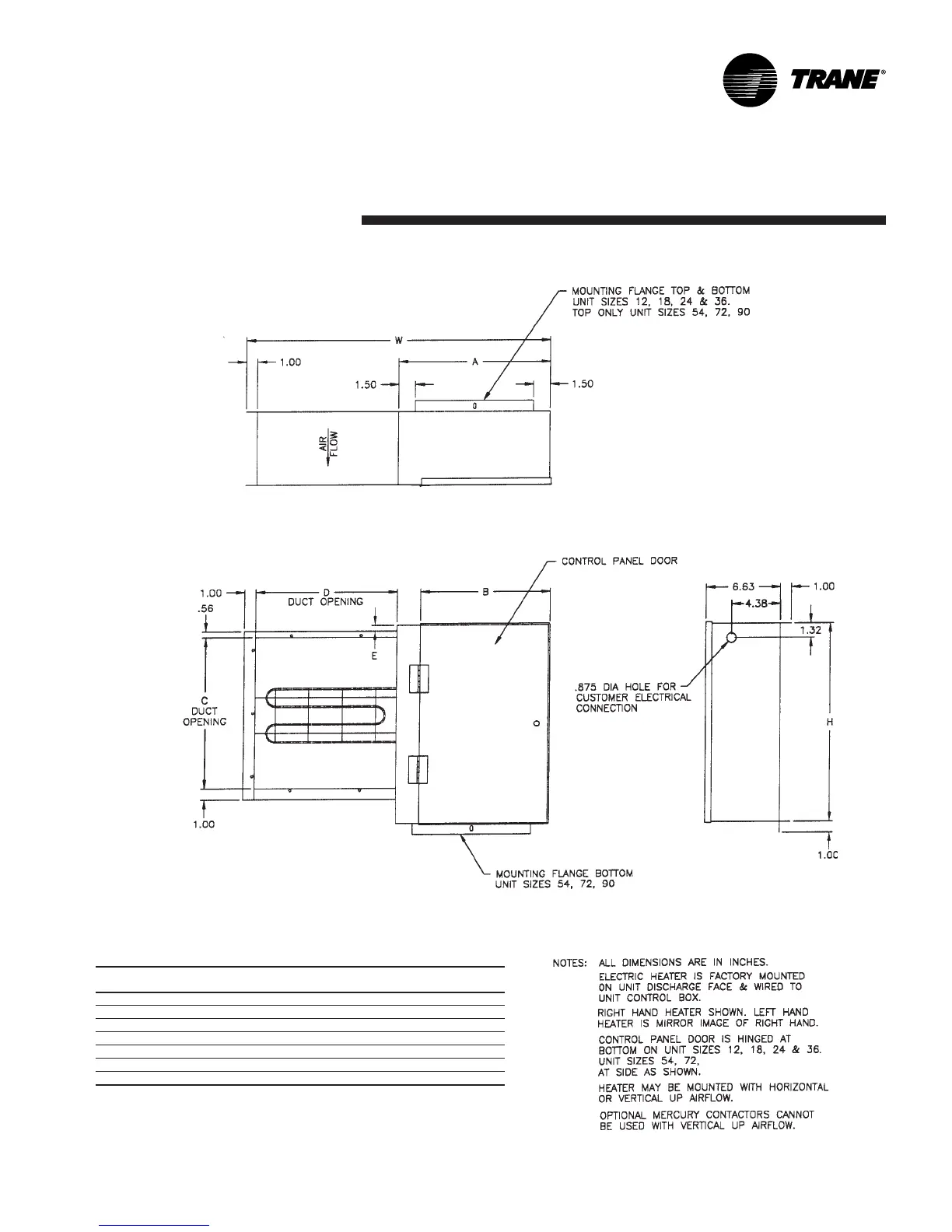

Electric Heat Dimensions and Weights, in-lbs.
Unit
Size H W A B C D E weight
12 14.06 17.88 8.13 6.79 10.50 7.75 0.03 10.0
18 14.06 19.88 10.13 8.79 10.50 7.75 0.03 10.8
24 18.06 21.25 7.63 6.29 13.50 12.63 0.80 11.3
36 18.06 27.25 13.63 12.29 13.50 12.63 0.80 12.8
54 18.06 27.25 13.63 11.67 13.50 12.63 0.22 16.0
72 18.06 27.25 13.63 11.67 13.50 12.63 0.22 17.4
90 18.06 27.25 13.63 11.67 13.50 12.63 1.16 19.2
& 90 ARE HINGED
top view
front view
right side view
