Model Number Description

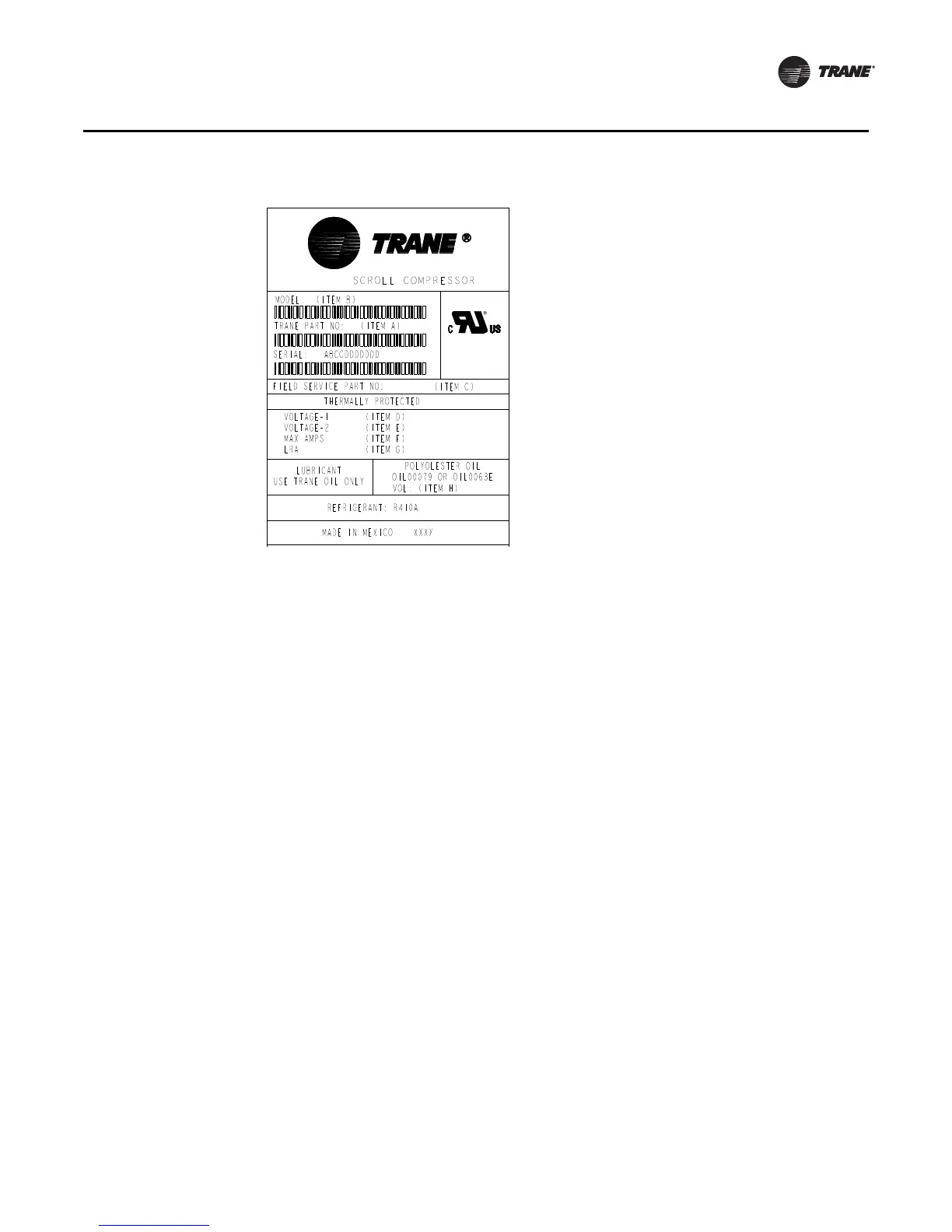

Figure 2. CGAM Compressor Nameplate
Compressor Model Number
The compressor model number is located on the compressor nameplates.
Digit 1,2,3,4
CSHD - Light Commercial
CSHN - Commercial
Digit 5,6,7 – Capacity- 60
Hz AHRI Kbtu/Hr
(approximate)
125 - CSHD
161 - CSHD
184 - CSHN
250 - CSHN
315 - CSHN
374 - CSHN
Digit 8 – Voltage
J - 200-230/3/60
K - 460/3/60-400/3/50
F - 230/3/50
D - 575/3/60
X - 380/3/60
Digit 9 – Unloading
(0 – no unloading)
Digit 10 – Design Sequence
Digit 11 – Protection
Module Voltage
0- Int Line Break- CDHD
A - 115 VAC
B - 230 VAC
H – 24 VAC
K- 115/230 VAC -CSHN
Digit 12 – Basic
Compressor Variation
M - Suction & Discharge Tube, oil
equalizer with seal nut,
Grade 32 POE oil
