134 CG-SVX17D-EN
Controls Interface
If the value entered is not valid, an error message will display and the change will not occur.
Diagnostics View
This window lists the active and inactive (history) diagnostics. There can be up to 60 diagnostics,
both active and historic. For example, if there were 5 active diagnostics, the possible number of
historic diagnostics would be 55. You can also reset active diagnostics here, (i.e., transfer active
diagnostics to history and allow the chiller to regenerate any active diagnostics).
Resetting the active diagnostics may cause the chiller to resume operation.
The Active and History diagnostics have separate tabs. A button to reset the active diagnostics
displays when either tab is selected.

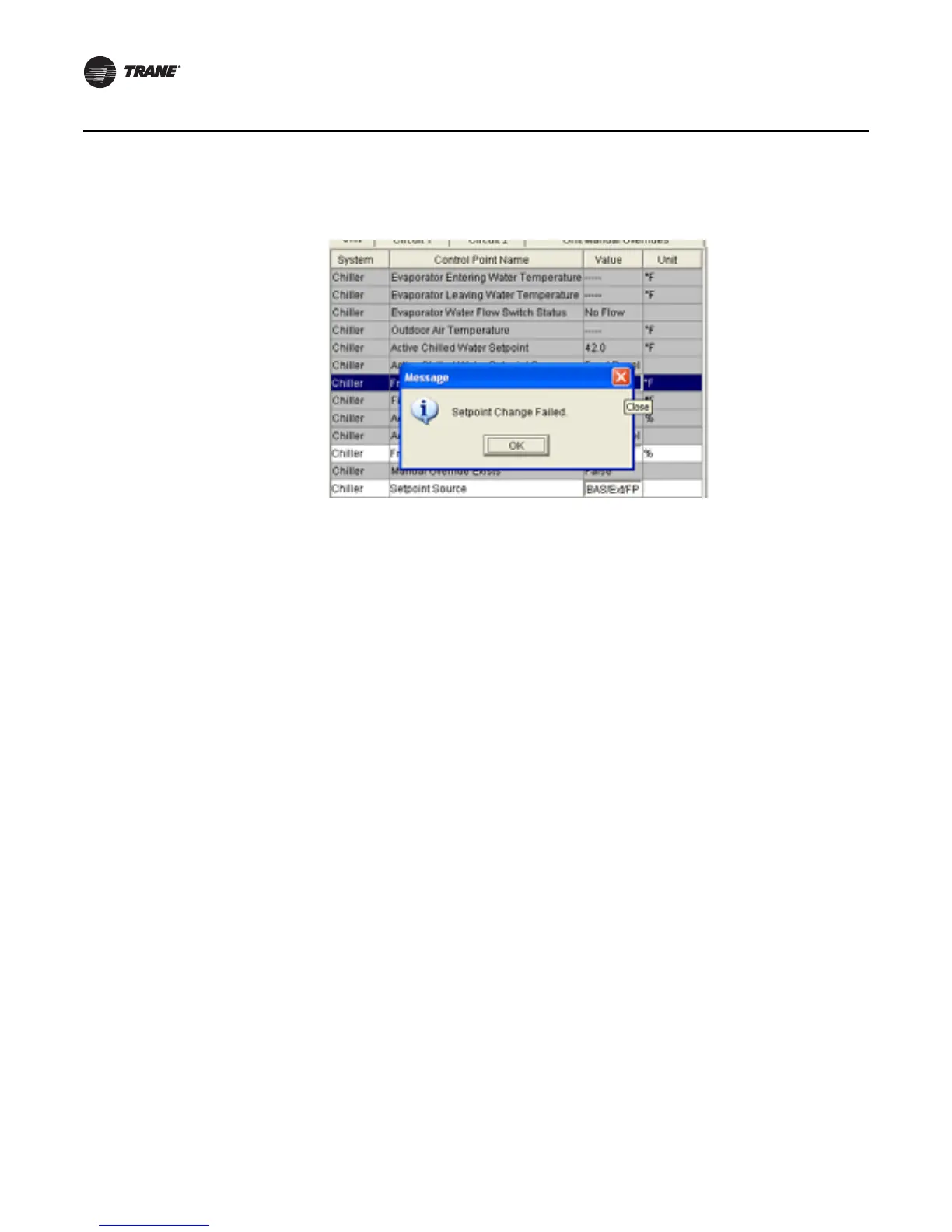

Figure 86. Setpoint Change Failed
