Controls Interface
The items that can be modified show up in white. The items that cannot be modified show up in
gray.
To change the setpoint enter a new value for the setpoint into the text field.
If the entered value is outside the given range, the background turns red.
Evaporator Water Pump 1 Starts Status Starts
Evaporator Water Pump 1 Running Time Status Time (Sec to HH:MM)
Heat Recovery Tab
Partial heat recovery (PHR) Fan Control Setting Disable/Enable
PHR Leaving Water Temperature Setpoint Setting Temp (°C)
PHR Leaving Water Temperature Adjustment Setting Delta Temp (°C)
Generic Monitoring Tab
Generic Temp Sensor Status Temp (°C)
Generic Pressure Sensor Status Pressure (kPa)
Generic Analog Monitor Status Current (mA)
Generic Low Volt Monitor Setting Open/Closed
Generic High Volt Monitor Setting Off/On
Table 57. Unit View Tabs - Detail
Tab
Item
Type Units
Min
Value
Max
Value
Default
Value

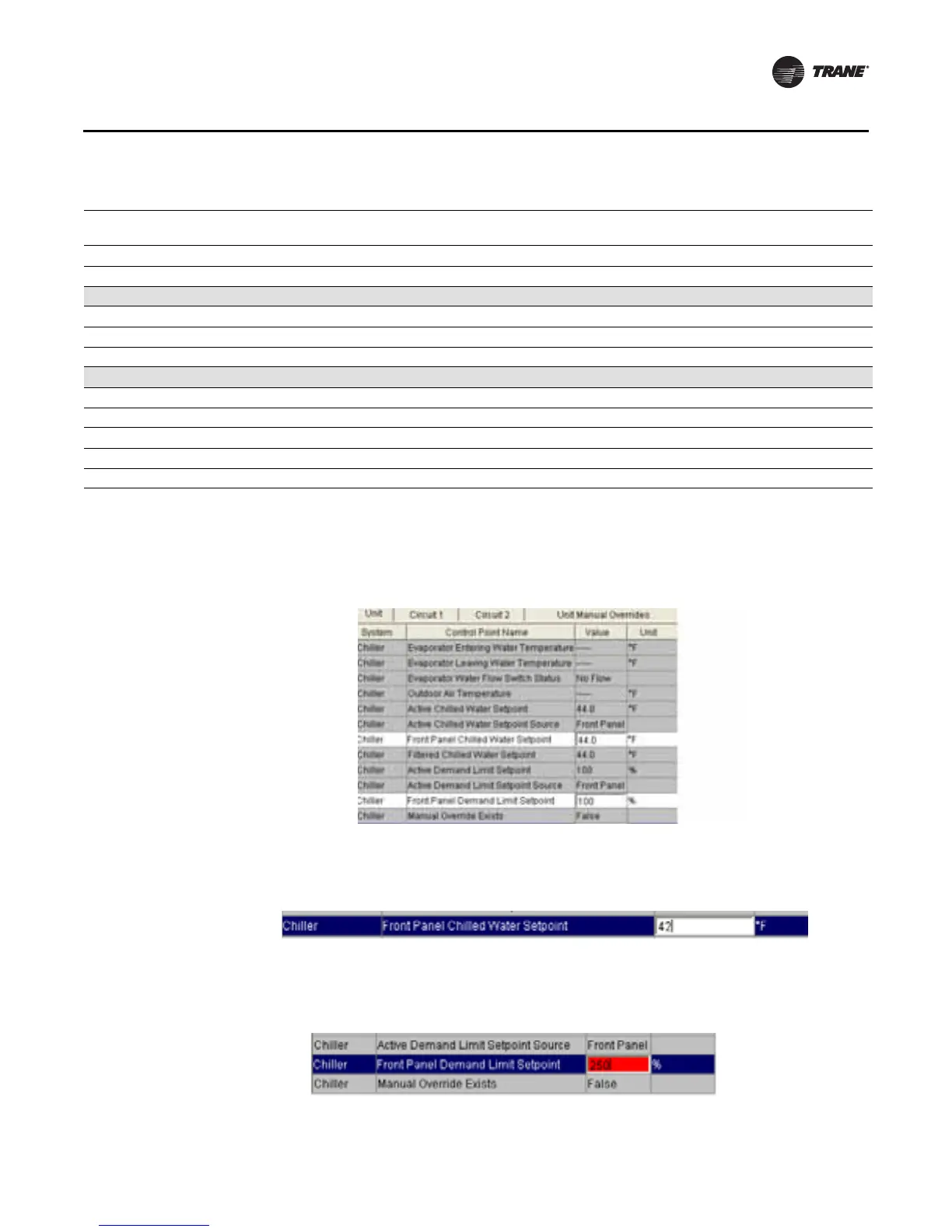

Figure 83. Fields in White
Figure 84. Change Setpoint
Figure 85. Change Out of Range
