Unit Dimensions/Weights

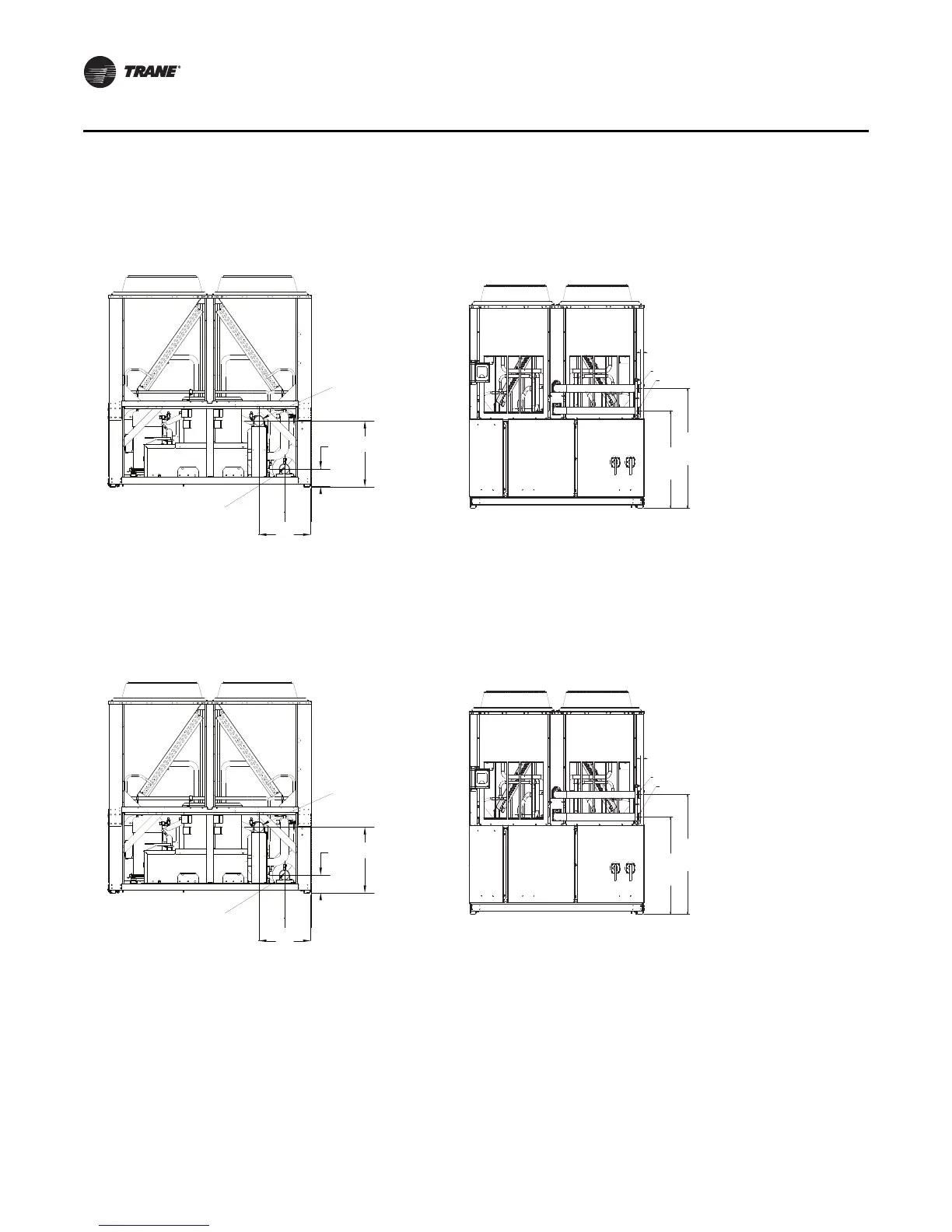

Figure 34. CGAM 80 and 120 ton- pump package unit water connections
Pump Package
Water connections are 5.9 in (151 mm) from unit end.
Chilled water
inlet
Chilled water
outlet
28.9 in (733 mm)
7.9 in (199 mm)
11.5 in (292 mm)
22.6 in (575 mm)
Heating outlet
Heating inlet
49.6 in (1259mm)
40.4 in (1025mm)
Water connections are .7 in (18 mm) from unit end.
Partial Heat Recovery
1.8 in (46 mm)
Figure 35. CGAM 130 ton- pump package unit water connections
Pump Package
Water outlet connect is 25 in (635 mm) and
Chilled water
inlet
Chilled water
outlet
28.9 in (734 mm)
7.9in (200 mm)
11.5 in (292 mm)
22.6 in (575 mm)
Heating outlet
Heating inlet
49.6 in (1259mm)
40.4 in (1025mm)
Water connections are .7 in (18 mm) from unit end.
Partial Heat Recovery
1.8 in (46 mm)
inlet is 6.3 in (159 mm) from unit end.
