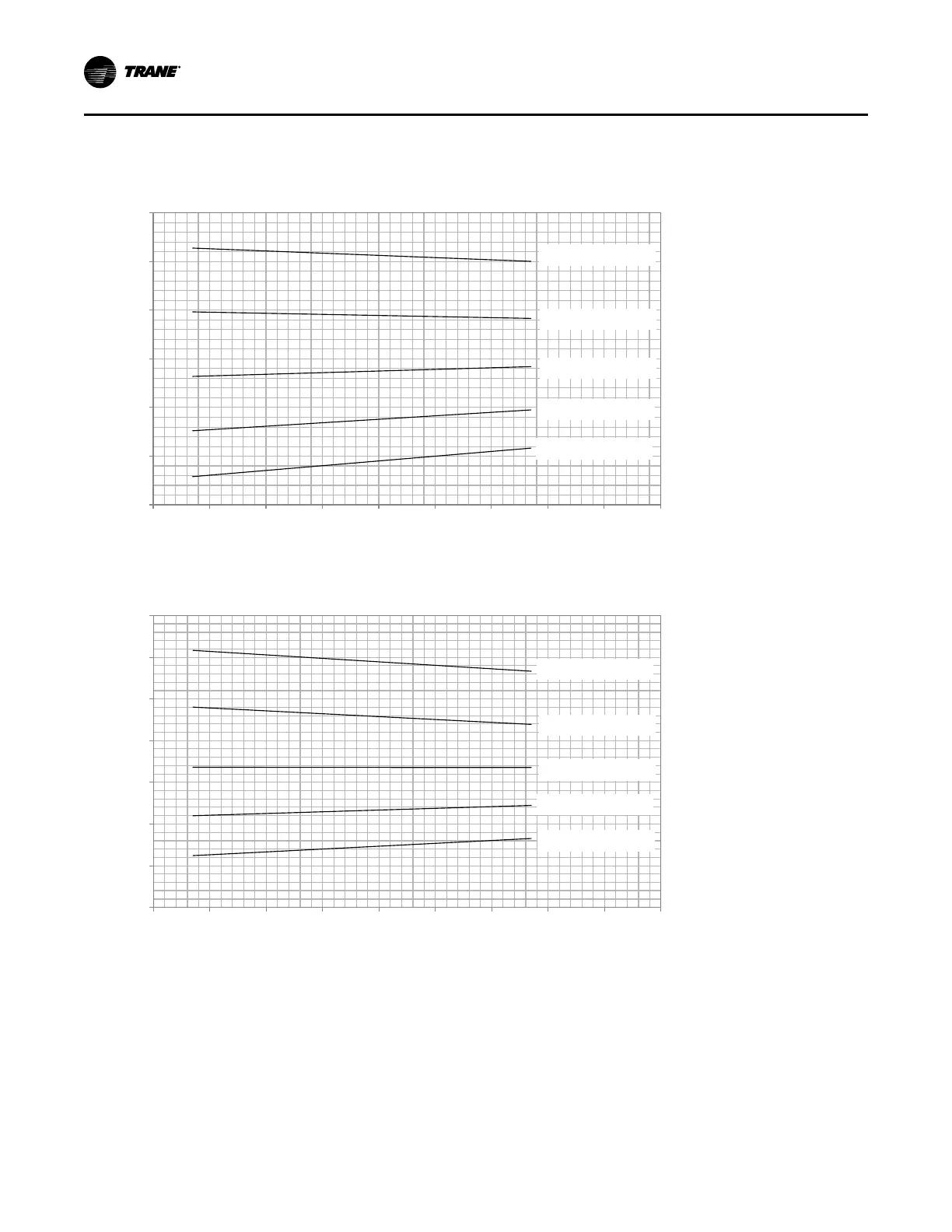

Figure 89. 90 ton eFlex variable speed—circuit 1 and circuit 2 operating pressure curve (compressor at 100% and all
condenser fans ON) (high capacity)
250
300
350
400
450
500
550
90 100 110 120 130 140 150 160 170 180
Discharge Pressure, PSIG
Sucon Pressure, PSIG
90 Ton eFlex Circuit 1, 60Hz High Capacity
105
o
F Ambient
95
o
F Ambient
85
o
F Ambient
75
o
F Ambient
65
o
F Ambient
200
250
300
350
400
450
500
550
90 100 110 120 130 140 150 160 170 180
Discharge Pressure, PSIG
Sucon Pressure, PSIG
90 Ton eFlex Circuit 2, 60Hz High Capacity
105
o
F Ambient
95
o
F Ambient
85
o
F Ambient
75
o
F Ambient
65
o
F Ambient
