Trane IntelliPak 2 Series - Page 134

134
RT-SVX24Q-EN

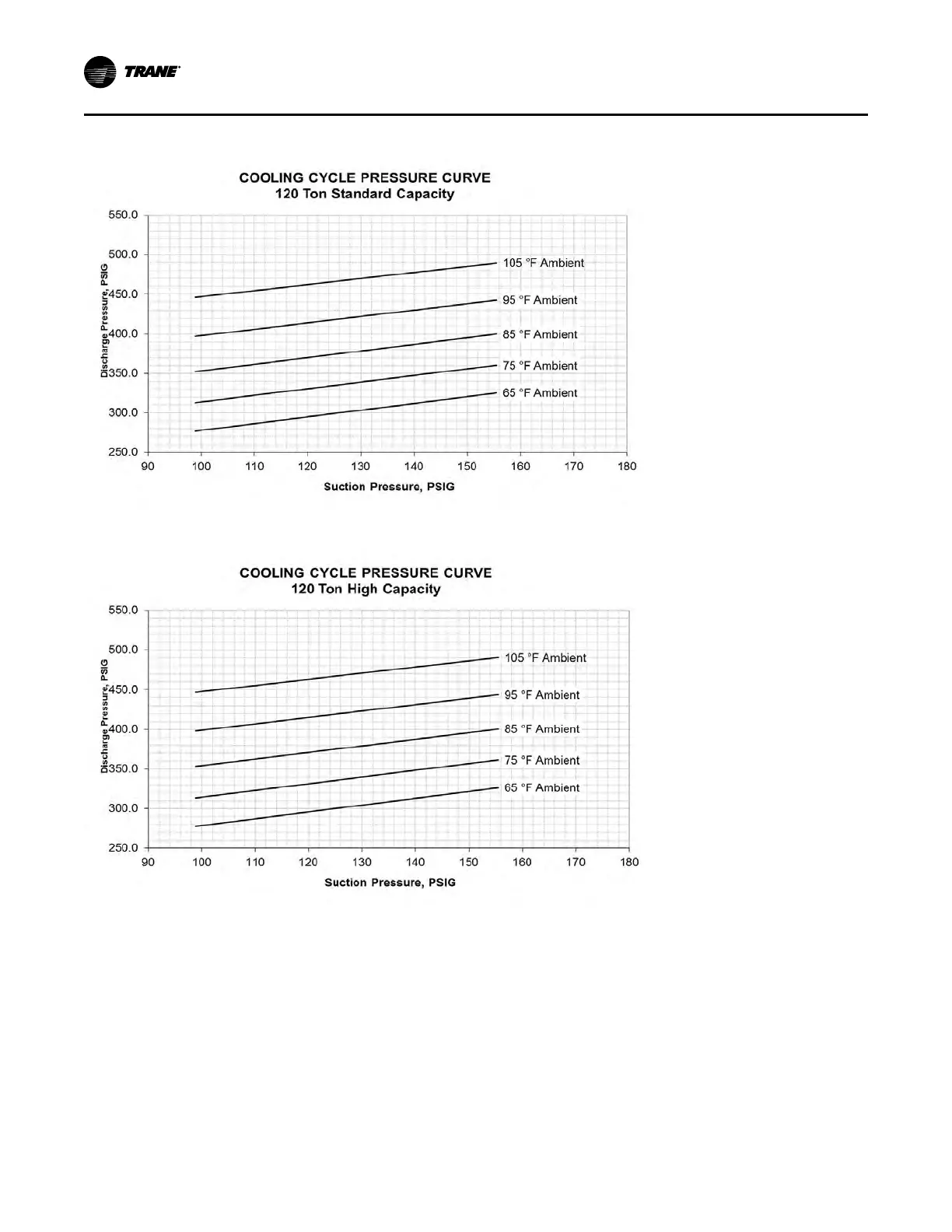

Figure 94. Operating pressure curve (all comp. and cond. fans per ckt. on)—120 tons std. capacity
Figure 95. Operating pressure curve (all comp. and cond. fans per ckt. on)—120 tons high capacity
UUnniitt SSttaarrttuupp
