Trane IntelliPak 2 Series - Page 137

RT-SVX24Q-EN
137

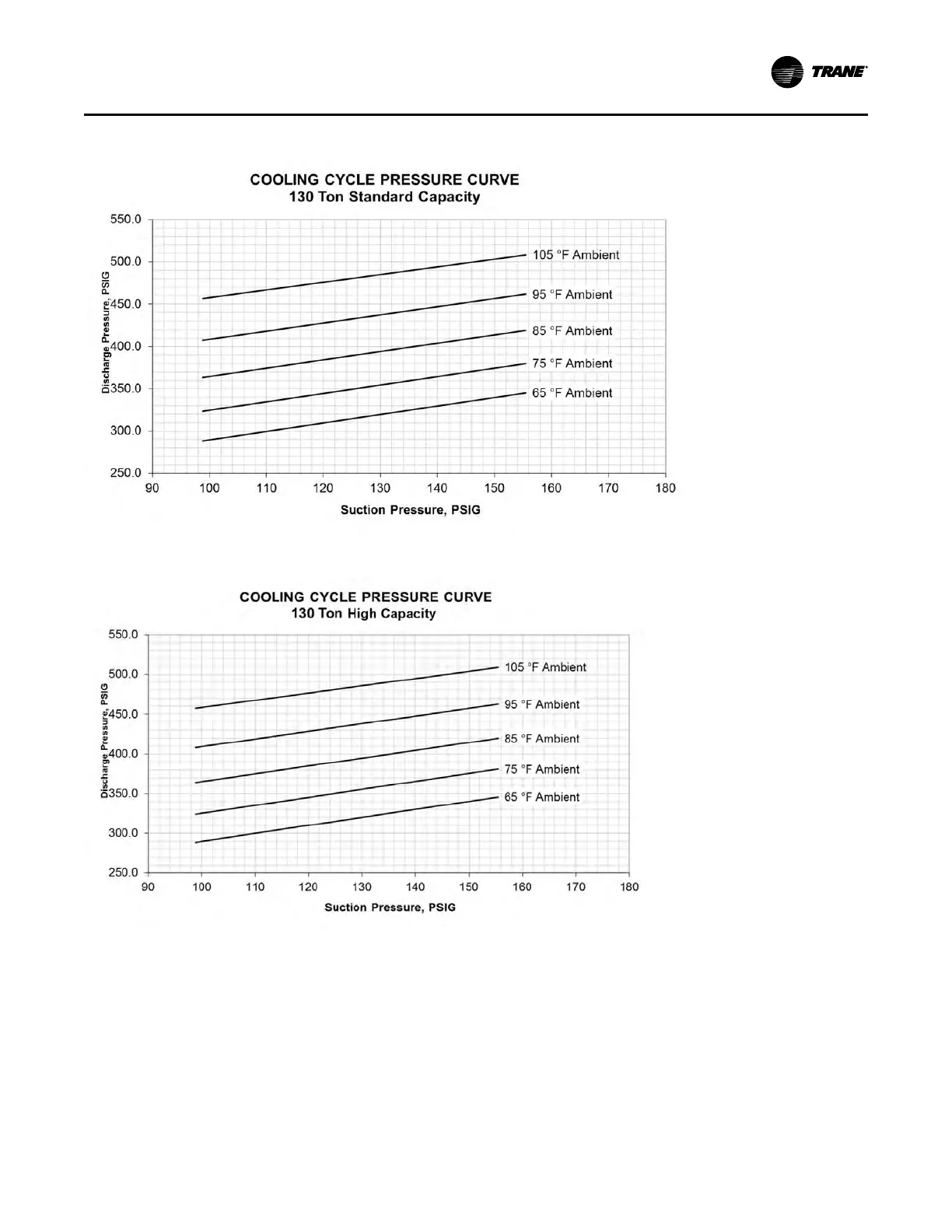

Figure 98. Operating Pressure Curve (All Comp. and Cond. Fans per ckt. on)—130 Tons Std. Capacity
Figure 99. Operating Pressure Curve (All Comp. and Cond. Fans per ckt. on)—130 Tons High Capacity
UUnniitt SSttaarrttuupp
