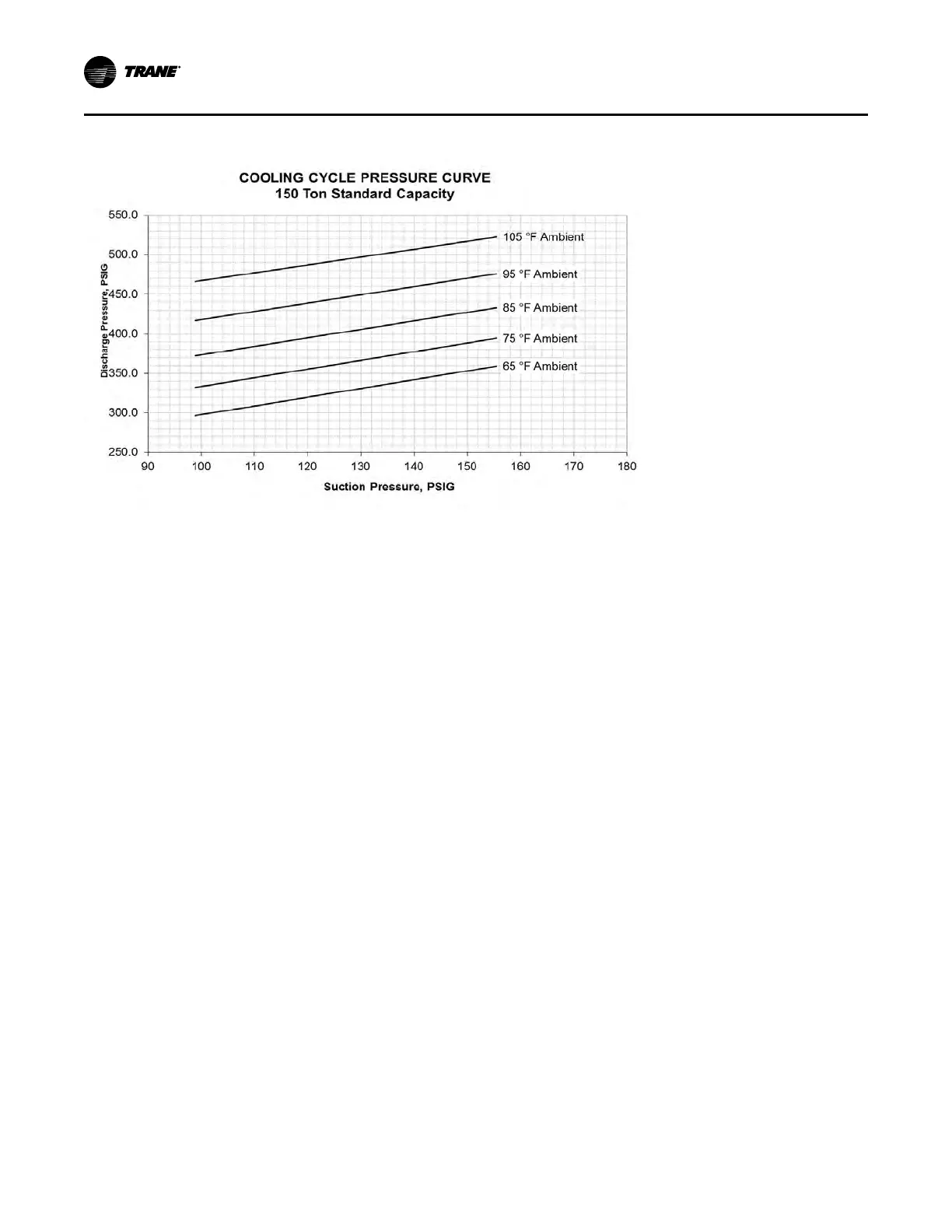

Figure 102. Operating pressure curve (all comp. and cond. fans per ckt. on)—150 ton std. capacity
NNoottee:: Due to the variable speed fans on Evaporative Condenser units, typical operating pressure curves are not relevant.
If operating pressures at certain conditions are needed, contact a local Trane sales representative.
