154
RT-SVX24Q-EN

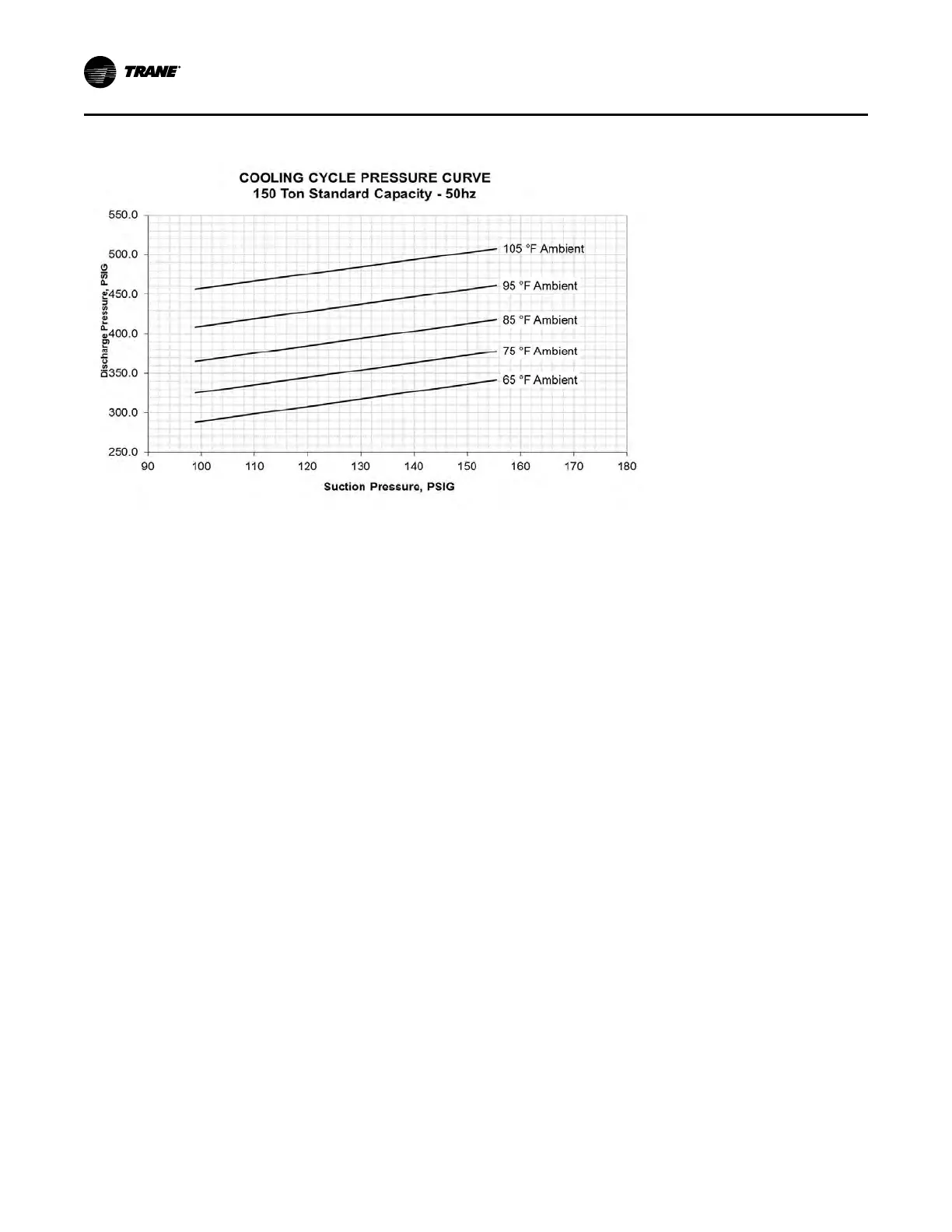

Figure 120. Operating pressure curve (all comp. and cond. fans per ckt. on)—150 tons standard capacity
NNoottee:: Due to the variable speed fans on evaporative condenser units, typical operating pressure curves are not relevant.
If operating pressures at certain conditions are needed, contact a local Trane sales representative.
UUnniitt SSttaarrttuupp
