RT-SVX24Q-EN
55

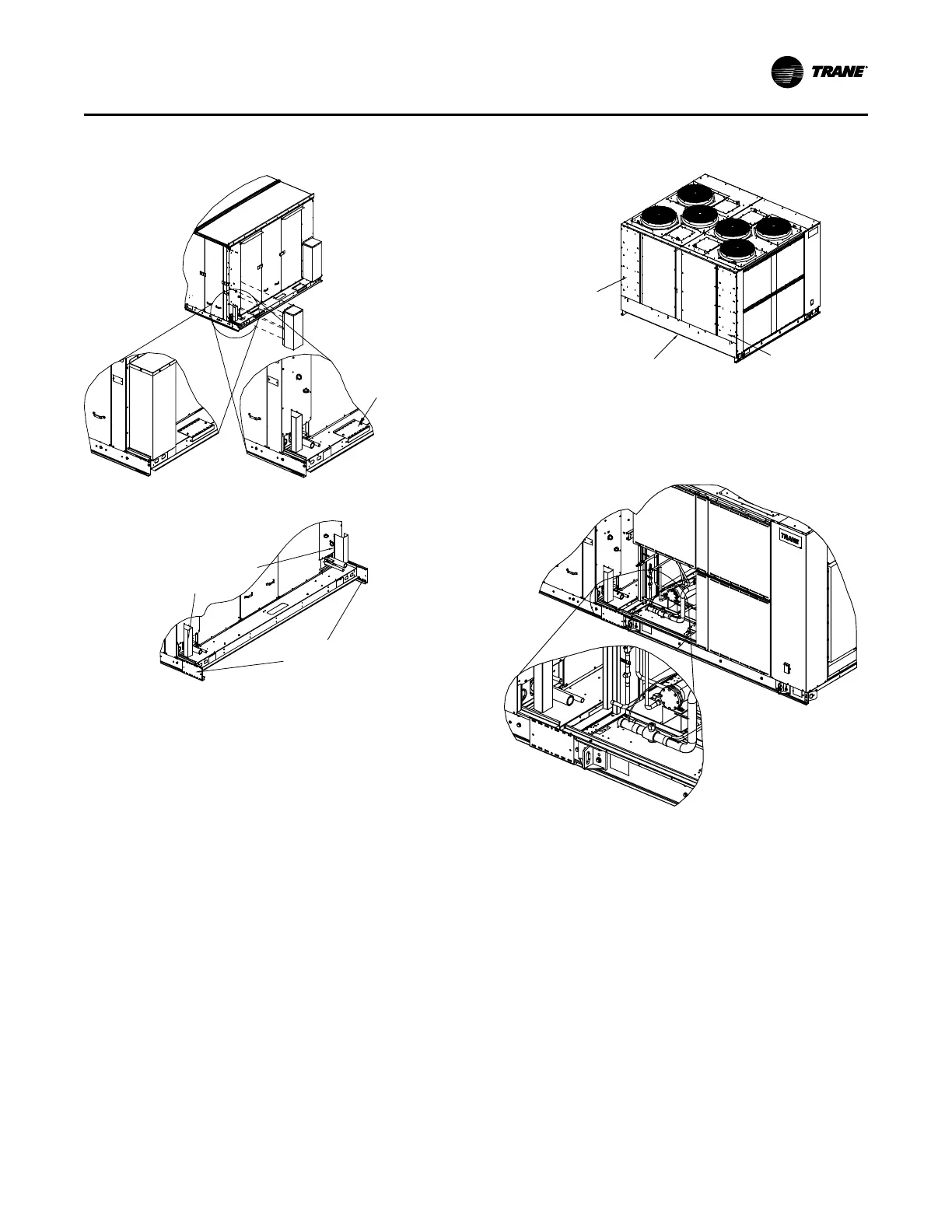

Figure 37. (1) Protection box removal/(2) rail
connector installation position
(1)
(a)
(b)
(2)
Note: Unscrew the rail connector
as show in fig 1(b) and screw
back to these locations
Note: Do not remove
the wiring shields
Rail connector
shipping position
Figure 38. (3) Side and top filler panel removal/(4)
high side installation preparation
Filler panel
shipping position
Filler panel
shipping position
Top cover
shipping position
(3)
Note: Remove the filler panels and top cover before putting the
Indoor and Outdoor sections together and screw to both Indoor
and Outdoor panels on each side as shown in fig (6). Finally the
top cover is assembled in space.
Unconnected tubes
(4)
IInnssttaallllaattiioonn
To Next Page
