according to the electrical data on the nameplate. Refer
to the equations listed in the product catalog to
determine the following:
• the appropriate electrical service wire size based on
“Minimum Circuit Ampacity” (MCA)
• the “Maximum Over Current Protection” (MOP)
device
• the “Recommended Dual Element fuse size” (RDE)
WWAARRNNIINNGG
PPrrooppeerr FFiieelldd WWiirriinngg aanndd GGrroouunnddiinngg
RReeqquuiirreedd!!
FFaaiilluurree ttoo ffoollllooww ccooddee ccoouulldd rreessuulltt iinn ddeeaatthh oorr
sseerriioouuss iinnjjuurryy..
AAllll ffiieelldd wwiirriinngg MMUUSSTT bbee ppeerrffoorrmmeedd bbyy qquuaalliiffiieedd
ppeerrssoonnnneell.. IImmpprrooppeerrllyy iinnssttaalllleedd aanndd ggrroouunnddeedd
ffiieelldd wwiirriinngg ppoosseess FFIIRREE aanndd EELLEECCTTRROOCCUUTTIIOONN
hhaazzaarrddss.. TToo aavvooiidd tthheessee hhaazzaarrddss,, yyoouu MMUUSSTT ffoollllooww
rreeqquuiirreemmeennttss ffoorr ffiieelldd wwiirriinngg iinnssttaallllaattiioonn aanndd
ggrroouunnddiinngg aass ddeessccrriibbeedd iinn NNEECC aanndd yyoouurr llooccaall//
ssttaattee//nnaattiioonnaall eelleeccttrriiccaall ccooddeess..
The location of the electrical service entrance is
illustrated in Figure 58, p. 75. It’s important to complete
the unit power wiring connections onto either the main
terminal block or the factory mounted, non-fused
disconnect switch. The disconnect switch is inside the
unit control panel. Refer to the component location
diagrams that shipped with the unit for specific
termination points.
Provide proper grounding for the unit in accordance
with local and national codes.

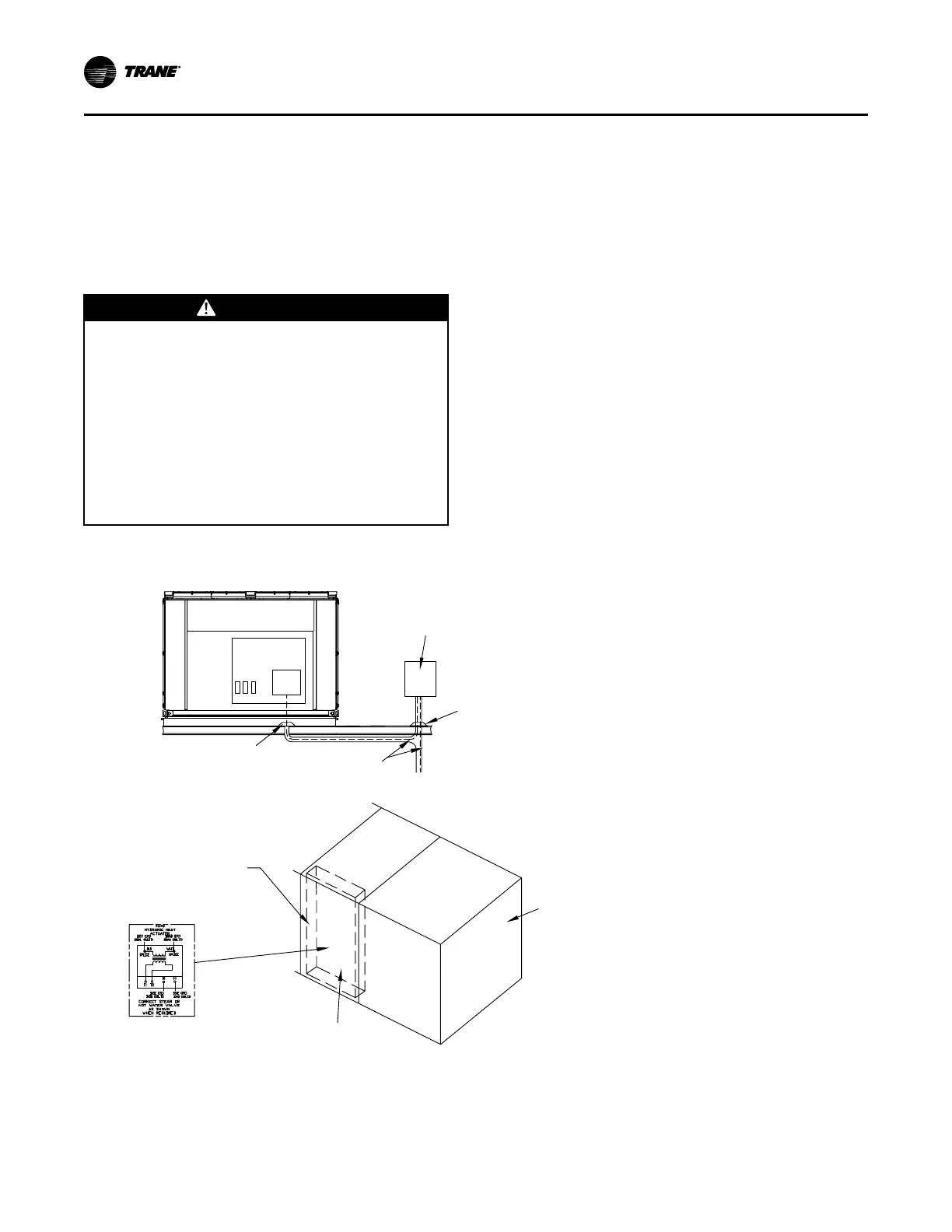

Figure 57. Typical field power wiring (front view)
Field Supplied Survice
Over Current Protection
Pitch Pocket
Pitch Pocket
3-Wire Power
Supply+Ground
Front View Control Box
1TB1
or
1S1
Electric Heat Control Panel
Gas Heat Control Panel
Steam or Hot Water Control Panel
Heat Control Box
Condenser
Section
IInnssttaallllaattiioonn
To Next Page
