RT-SVX24Q-EN

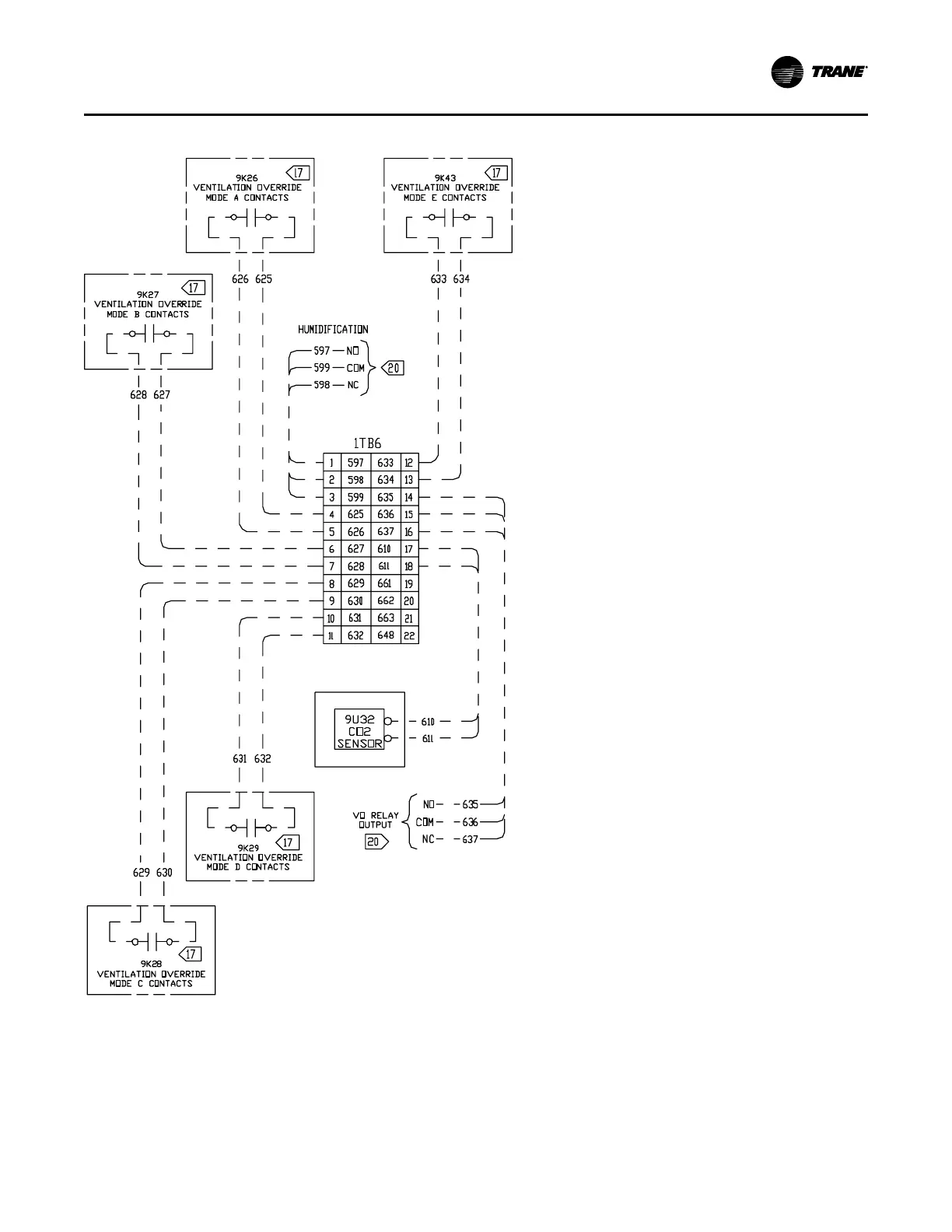

Figure 60. Typical ventilation override binary output for 90 to 162 ton CV control options

IInnssttaallllaattiioonn
