INSTRUCTION MANUAL
UG30 CONTROL
20 (44)
mP30-UG30 - Rev. 1.5 - Date: 18-03-2004 EN

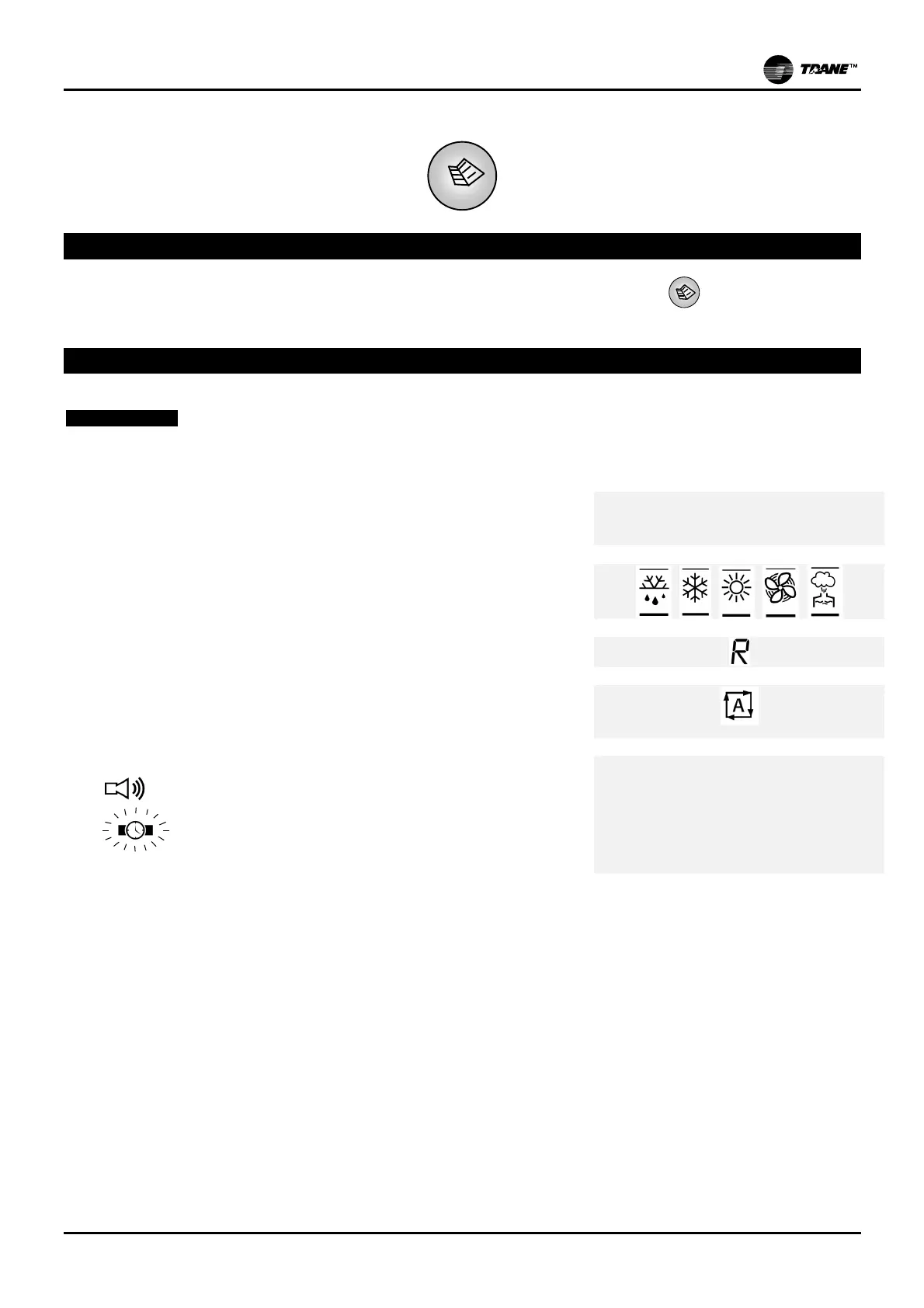

STATUS MASK
The unit’s function parameters (temperature, humidity, ….) can be read by pressing key
INFORMATION ON DISPLAY WHEN UNIT IS ON
STATUS MASK
When the unit is running, the STATUS MASK is shown on the display, with the following active fields:
B. Room temperature, room humidity (with humidity sensor only);
If the measured temperature and humidity values are incorrect, the sensors
can be calibrated as described in paragraph “SENSOR CALIBRATION”.
C. Currently operating functions: the following symbols are lighted according
to work conditions:
D. Unit commanded from a remote contact or a Supervisor.
E. Fans operating automatically.
On standard units (with F1=0 parameter) the fans always run at 100%
therefore, the symbol displayed on the right is always OFF.
F. Abnormal status:
• “
”: turns on during alarm event;
• "
": flashes if the threshold of a work hour-counter was
exceeded.
