INSTRUCTION MANUAL
UG30 CONTROL
mP30-UG30 - Rev. 1.5 - Date: 18-03-2004 EN
29 (44)

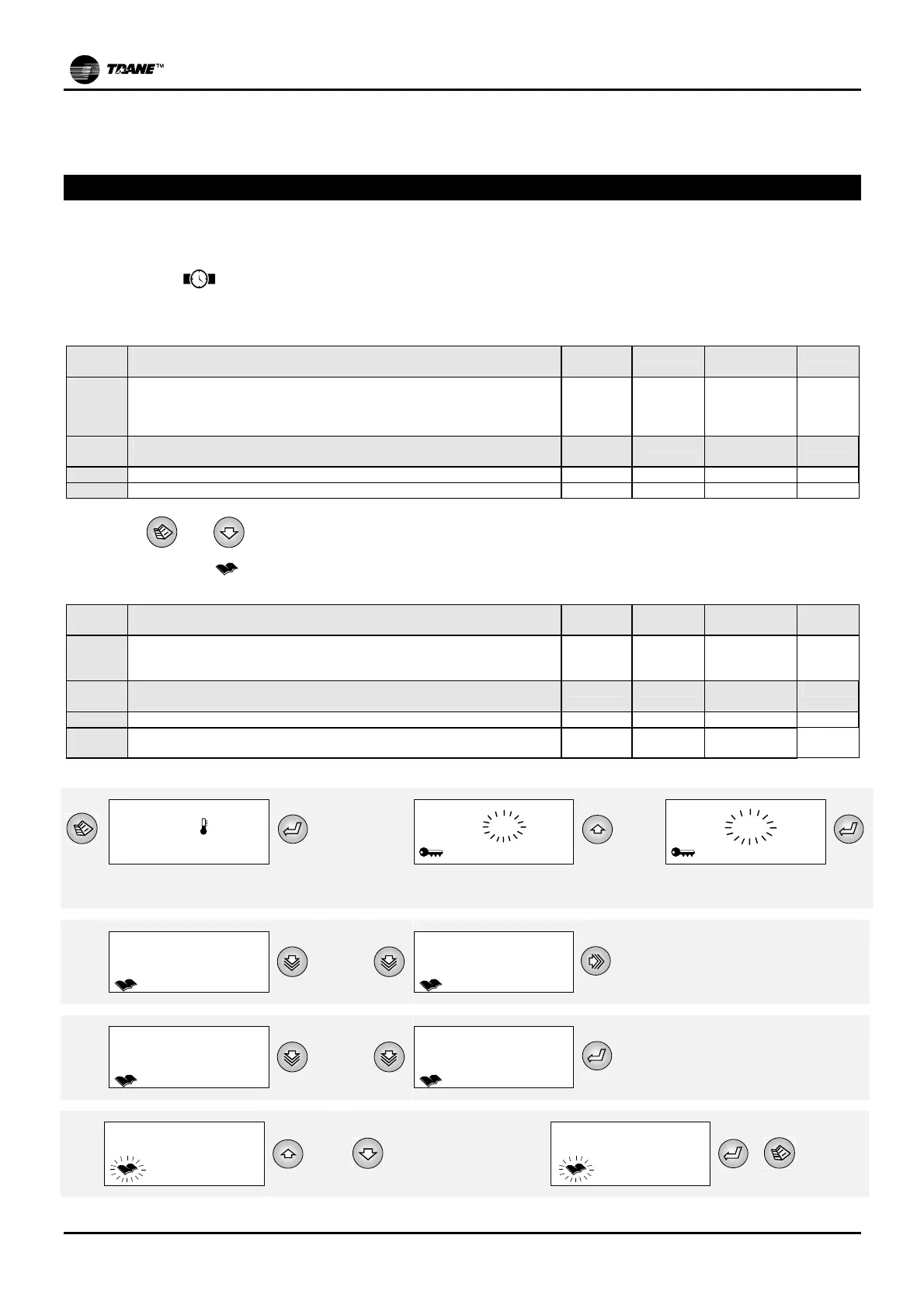

OPERATING HOUR-COUNTER
The UG30/mP30 control displays the operating hours of the units main components. By using the “hour-counter
threshold” parameters, the maintenance intervals for each component can be established. When the device in
question exceeds the indicated value, the processor signals the maintenance request by activating an alarm signal
and showing the
symbol in the top right corner of the display.
To modify the hour-counter thresholds, first have access the parameters in the programming mode (USER
password ).
Com COMPRESSOR
Minimum Maximum Measurement
unit
Default
c8 Hour-counter threshold for compressors operation.
It establishes the number of compressor operating hours beyond which the
maintenance request is signalled.
If c8 = 0 is selected, the function is disabled.
0 30000 Hours 0
FAn FANS
Minimum Maximum Measurement
unit
Default
F9 Hour-counter threshold for fan (0=hour-counter disabled)
0 30000 Hours 0
Fb Hour-counter threshold for filter (0=hour-counter disabled)
0 30000 Hours 1000
With the “hour-counter” parameter, the number of hours accumulated by the unit’s component can be read. If you
press keys
and for a few seconds, the hour-counter is reset. This operation is executed in programming
mode only, when the
symbol flashes.
Com COMPRESSOR
Minimum Maximum Measurement
unit
Default
c9
cA
Compressor 1 hour-counter
Compressor 1 hour-counter
Indicates number of operating hours of compressor 1 and/or 2
0 30000 hours 0
FAn FANS
Minimum Maximum Measurement
unit
Default
FA Fan hour-counter. Indicates number of fan operating hours.
0 30000 hours 0
Fc Filter hour-counter. Indicates number of filter operating hours.
This hour-counter is increased only if the fan is running.
0 30000 hours 0
EXAMPLE: resetting the filter hour-counter (“FC” parameter).
(press for
5 seconds)
0
uP
….
**
uP
2
3
.
9
°C
%rH
53
**: input the "USER" password contained in
the envelope enclosed with the manual.
FAn Prob ….
0
F9
….
1001
Fc
(press keys
1001
Fc
0
Fc
+
Simultaneously for at
least 5 seconds)
