INSTRUCTION MANUAL
UG30 CONTROL
22 (44)
mP30-UG30 - Rev. 1.5 - Date: 18-03-2004 EN

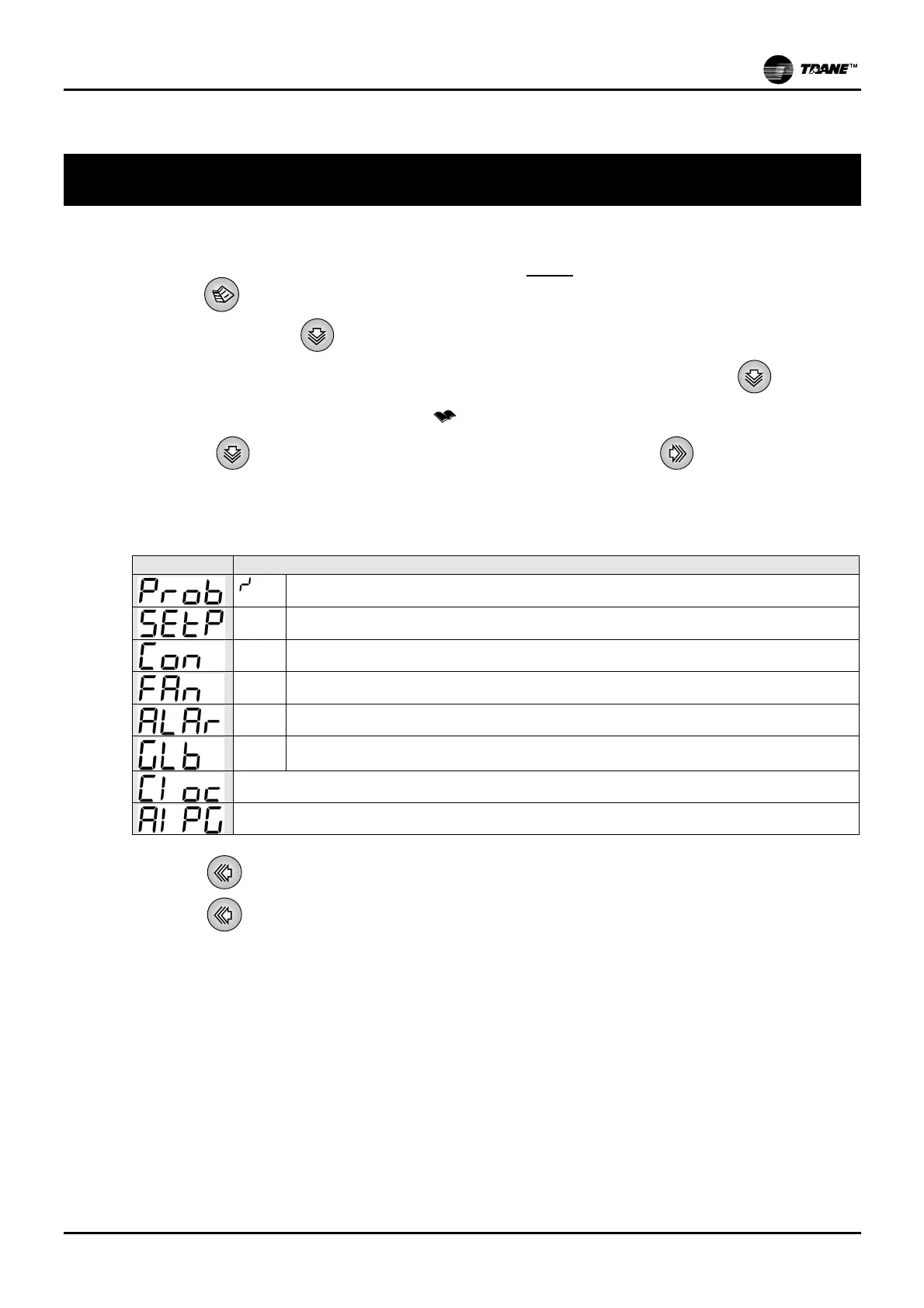

ACCESS TO PARAMETERS
WHEN CONSULTING OR PROGRAMMING
Control parameters are read and programmed on the control keyboard:
1. ACCESS IN READ ONLY MODE : data can be consulted but cannot
be changed;
1.a. press key
to go to the STATUS MASK.
1.b. repeatedly press key
to scroll the following menus in sequence: "Prob", "SetP", "Com", "FAn",
"ALAr", "GLb", "Cloc", "AlPG". The menus are presented cycle-wise: if you press key
again after
“AIPG”, you return to the “Prob” menu. The
symbol appears in the bottom left corner of the display.
1.c. press key
to access the first parameter of each menu and key to scroll through the
successive menus in sequence (see the masks flowchart in the APPENDIX ). The value of the parameter
is shown at the centre of the display, while the parameter code is shown at top right.
The parameters are grouped in menus as shown in the following table:
MENU PARAMETERS
sensor parameters
r
adjustment parameters (e.g. r1 = cooling set-point)
c
compressor management parameters
F
fan management parameters
P
alarm management parameters
H
general configuration parameters
clock function parameters
alarms historic record
1.d. press key
once to return to the initial menu selection mask (see point 1.b.).
1.a. press key
again to return to the STATUS MASK.
