Installation
CDUB-SVN001B-EN 19
Notes:
• R. Red wire for 24 V
olts direct current
• Bk. Black wire for ground
• Bl. Blue wire for IPC+ connection (not actually used by
Tr
acer AdaptiView but connect anyway)
• Gr. Gray wire for IPC- connection (not actually used by
Tr
acer AdaptiView but connect anyway)
3. Complete the power su
pp
ly connection to the display
using the Male to Female wire harness extension:
a. Connect the Male end of this cable
to the Female
connector on the cable installed in Step 2.
b. Route the cable harness through the wire channel
on the display ar
m and connect the Female end to
the Male receptacle on the display unit.
Important: Lea
ve e
nough slack in the cable to allow for
the display arm to be moved through its full
range of motion without placing a strain on
the cable or the terminal connections.

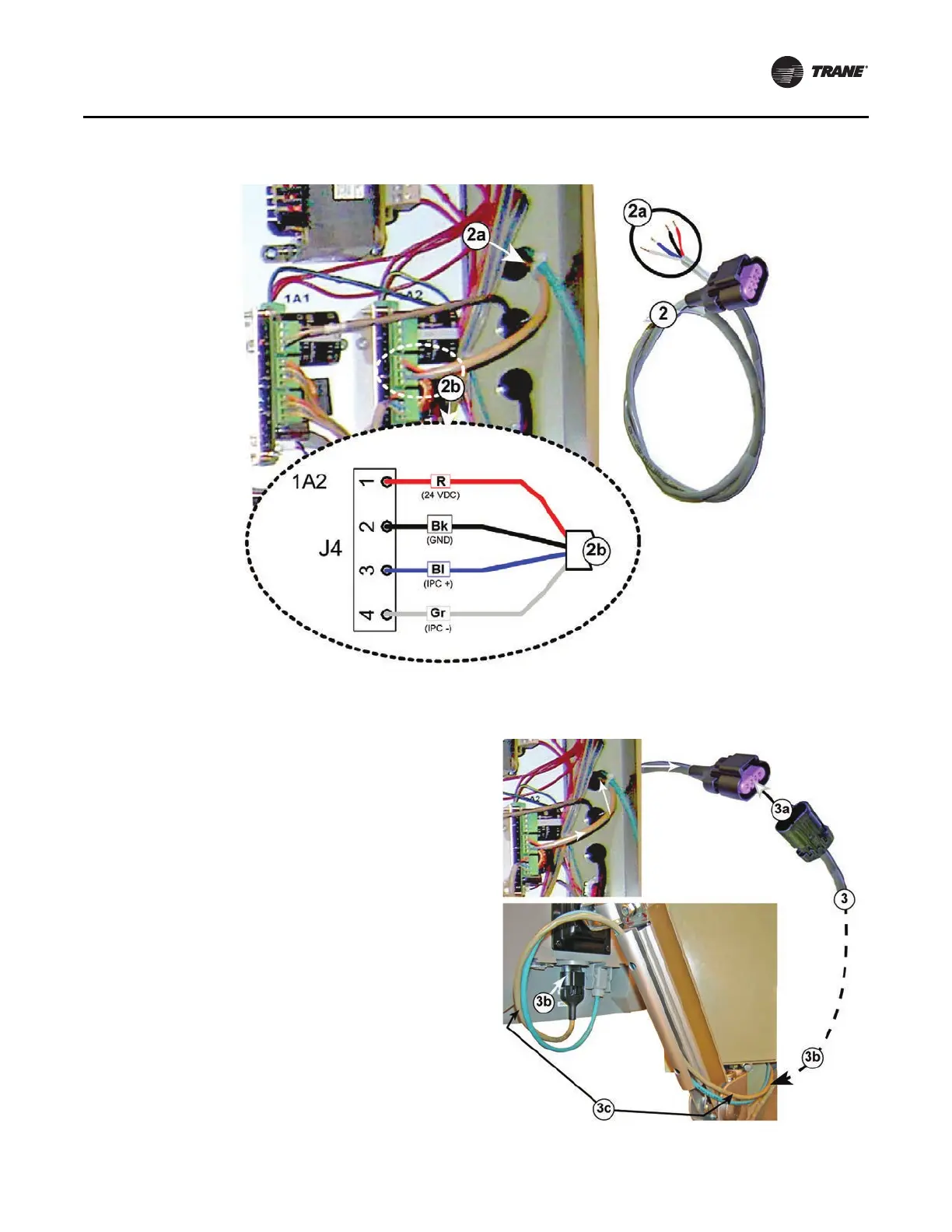

Figure 29. Female to bare end wire harness install from outside cabinet in to 1A2
Figure 30. Completion of power supply connection to
the display
To Next Page
