Programming
30 CDUB-SVN001B-EN
9. Once all LLIDs are bound, verify that the settings in the
Service Setpoints, Field Startup, and Purge tabs are
correct.
10. In Tracer TU, save a copy of the “Chiller Service
Report”.
a. From the “Reports” drop-down menu, select and
open “Chiller
Service Report” (see the below
figure).
b. Save a copy of “Chiller Service Report” as a
Microsoft
®
Word document in the folder that was
created in “My Documents”.
11. Save the current chiller configuration in the existing
firmware version in the Symbio 800.
Note: This step produces backup configuration data
in the case the
Symbio 800 configuration
becomes corrupt.
a. Access the “Equipment Utilities” section of Tracer
TU by clicking the wrench symbol on
the right-
hand side of the screen.
b. Click the “Configuration” tab (see the below
figure).
c. At the bottom of the screen, click the “Save File”
bu
tton (not shown in below figure).
d. In the “Browse for Folder” window, click “Ma
k
e
New Folder”.
A folder will be created with the name “New
Folder”; this ca
n be renamed later. The path to the
folder will be:
C:\Programs\Trane\Tracer
TU\Program\Plugins\UCDataBaseDAL\New Folder
e. Select the “New Folder” file.
f. Click the “OK” button.
The chiller configuration file will now be saved in the
“
N
ew Folder”.

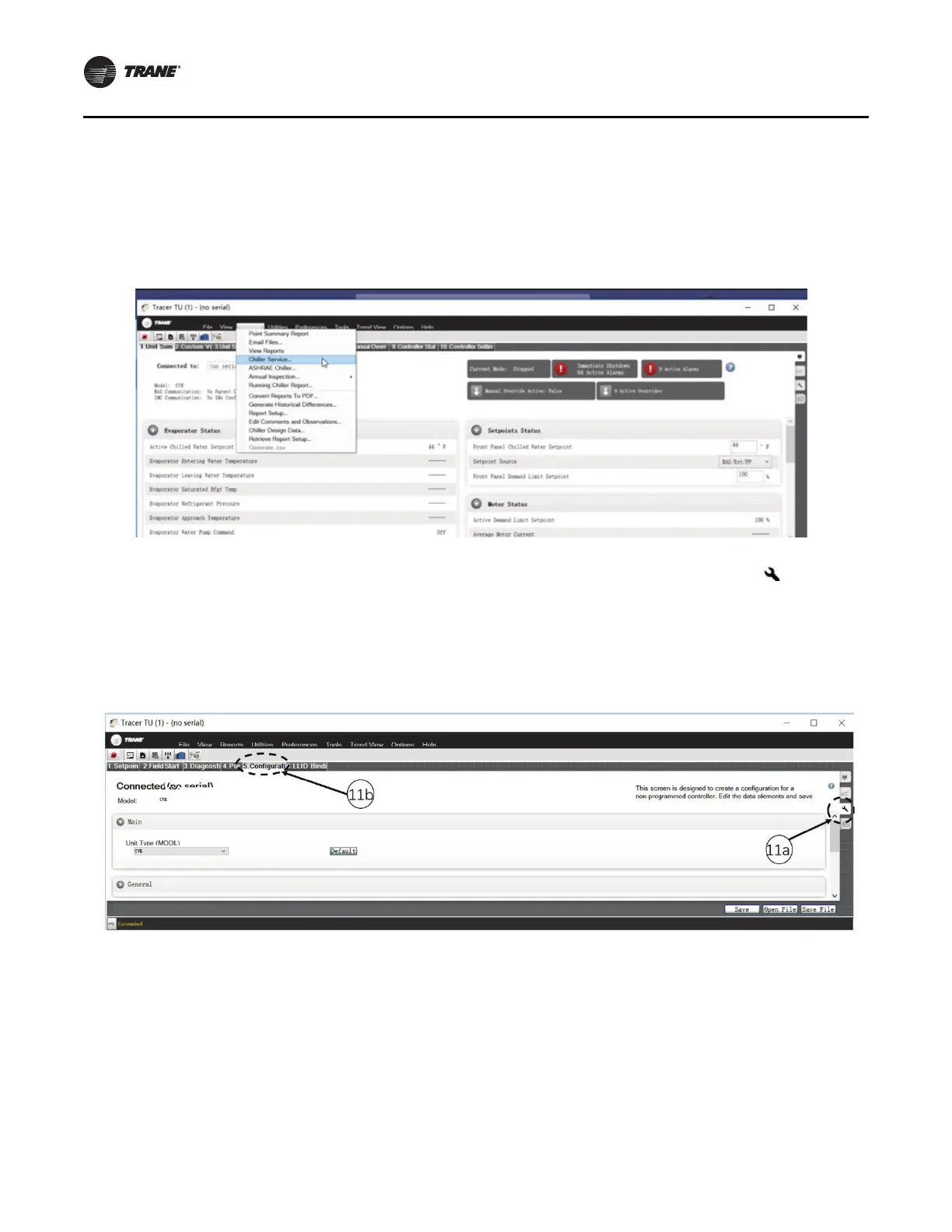

Figure 65. Chiller service report (Tracer TU)
Figure 66. Chiller configuration (Tracer TU, simplex chiller shown)
