Programming
CDUB-SVN001B-EN 29
5. Follow the instructions below while also referring to
Figure 62, p. 29 and Figure 63, p. 29:
a. Click the “Equipment Utility” tab (the wrench
sy
mbol
on the right-hand side of the screen).
b. Click the “4. Configuration” tab.
c. Click the “Open File” button on the bottom of the
“4. Con
fig
uration” screen.
d. Browse to the location of the Chiller Service Report
file save
d from the Dy
naView display at the start of
upgrade kit installation, highlight it, and then click
“Open”.
6. After completing all of Step 5, Tracer TU’s “4.
Con
fig
uration” tab screen should now be populated
with the values from the Chiller Service Report.
7. Verify the configuration and then click “Save”.
Clicking “Save” sends the values from this Chiller
Service Report directly to the Symbio 800 controller.
8. After the configuration is save
d, Tracer TU will
automatically proceed to LLID Binding view. Check to
see if any of the listed devices need to be bound,
indicated by a red box. If the quad relay LLID was
installed, it will have to be bound now.

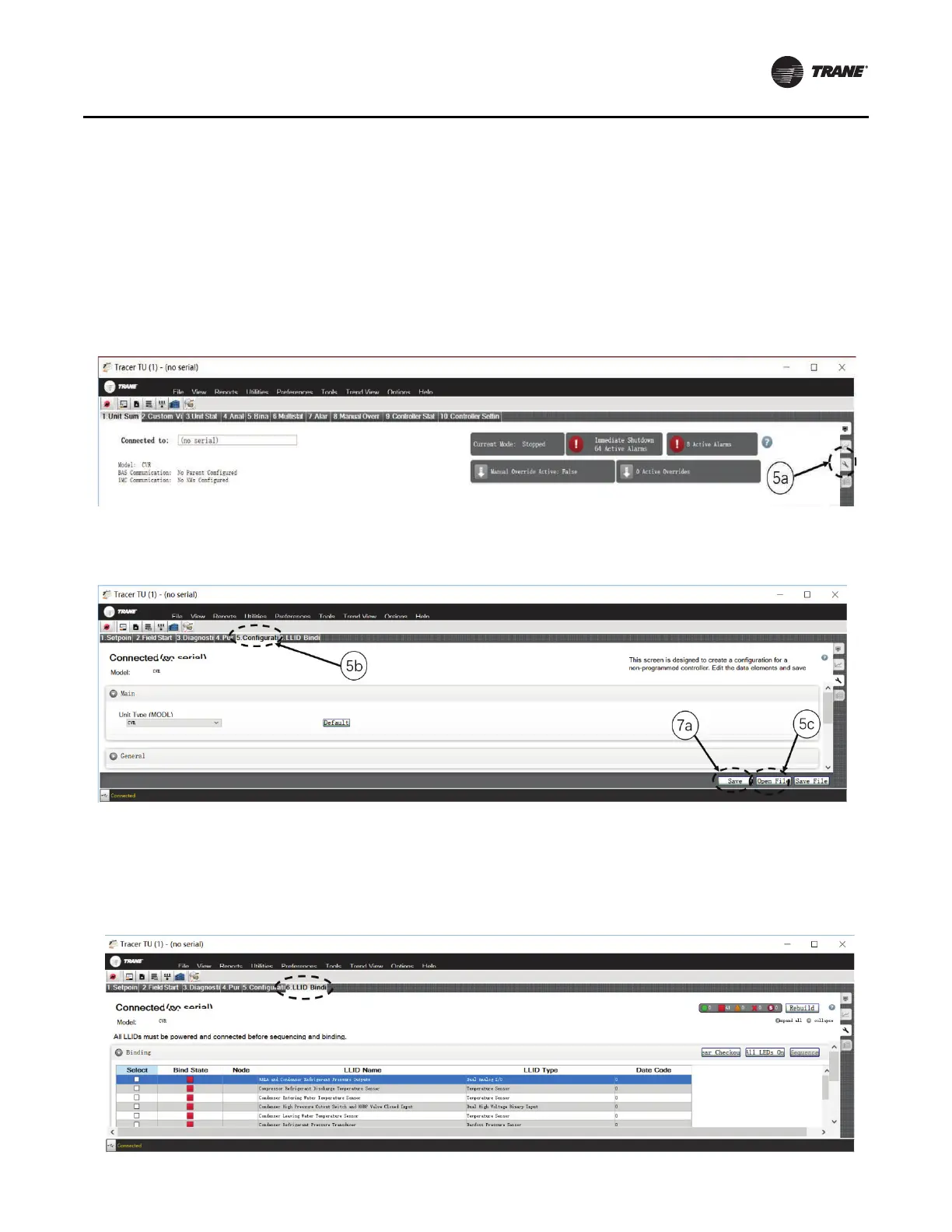

Figure 62. Navigating within
t
he equipment utility configuration tab in Tracer TU
Figure 63. Location of the equipment utility tab in Tracer TU
Figure 64. Binding view of quad relay LLID
