Wiring Diagrams
CDUB-SVN001B-EN 33

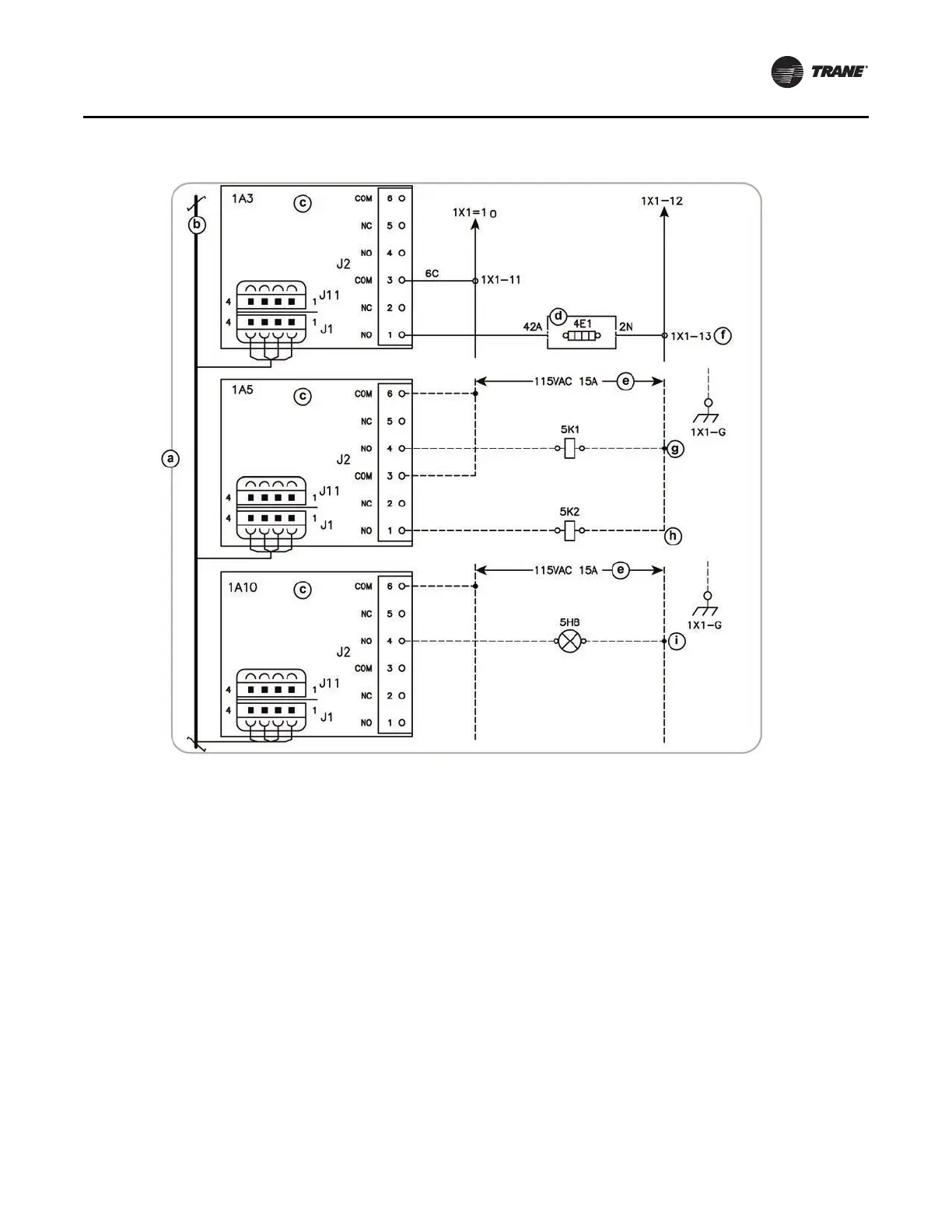

Notes:
•a - All notes and hazard notifications listed in “Wiring
Diagrams,” p. 32 of this manual apply to this drawing
•b - IPC BUS
•c
- Dual relay LLID to remove (its functions will be
replaced by the Quad Relay)
•d - Oil tank junction box
•e - Customer provided
•f
- Oil tank heater
•g - Evaporator water pump (optional)
•h
- Condenser water pump (required)
•i - Ice building indicator (optional)
Figure 67
. Existing LLIDs to remove before installing quad relay LLID
