20
22.10.2021
TNX65/42
Preparing to transport a machine without milling unit

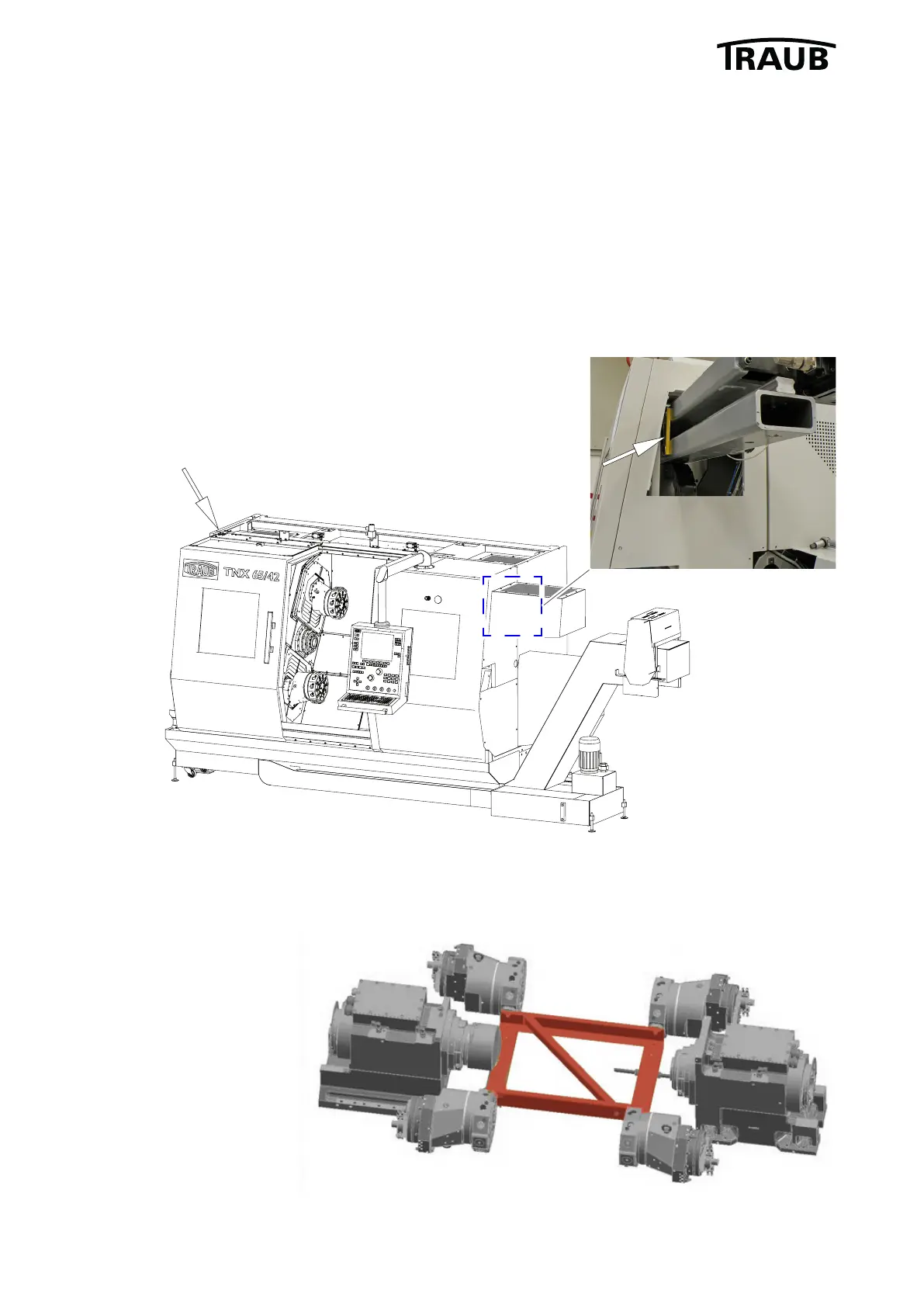

Attach transport retainers to the machine
The transport retainers are located on the:
• control console
• tool carrier and opposed spindle
• sliding door
• workpiece handling with remnant removal device
Transport retainers for
working area door
Workpiece handling with
remnant removal device
Tool carrier and opposed spindle
