TNX65/42
Transporting the machine

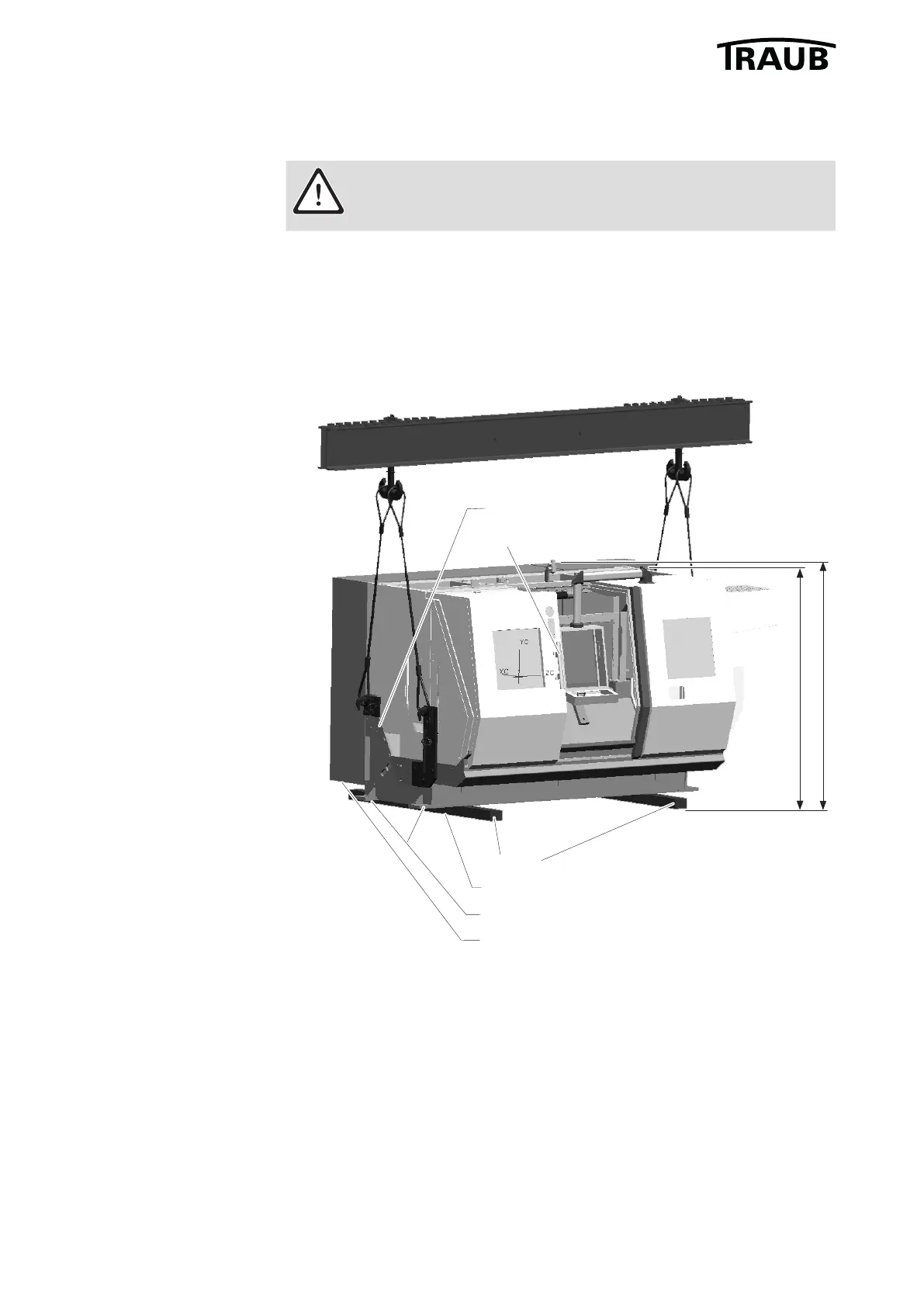

View of the machine in transport condition
Plank
Carriage bolts M16x260 with nut
Plate for attaching the hydraulic jack
Wheels on control cabinet raised
Retaining plate
Remove handle
2290
2340
Transport by crane (min. load capacity 12 t)
Danger due to falling machine / parts
Ensure there is no-one underneath the suspended load!
The machine must not be lifted via the control cabinet!
