45
10.2016
TNX65/42
Installation of the milling unit components
Installation of the tool chain and chain magazine (only with
optional 120 positions)

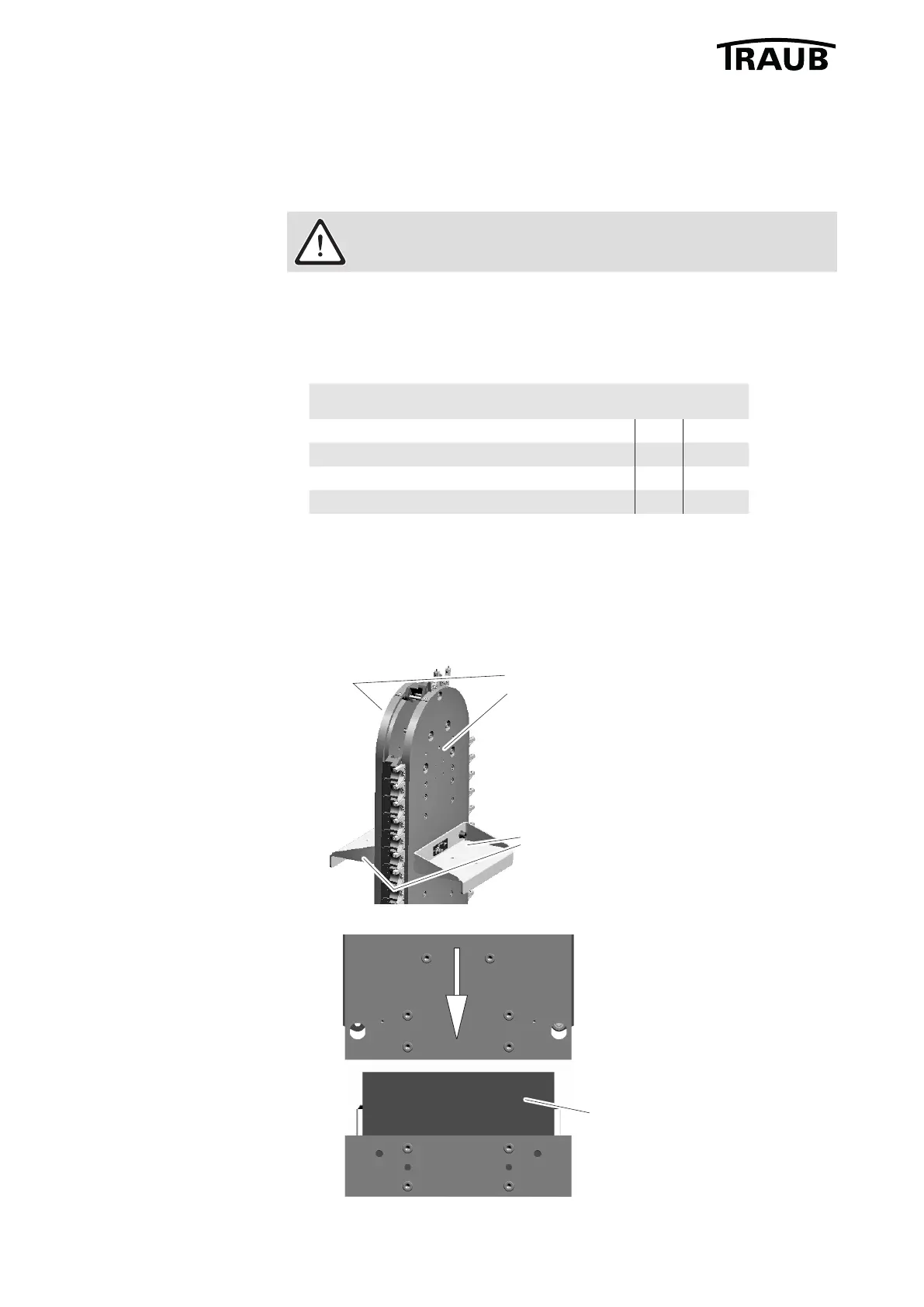

Install upper part of chain magazine
Danger due to falling parts
Ensure there is no-one underneath the suspended load!
• Lift the upper part of the chain magazine with the aid of eyebolts and a
crane.
A suitable fork lift truck can also be used instead of a crane. In this case,
two brackets must be screwed onto the M12 threads provided for this
purpose (the brackets Art. No. 095662 are available on loan from TRAUB).
Requirements to be met by a fork lift truck
Min. lifting height mm 3500
Min. fork length mm 1000
Max. fork width mm 150
Forks adjustable to a minimum distance of mm 114
• Carefully lower the upper part of the chain magazine over the connecting
plate in the bottom part of the chain magazine.
• Remove the eyebolts or brackets Art. No. 095662.
Connecting plate
Attach brackets Art. No. 095662 for
installation with a fork lift truck
Attach eyebolts for installation with a crane
