TNX65/42
Preparing to transport a machine with milling unit
Remove upper part of chain magazine
Danger due to falling parts
Ensure there is no-one underneath the suspended load!

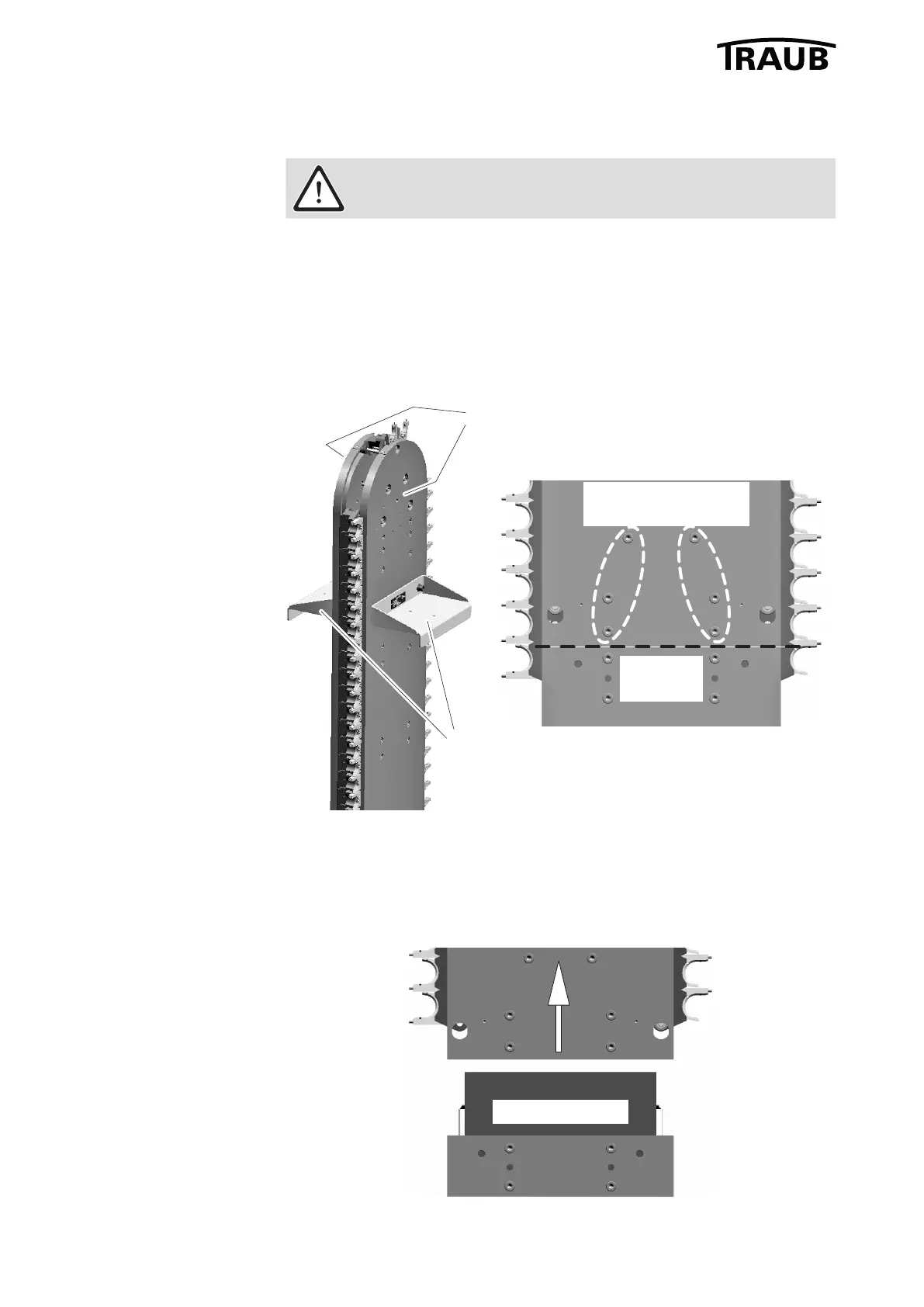

• Before starting, secure the upper part of the chain magazine with the aid of
eyebolts and a crane.
A suitable fork lift truck can also be used instead of a crane. In this case,
two brackets must be screwed onto the M12 threads provided for this
purpose (the brackets Art. No. 095662 are available on loan from TRAUB).
• Take out the six screws on each side of the chain magazine.
Connecting plate
• Lift the upper part of the chain magazine off with the aid of eyebolts and a
crane or the brackets Art. No. 095622 and a fork lift truck. Place the chain
magazine on a suitable conveyance after being removed. The connecting
plate remains attached to the bottom part.
Separating
point
Remove the six screws
on each side
Attach brackets Art. No. 095662 for
installation / removal with a fork lift truck
Attach eyebolts for installation /
removal with a crane
