TNX65/42
Installing the machine
Control cabinet
Machine
Wheels

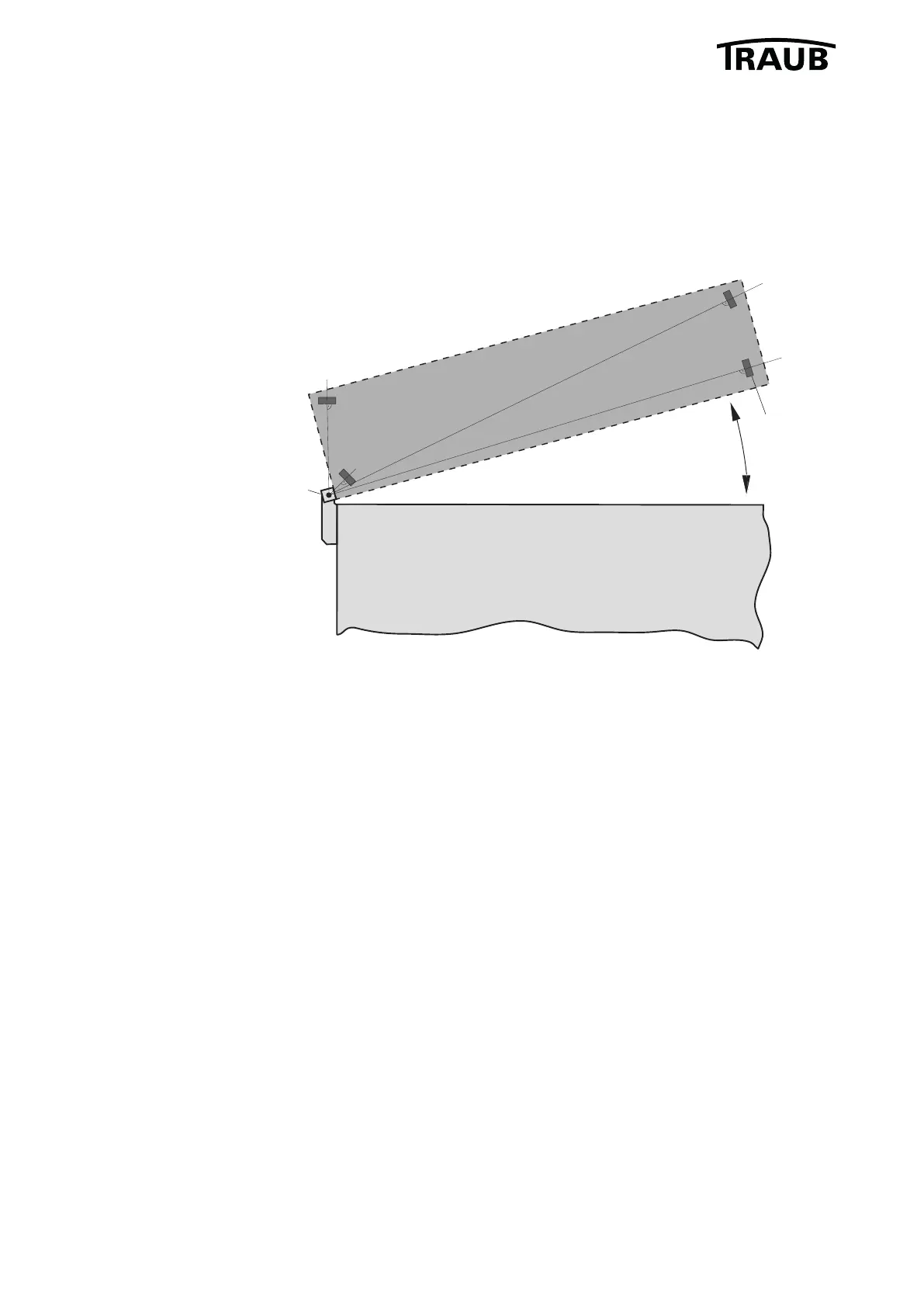

Aligning the wheels on the control cabinet
• Raise the control cabinet with the aid of the four wheels until it lifts off the
two bearing points on the machine bed. Ensure that the wheels are at right
angles to the pivot point and secure the wheels with locknuts.
• The control cabinet can now be swivelled to the rear.
Indicator lamp
Connect the indicator lamp on the machine if removed for transport.
