TNX65/42
Alignment, component installation and commissioning
Secure machine to the floor
The machine can be secured to the floor if necessary. The following parts are
enclosed with the accessories for this purpose:
• 2 retaining brackets, Article No. 469193
• 2 rings, Article No. 687403
• 2 dowel pins, Article No. 318181
• Screw the two retaining brackets (Article No. 469193) to the right and left-
hand sides of the bottom box. The brackets must lie squarely on the
foundations.
• Using a dia. 18 mm stone drill, drill a hole 110 mm deep through each of the
retaining brackets.
• Fit the ring (Article No. 687403) under the screw head of the dowel pin and
insert the dowel pin (Article No. 318181) in the hole. The machine is
anchored to the foundations by tightening down the hex bolt with the
specified torque (approx. 80 Nm).

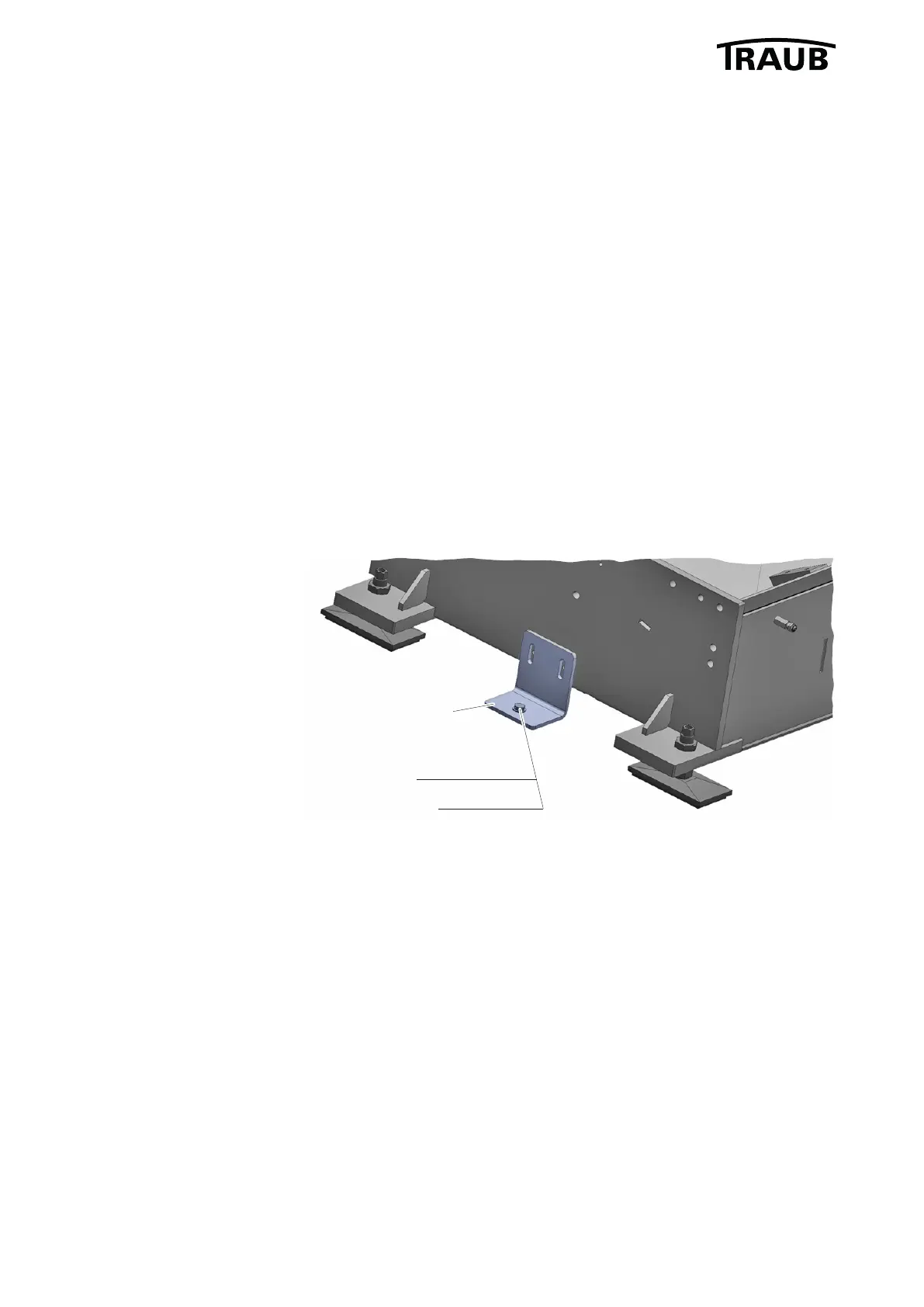

469193 Bracket
318181 Dowel pin
687403 Ring
Bottom box
