Traub TNX65 - TNX 65;42 Centres of Gravity (Machine with Control Cabinet)

32
10.2016
TNX65/42

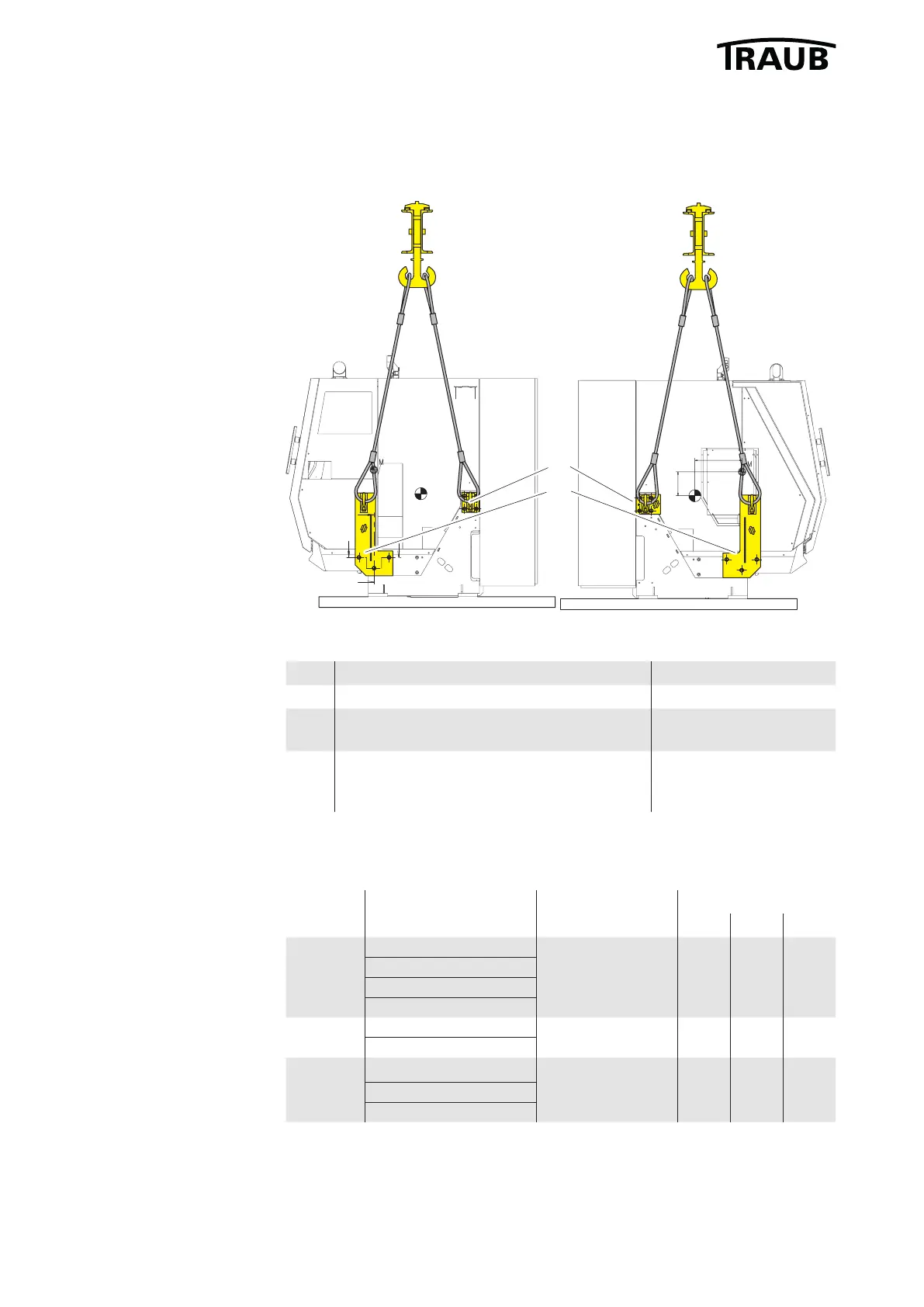

Transporting the machine
X
Y
083435_c
083435_c.eps
A
B B
A
083435_b
Side views
b
c
083435_b.eps
Item Designation Article No.
a 4x Sling rope, L=2130 mm 083414
b Attachment hook
(8x hex head screw M20x40 10.9 DIN933)
083429 left
083427 right
c Screw-on bracket
(6x hex head screw M20x100 10.9 DIN933)
(6x lock washer A 20 DIN 126)
083437 left
083436 right
TNX 65/42 Centres of gravity (machine with control cabinet)
Version Tool carrier Overall weight
Centre of gravity
X Y Z
1
1 top left
9.760 t 440 -222 551
2 bottom right
3 top right
4 bottom left
2
1 top left
8.326 t 4 6 7.5 -233 568
2 bottom right
3
1 top left
9.041 t 436 -255 501
2 bottom right
4 bottom left
