Installing the machine

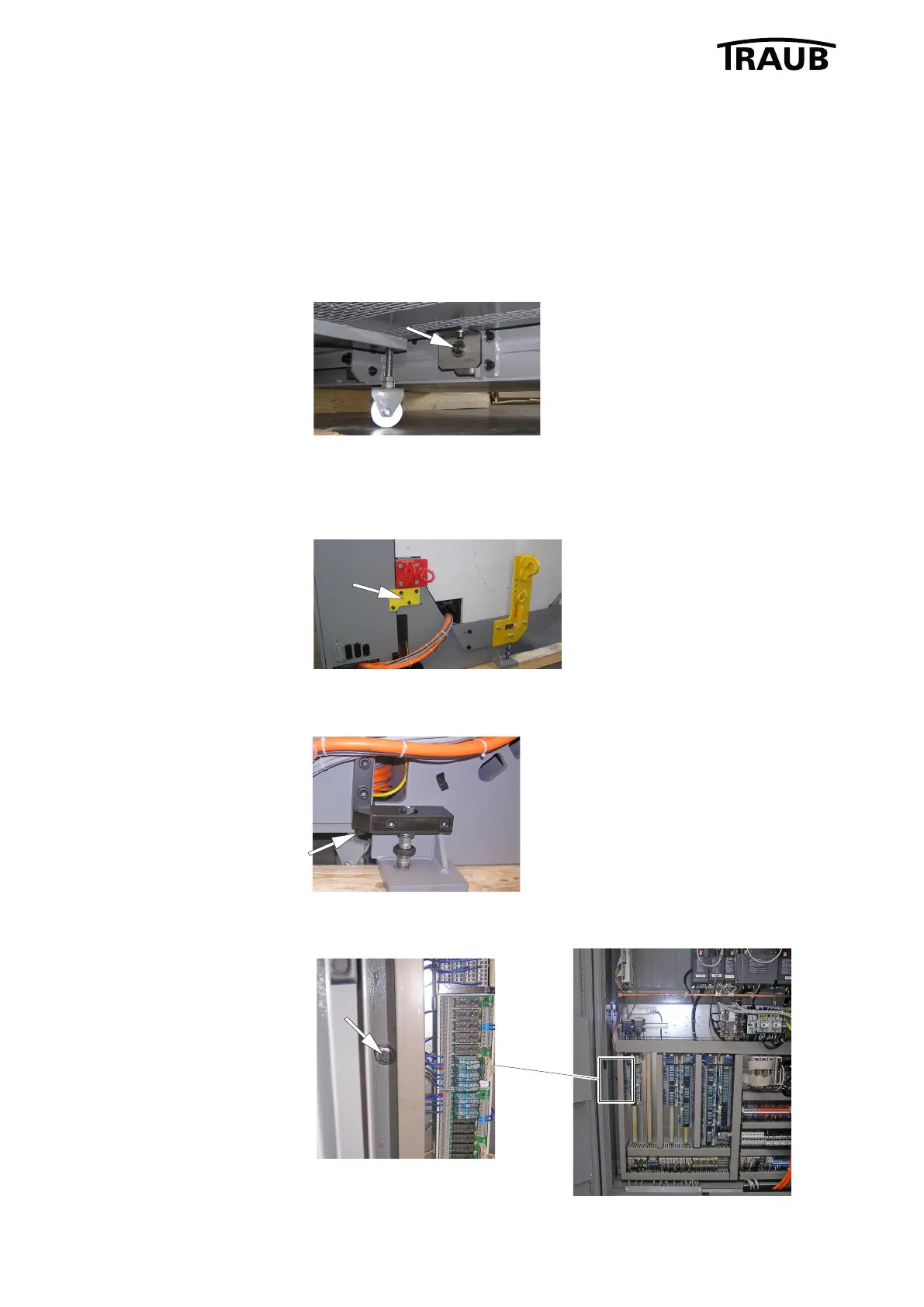

Set up control cabinet on wheels
• Lightly position the four wheels to support the control cabinet on the
ground.
Remove transport retainers from the control cabinet
• Take out the fixing screw in the control cabinet.
• Unscrew the M12 cheese head screw at the turning point of the control
cabinet.
• Remove the locking plate on the machine bed / control cabinet.
(The locking plate must be retained by the customer in case the machine
has to be transported again).
• Unscrew the retaining bracket underneath the control cabinet from the
machine bed. The bracket remains connected to the control cabinet as a
limit stop.
