Traub TNX65 - Installation and Layout Diagrams Installation and Layout Diagrams; Foundation Diagram

9
10.2016
TNX65/42
Installation and layout diagrams
A1
A2
A3
A4
1095
3003110
240
915
1400
3650
X
1:10
430
3580
480
550
500
3690
400
1325
X
180
180
480

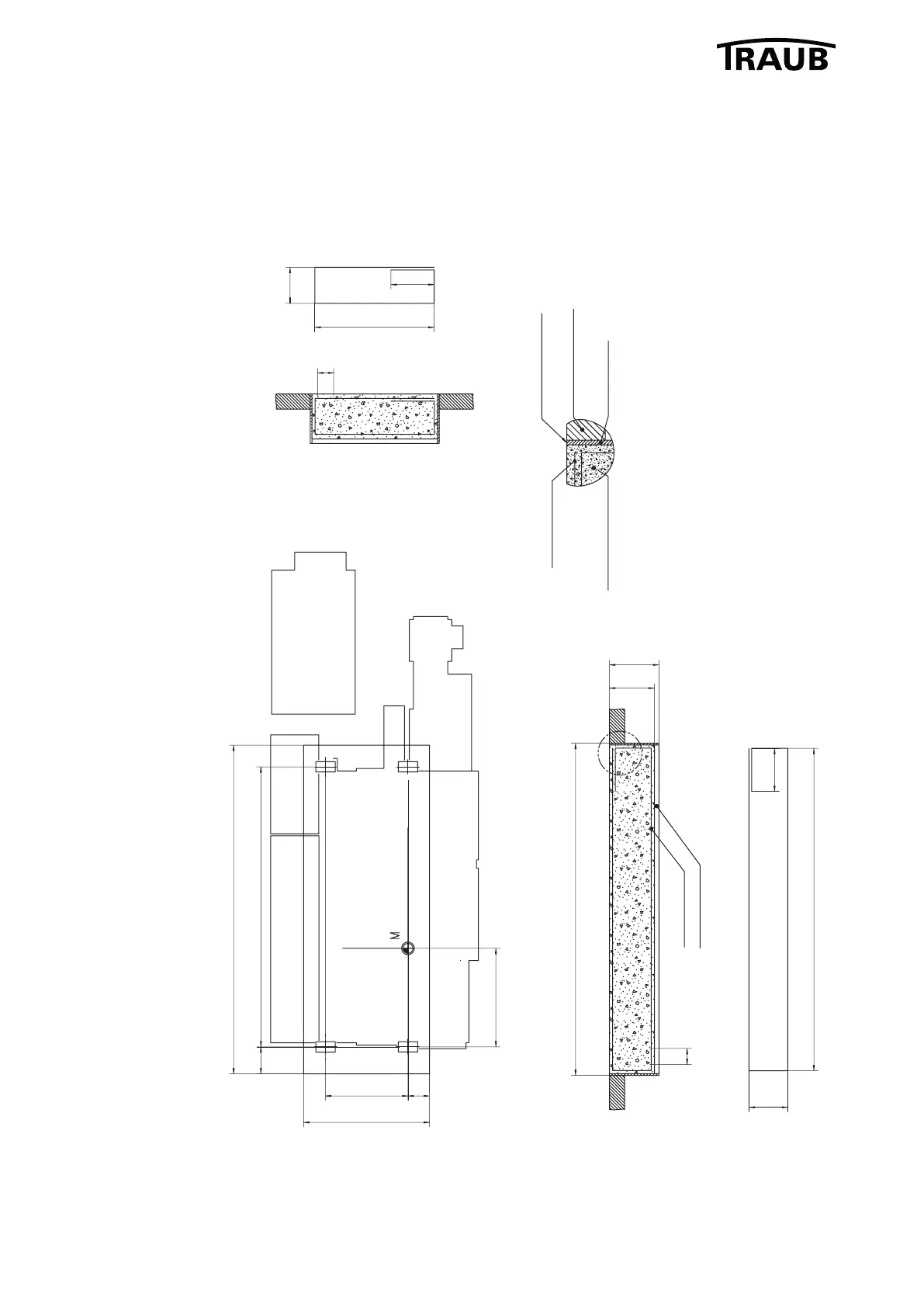

Foundation diagram
Drawing No. 478504
Machine foundation, cross-section
L= 8 470 Number 8
Gap must be sealed to prevent ingress of oil and lubricants
Hall floor flush with machine foundation
Soft-fibre board, Styrodur or similar
Reinforcing bar BSt. IIIK- dia.12 mm
Machine foundation, concrete grade B25
Reinforcing bar
Machine foundation, longitudinal section
L=8470; Number 8
Granular sub-base
