TNX65/42
Alignment, component installation and commissioning
Check / correct with tool carrier 2
• Move tool carrier to the limit position Z+.

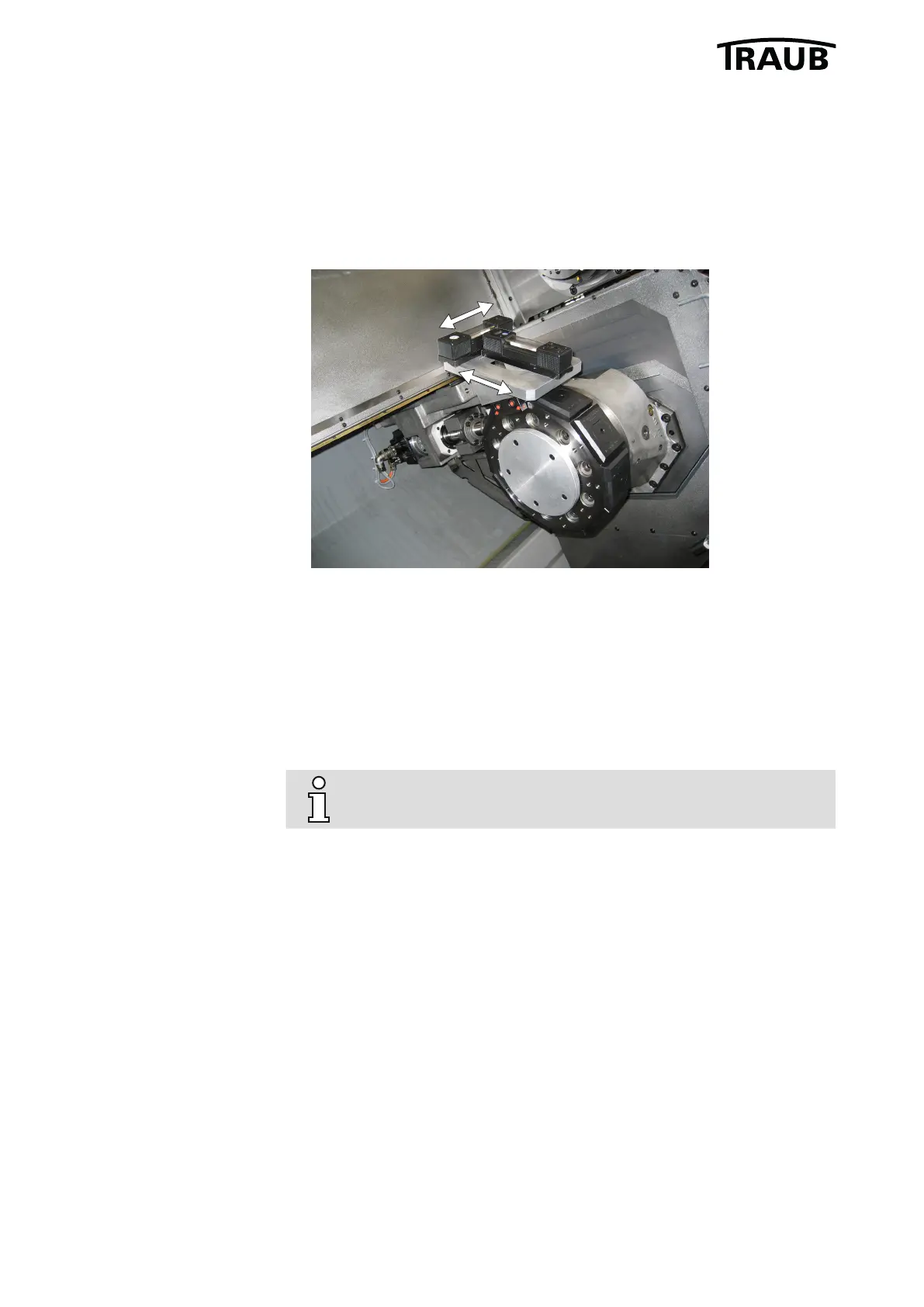

• Mount the invariable fixture in position 1 of the turret on tool carrier 2.
• Place two spirit levels on the fixture, one in Z-direction and one in
X-direction.
XX
ZZ
• Advance in Z-direction to check the machine and uniformly adjust the right
or left feet to re-align it if necessary. The deviation must not exceed
0.01 mm over the entire distance travelled.
• Move to the limit position Z- to check the machine’s torsion. The deviation
must not exceed 0.01 mm over the entire distance travelled. If this is not
the case, the machine must be re-aligned by adjusting the appropriate outer
foot.
• Secure the adjusting screws of the feet with the locknuts.
Switch off the control system, disconnect the machine from the
power supply and secure it so that it cannot be reactivated.
