6
INSTALLING THE CONTROL CENTER (MECHANICAL)

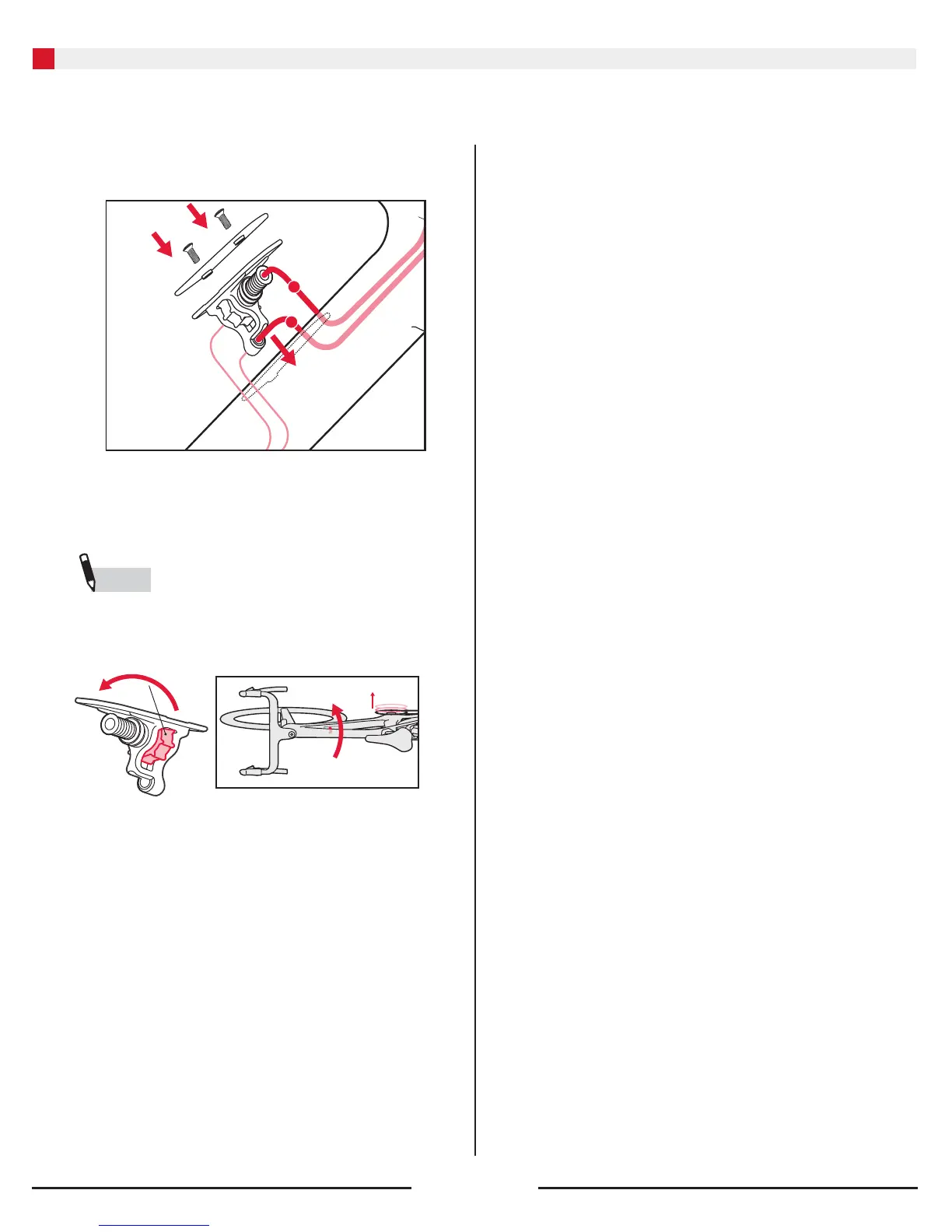

14. Install the junction box and the cover,
then tighten the attachment bolts.
FD
RD
15. Rotate the adjustment knob toward the non-drive
side, threading the adjustment bolt in until it
stops turning.
NOTE
To fine-tune the front derailleur by moving the
derailleur outward, rotate the adjustment knob
toward the drive side.
19
