TRENDnet TEW-831DR User Manual

© Copyright 2020 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TEW-831DR
7

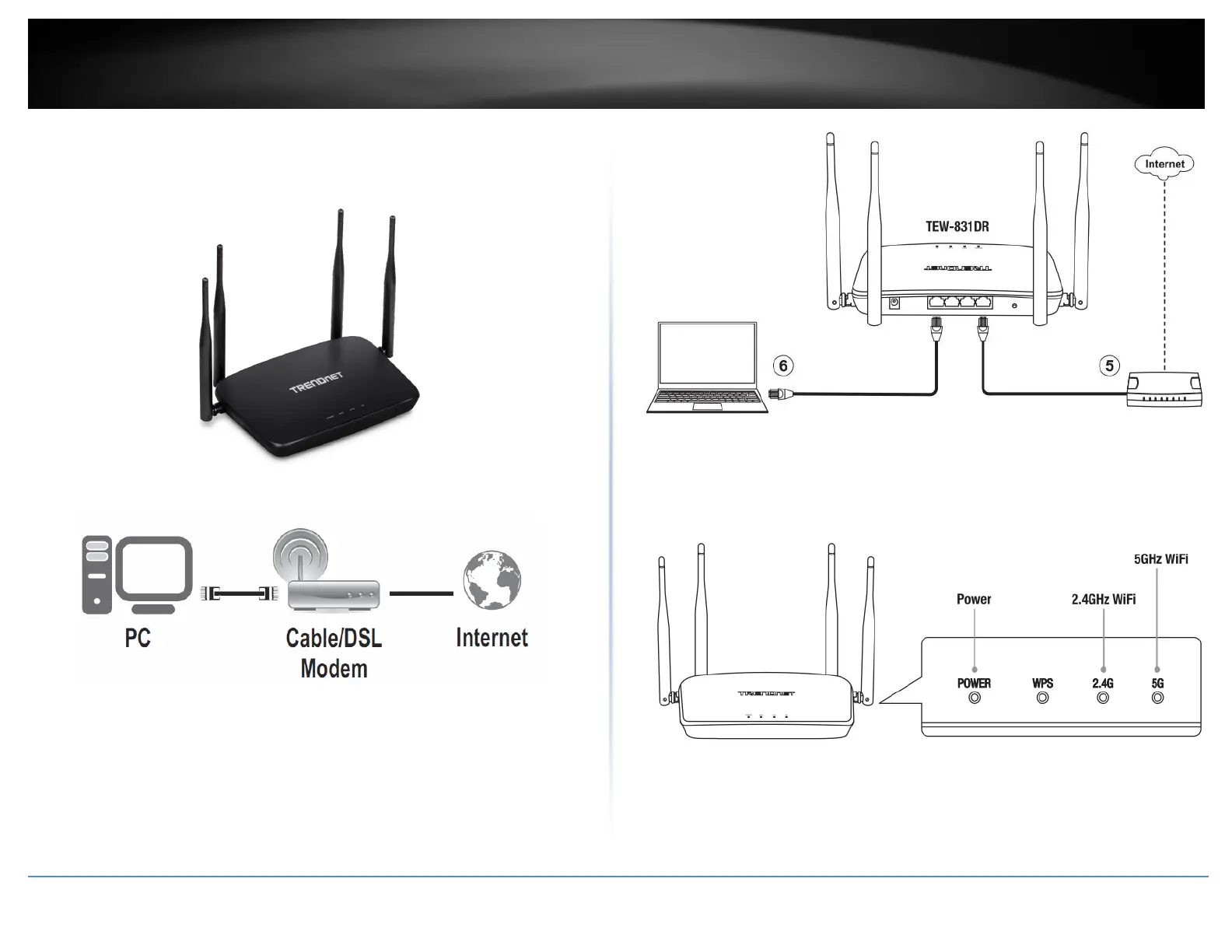

Hardware Installation
1. Position the antennas for the best WiFi coverage. It is recommended that you
position all of the antennas vertically as shown below.
2. Verify that you have an Internet connection when connecting your computer directly
to your modem.
3. Turn off your modem.
4. Disconnect the Network cable from your computer to your modem.
Note: If your modem includes a battery backup, remove the battery backup as well.
5. Connect your modem to the router WAN port
6. Connect your computer to one of the router LAN ports
7. Connect the power adapter to the router and then to a power outlet.
8. Turn on your modem.
9. Verify that the blue LEDs on the front of the router (Power, 2.4G, 5G) are on.

TRENDnet TEW-831DR Specifications

General

Product color	Black
Cables included	LAN (RJ-45)
Quick installation guide	Yes
Certification	FCC, IC
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90 %
Output current	1 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
DSL WAN	No
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1200 Mbit/s
VPN support	FTP/TFTP/SIP/RTSP/IRC/H.323
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Receiver sensitivity	802.11a: -75 dBm @ 54Mbps 802.11b: -90 dBm @ 11Mbps 802.11g: -72 dBm @ 54Mbps 802.11n (2.4GHz): -72 dBm @ 300Mbps 802.11n (5GHz): -72 dBm @ 867Mbps 802.11ac: -61 dBm @ 867Mbps
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Antennas quantity	4
Antenna gain level (max)	5 dBi
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2
Number of products included	1 pc(s)
Ethernet LAN (RJ-45) ports	3

Weight and Dimensions

Depth	239 mm
Width	155 mm
Height	30 mm
Weight	228 g
