TRENDnet TEW-831DR User Manual

© Copyright 2020 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TEW-831DR
8

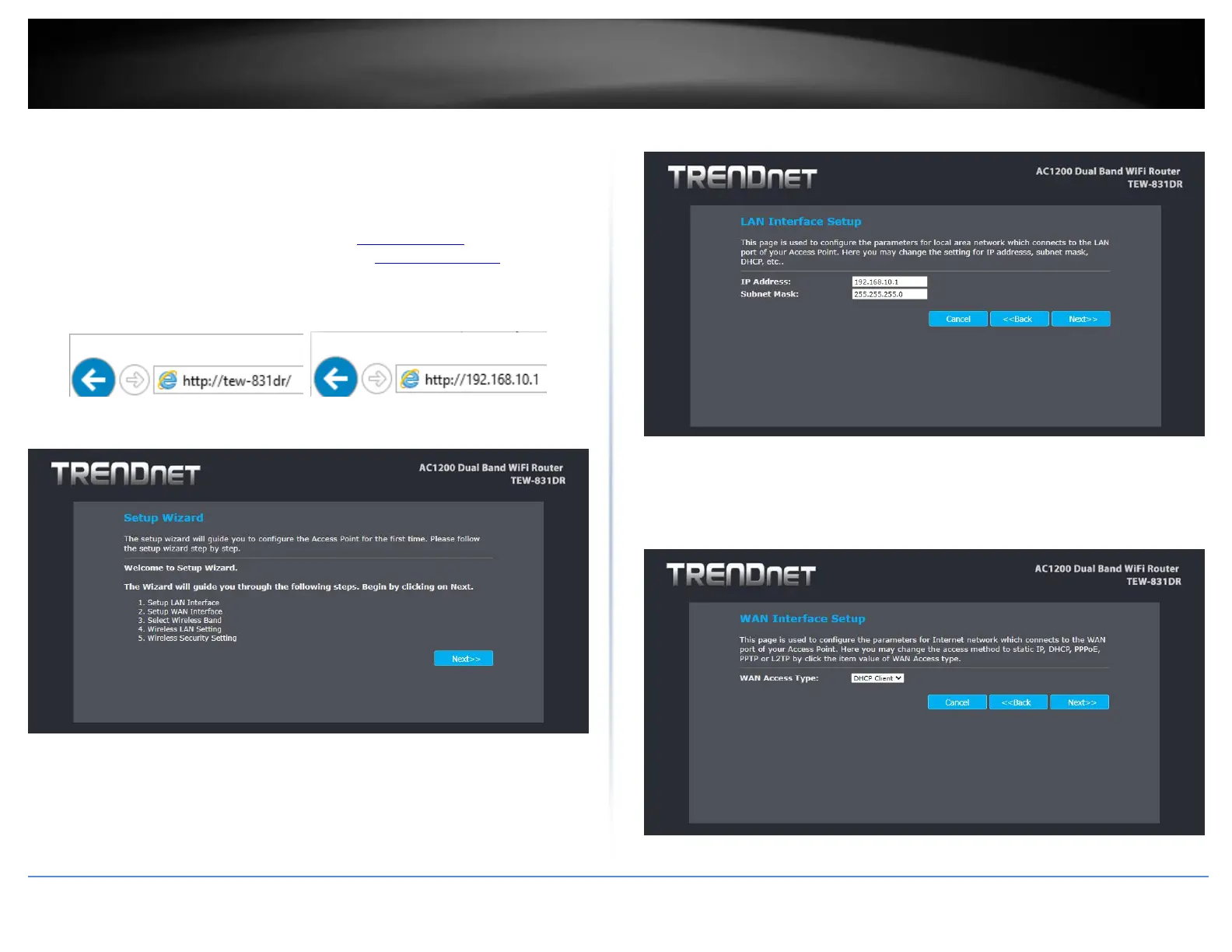

Setup Wizard
1. Open your web browser (e.g. Internet Explorer, Firefox, Safari, Chrome, or Opera) and
the wizard will automatically appear.
Note: If you have already configured your router before, the wizard will no longer
appear automatically. In your web browser, go to http://tew-831dr or you can access
the router management using the default IP address http://192.168.10.1. Your router
will prompt you for a user name and password. Enter your user name and password
and click Advanced > Setup > Wizard.
2. Read the prompt, then click Next.
3. Set the LAN IP address and Subnet mask and then click Next.
4. Select your WAN interface connection from the dropdown and fill out the required
information then click Next.
Note: Dynamic IP (DHCP) is typical for most Internet services. You can verify your
settings with your Internet Service Provider.

TRENDnet TEW-831DR Specifications

General

Product color	Black
Cables included	LAN (RJ-45)
Quick installation guide	Yes
Certification	FCC, IC
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90 %
Output current	1 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
DSL WAN	No
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1200 Mbit/s
VPN support	FTP/TFTP/SIP/RTSP/IRC/H.323
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Receiver sensitivity	802.11a: -75 dBm @ 54Mbps 802.11b: -90 dBm @ 11Mbps 802.11g: -72 dBm @ 54Mbps 802.11n (2.4GHz): -72 dBm @ 300Mbps 802.11n (5GHz): -72 dBm @ 867Mbps 802.11ac: -61 dBm @ 867Mbps
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Antennas quantity	4
Antenna gain level (max)	5 dBi
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2
Number of products included	1 pc(s)
Ethernet LAN (RJ-45) ports	3

Weight and Dimensions

Depth	239 mm
Width	155 mm
Height	30 mm
Weight	228 g
