General Information and Operating Instructions
PUSHBACK TRACTOR CHALLENGER550
Page 28
1-2
Jan 28/19

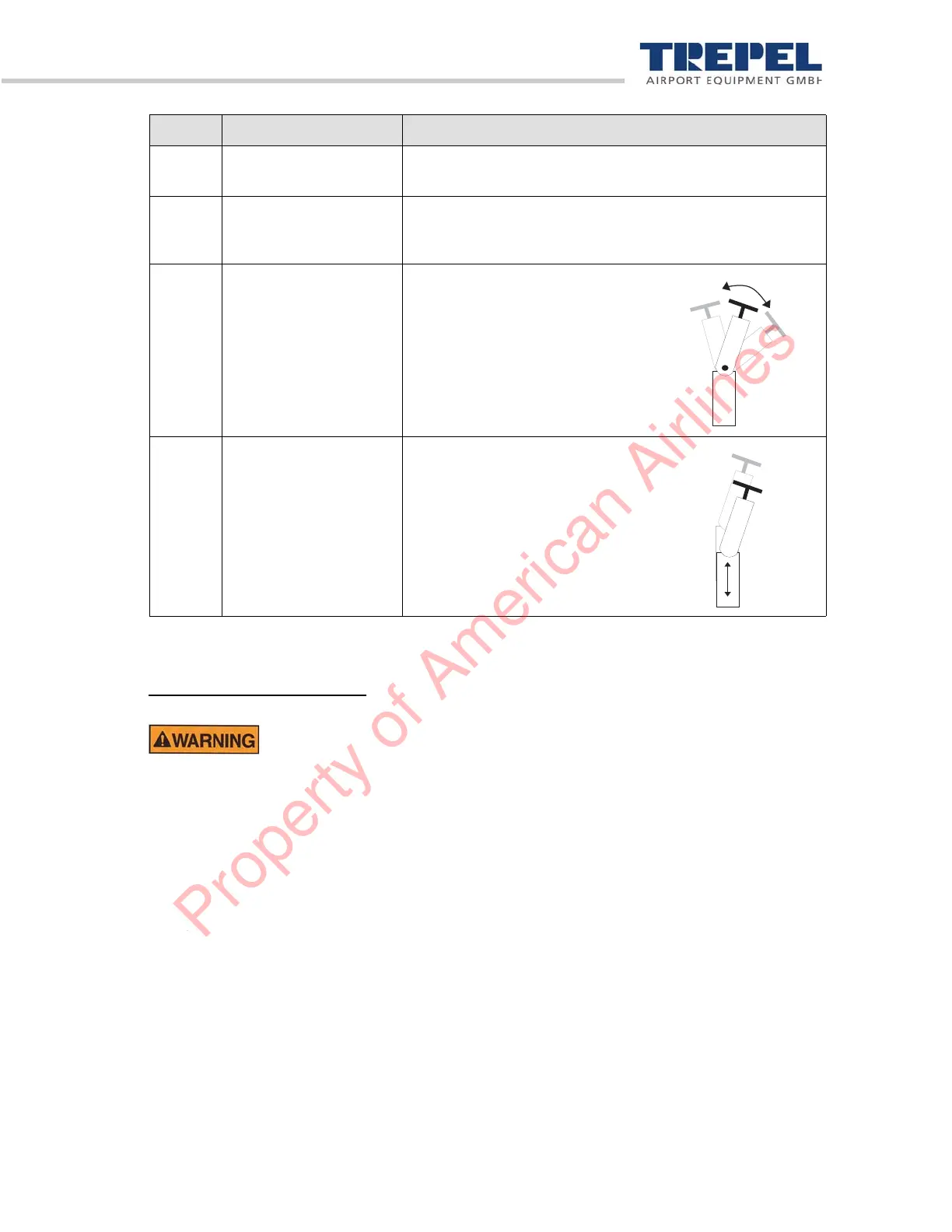

Table 3: Steering wheel adjustment
Adjusting the outside mirrors
Adjustments while driving!
Adjusting the outside mirrors while driving may cause the driver to lose control and result in serious
accidents.
Persons can be seriously injured or even killed because of accidents.
Never adjust the outside mirrors while driving.
The outside mirrors are adjusted manually.
(1)
Adjust the outside mirrors so that there is a clear view of the CHALLENGER550's rearward
areas.
Figure Designation Description
1 Adjustment lever Release the steering wheel adjustment by pressing the
lever.
VLocking
Steering wheel
adjustment
After adjusting the steering wheel, the steering wheel
adjustment needs to be locked.
N Tilt adjustment Tilting adjustment unlocked
(manual adjustment)
H Height adjustment Height adjustment unlocked
(manual adjustment)
