TREPEL CHALLENGER550 - Steering Wheel Adjustment

Page 77
1-1
General Information and Operating Instructions
PUSHBACK TRACTOR CHALLENGER550
Jan 28/19
Steering wheel adjustment
Release the tilting and/or height adjustment of the steering wheel by unlocking the adjustment lever.

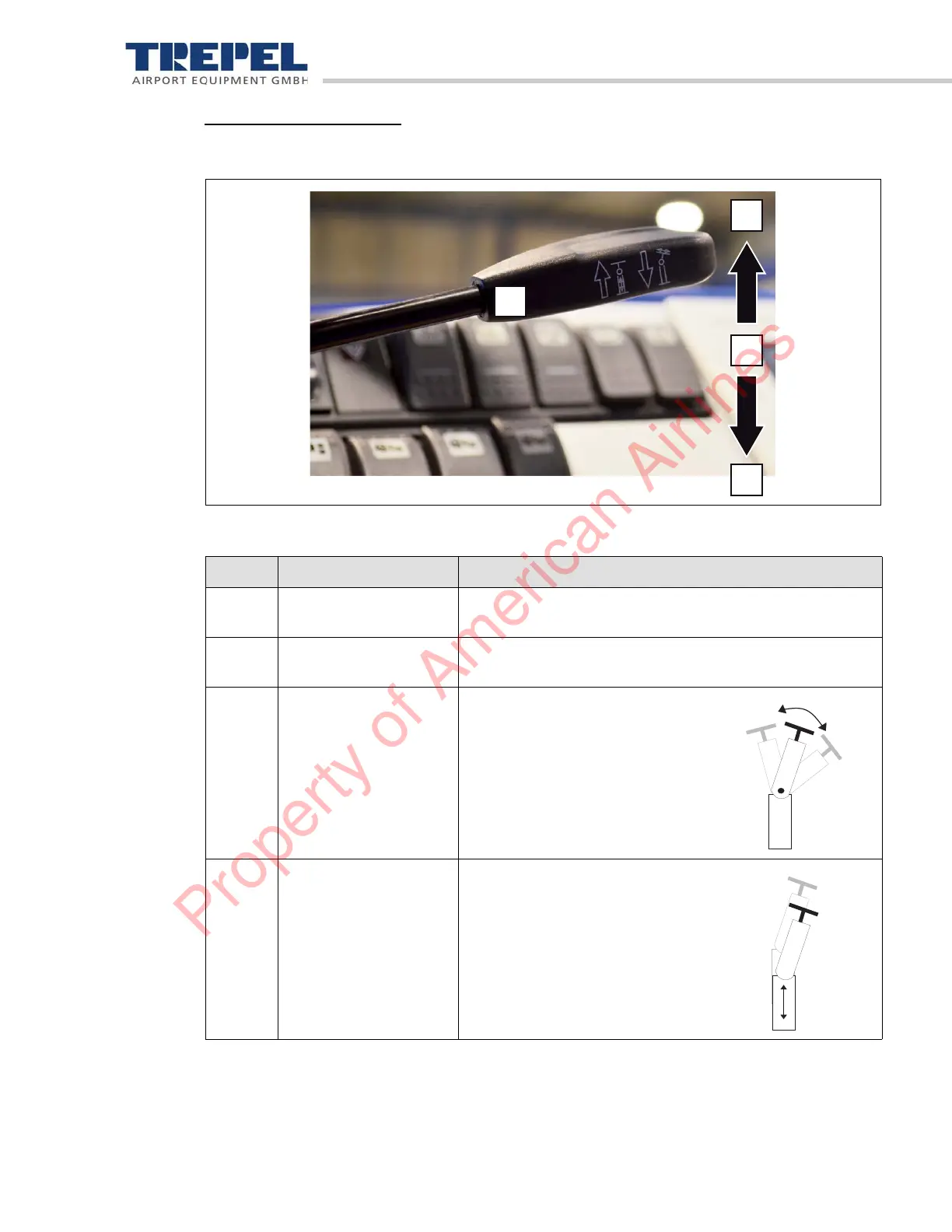

Figure 36: Steering wheel adjustment
Table 16: Steering wheel adjustment
Figure Designation Description
1 Adjustment lever Release the steering wheel adjustment by pressing the
lever.
V Locking steering wheel
adjustment
After adjusting the steering wheel, the steering wheel
adjustment needs to be locked.
N Tilt adjustment Unlocked tilt adjustment (setting by
hand)
H Height adjustment Unlocked height adjustment (setting
by hand)
1
H
N
V
