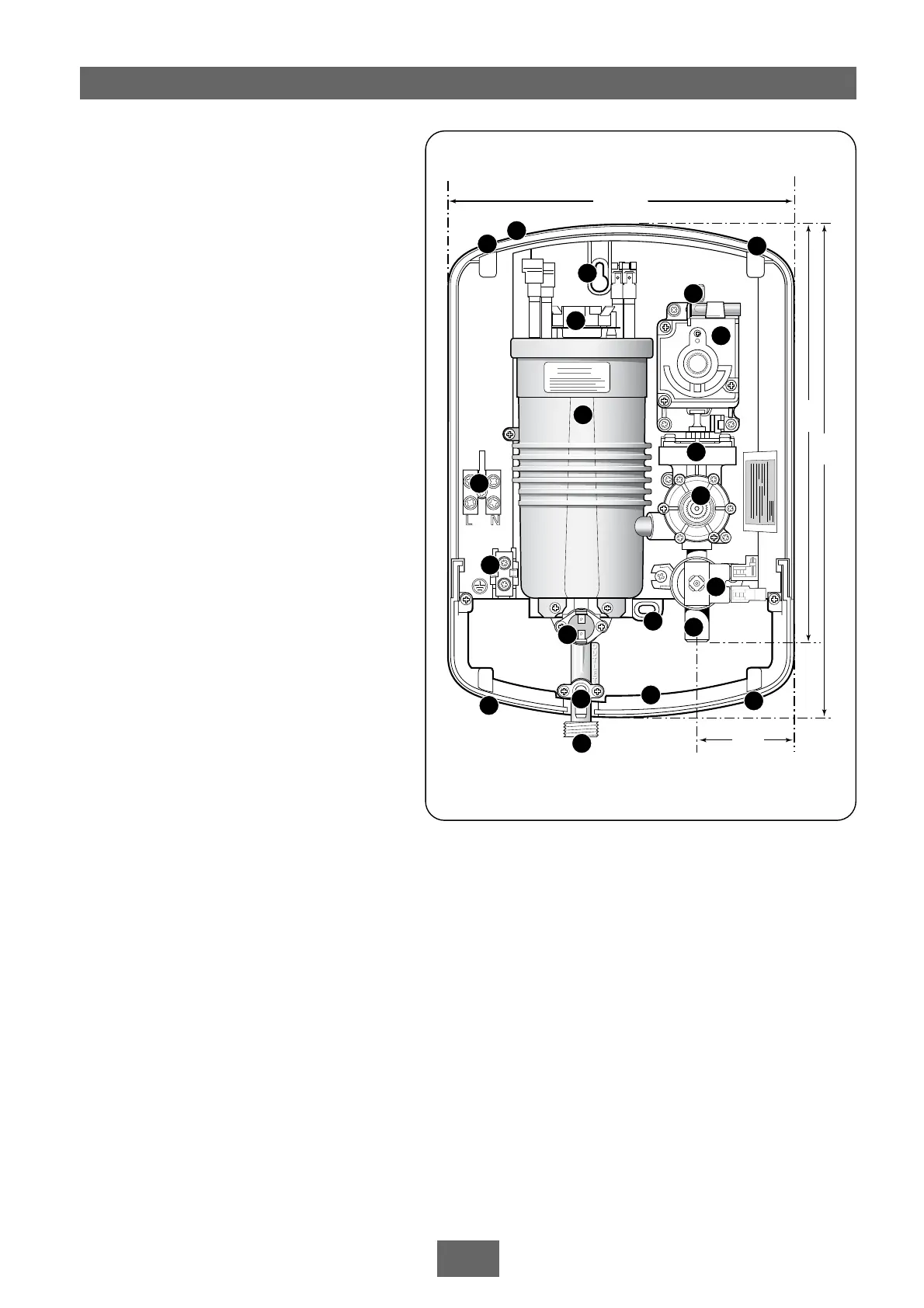

Fig.1
KEY TO MAIN COMPONENTS
Inside unit (fig.1)
1 Top cable/pipe entry
2 Wall screw fixings
3 Cover screw fixings
4 Thermal safety cut-out (main)
5 Power selector assembly
6 Power neon
7 Can and element assembly
8 Pressure switch assembly
9 Stabilising valve
10 Terminal block
11 Earth connection
12 Solenoid valve
13 Water inlet
14 Outlet temperature limiter
15 Pressure relief device (PRD)
16 Trimplate
17 Shower outlet
Pack contents
Shower unit
Sprayhead
Riser rail kit and fittings
Flexible hose
Screw fixing kit
Instructions, guarantee, etc.
NOTE: Wiring has not been depicted for reason of clarity.
