Samba
4
ELECTRICAL REQUIREMENTS
The installation, supply cable and circuit
protection must conform with BS7671 (IEE
wiring regulations) and be sufficient for the
amperage required.
The following notes are for guidance only:
1 The shower must only be connected to a
230-240V ac supply. If you are installing a
shower with a kilowatt rating above 9kW,
it is advisable to contact the local
electricity supply company.

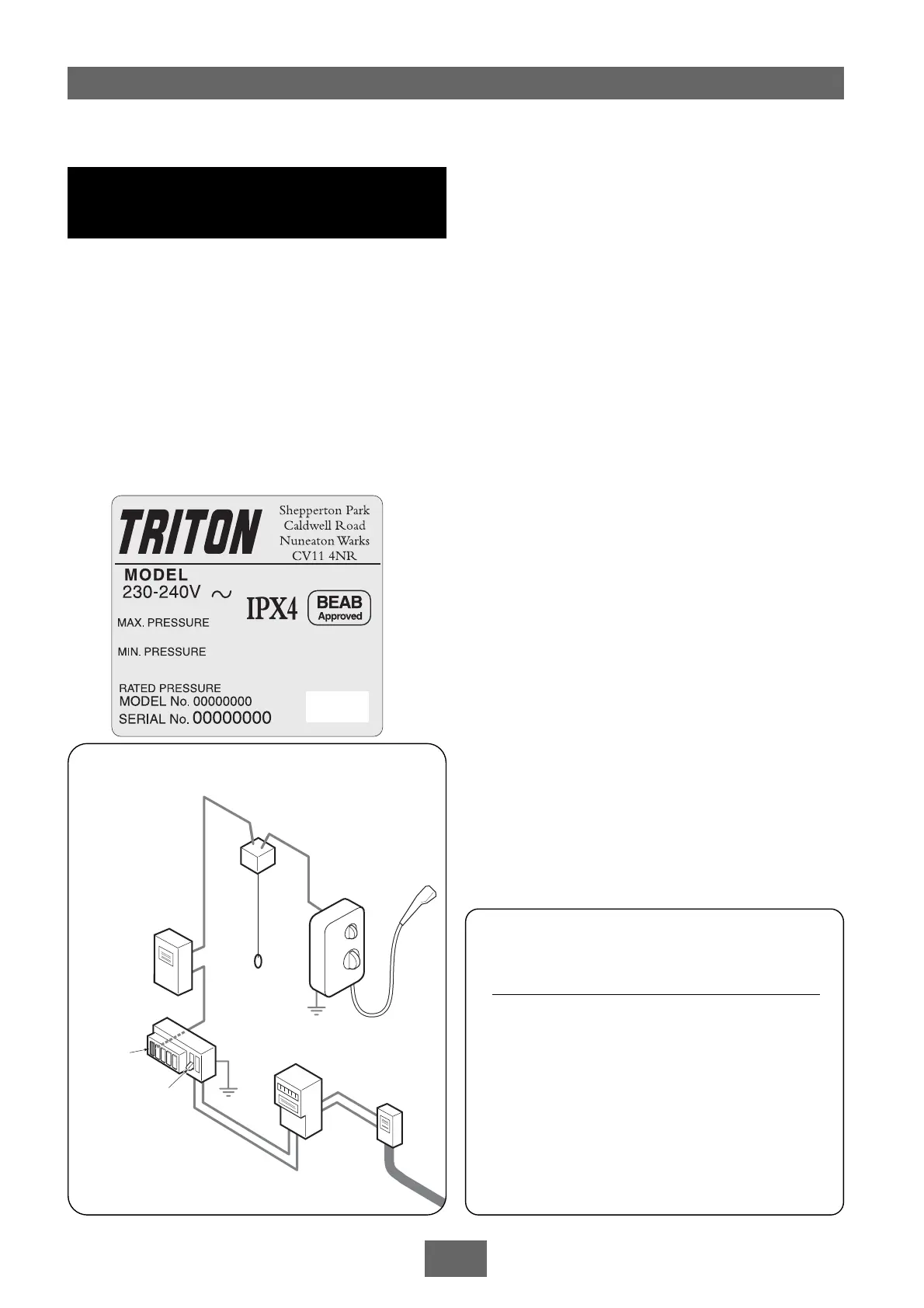

Fig.2
WARNING!
THIS APPLIANCE MUST BE EARTHED
Fig.3 Schematic of installation circuit
1.1 The electrical rating of the shower is
shown on the rating label (fig.2) within
the unit.
2 Before making any sort of electrical
connection within the installation, make
sure that no terminal is live. If in any
doubt, switch off the whole installation at
the consumer unit.
3 The shower must be connected to its own
independent electrical circuit. IT MUST
NOT be connected to a ring main, spur,
socket outlet, lighting circuit or cooker
circuit.
3.1 The electrical supply must be adequate for
the loading of the unit and existing circuits.
4 Check your consumer unit (main fuse box)
has a main switch rating of 80A or above
and that it has a spare fuse way which will
take the fuse or miniature circuit breaker
(MCB) necessary for the shower (fig.3).
4.1 If your consumer unit has a rating below
80A or if there is no spare fuse way, then
the installation will not be straightforward
and may require a new consumer unit
serving the house or just the shower.
4.2 You will need to contact the local
electricity company. They will check the
circuit and carry out what is necessary.
They will also check the main bonding.
5 The earth continuity conductor of the
electrical installation must be effectively
connected electrically to all exposed metal
CIRCUIT PROTECTION
unit cartridge
rating MCB fuse
7.0kW 30/32A 30A
7.5kW 32A 35A
8.0kW 40A 35A
8.5kW 40A 45A
9.0kW 40A 45A
9.5kW 40/45A 45A
10.5kW 45A 45A
Table A
