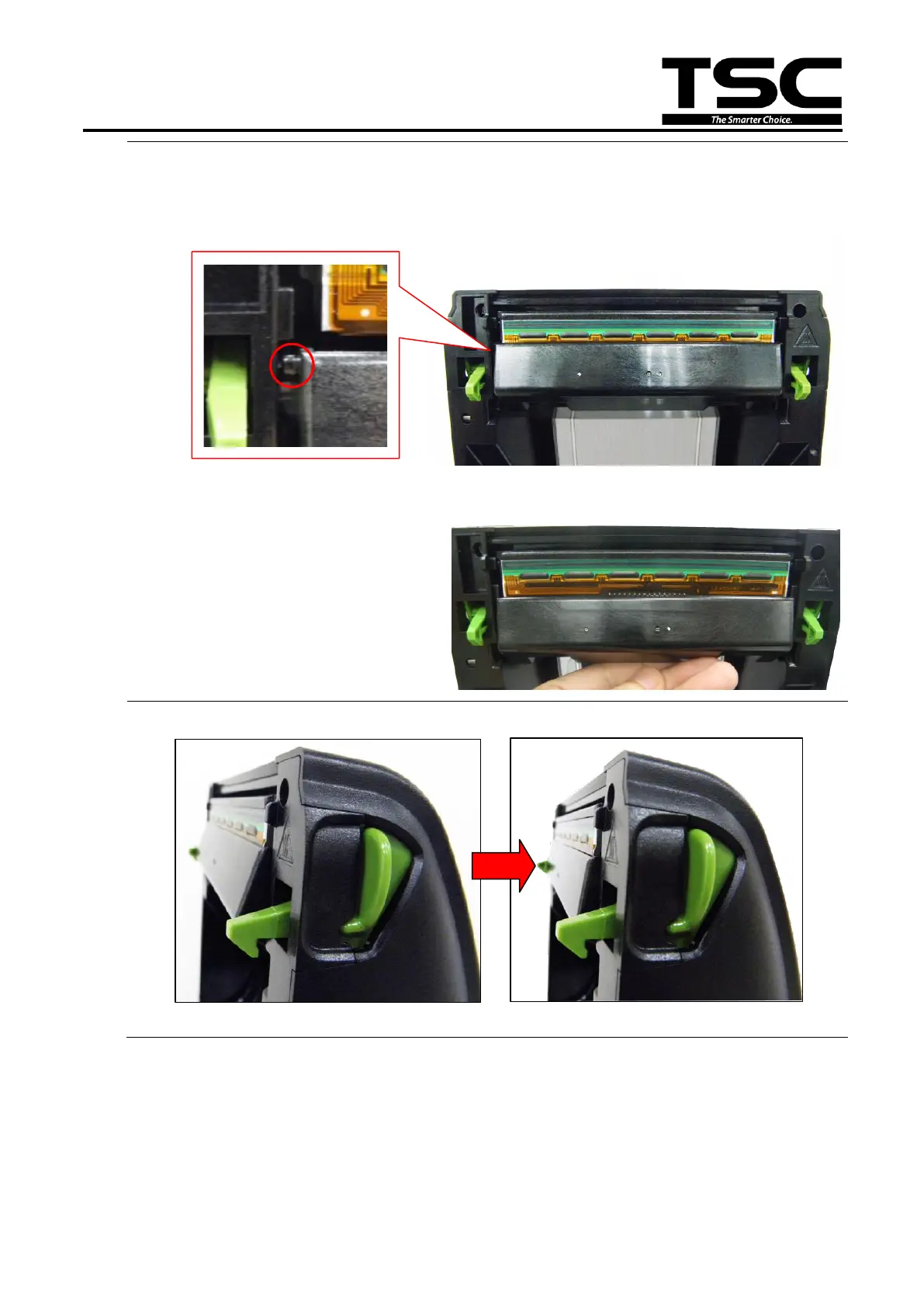

11. Lift up both latches of gap sensor cover into the printer inner cover. (you can press
the center of the printhead module for installing the cover easily) Please note that
the gap sensor cover CANNOT press the printhead module.
The gap sensor cover should cover about 1/2 printhead.
12. Press back the gap sensor cover tabs into the socket.
Latch
Press
O
X
