TSC TE310 Series Service Manual

14
TE200/TE210/TE300/TE310 Series
Bar Code Printer Service Manual

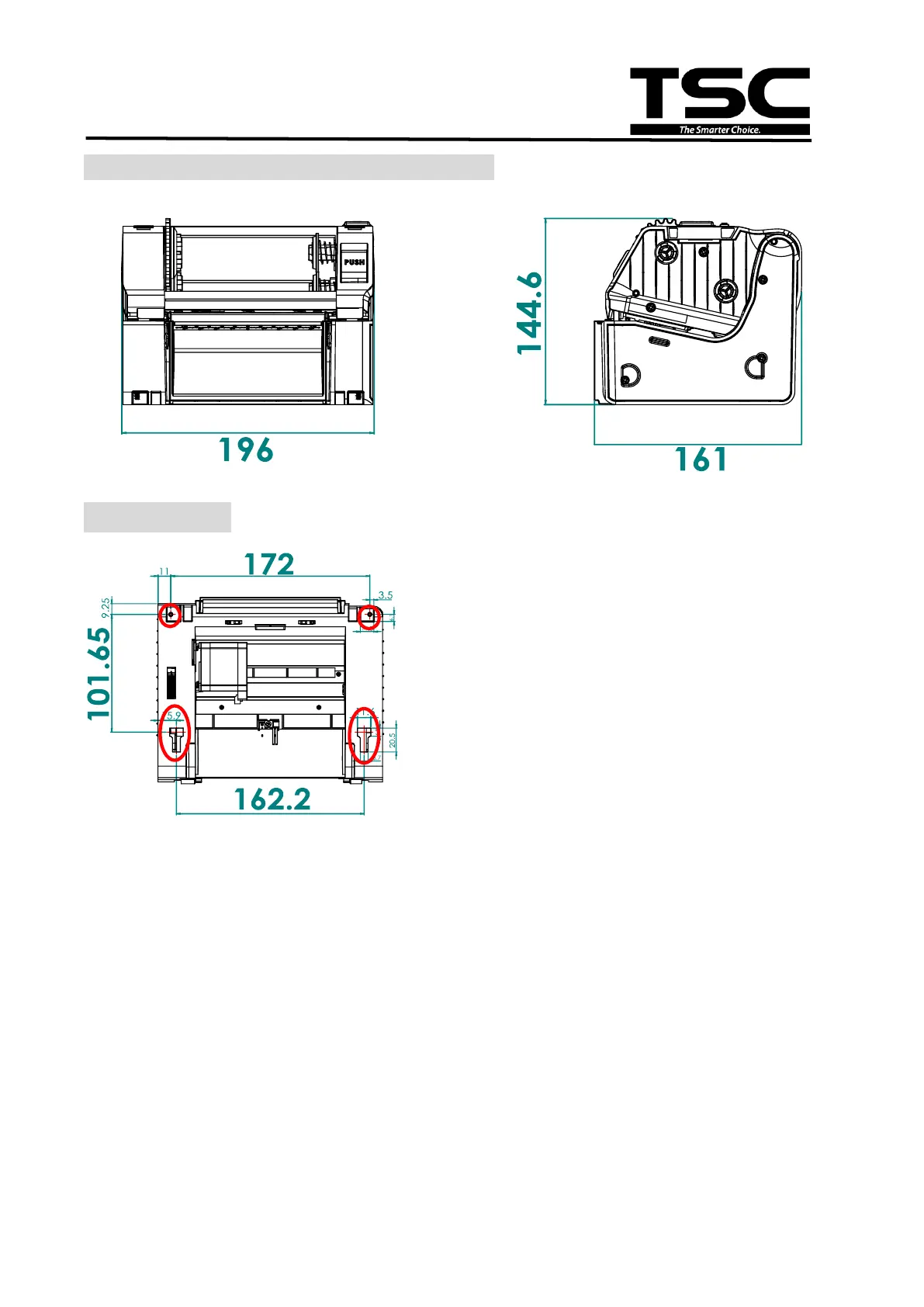

Print engine mechanism measurements
Bottom view
Note:
1. All dimensions in millimeters.
2. There are 4 location holes in this print
engine mechanism, the fixing location
holes are marked in red on bottom view
drawing which can be fixed by the
customer’s reference.

TSC TE310 Series Specifications

General

Resolution	203 dpi / 300 dpi
Print Method	Thermal transfer / Direct thermal
Interface	Ethernet
Power Supply	AC 100-240V, 50/60Hz
Operating Temperature	41°F to 104°F (5°C to 40°C)
Storage Temperature	-40 ~ 60°C (-40 ~ 140°F)
Humidity	20% to 85% (non-condensing)
