TTP-225/323
Bar Code Printer Service Manual
17

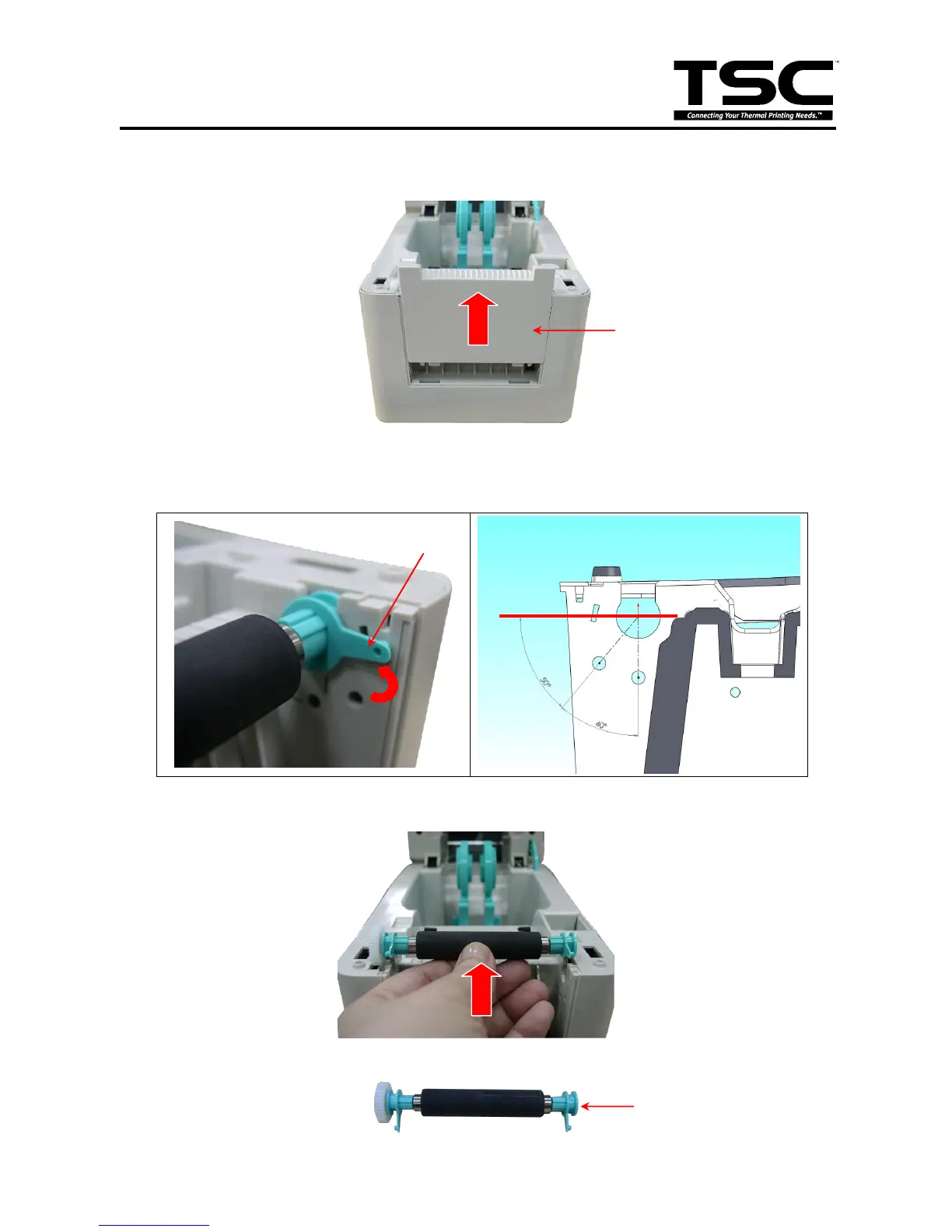

3.3 Replacing the Platen Roller Assembly
1. Open the printer top cover and remove the lower front cover.
2. Disengage the platen holder tabs from the lower inner cover by pulling out the right
side and left side tabs. Rotate the tabs into a horizontal position.
3. Take out the platen roller assembly.
4. Replace a new platen roller assembly.
Lower front cover
Platen roller assembly
Unhook
Horizontal position
