TSC TTP-225 Series Service Manual

TTP-225/323
Bar Code Printer Service Manual
20

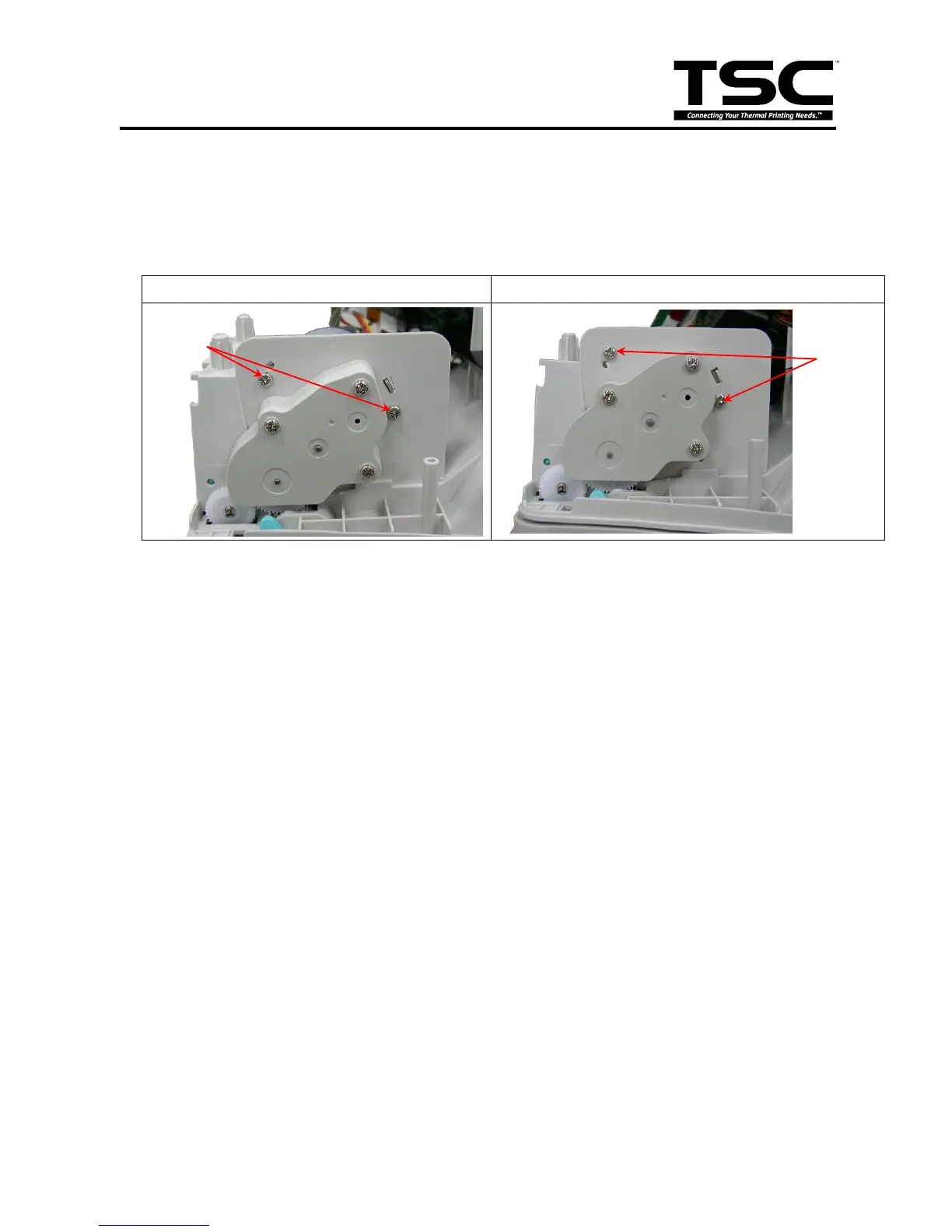

3.5 Replacing the Stepping Motor
1. Refer to section 3.2 to remove main board and RS-232/Ethernet interface board.
2. Use the screwdriver to remove 2 screws.
TTP-225 (203 dpi)
TTP-323 (300 dpi)
3. Remove/Replace the stepping motor.
4. Reassemble the parts in the reverse procedures.
Screws
Screws
