TSC TTP-225 Series Service Manual

TTP-225/323
Bar Code Printer Service Manual
19

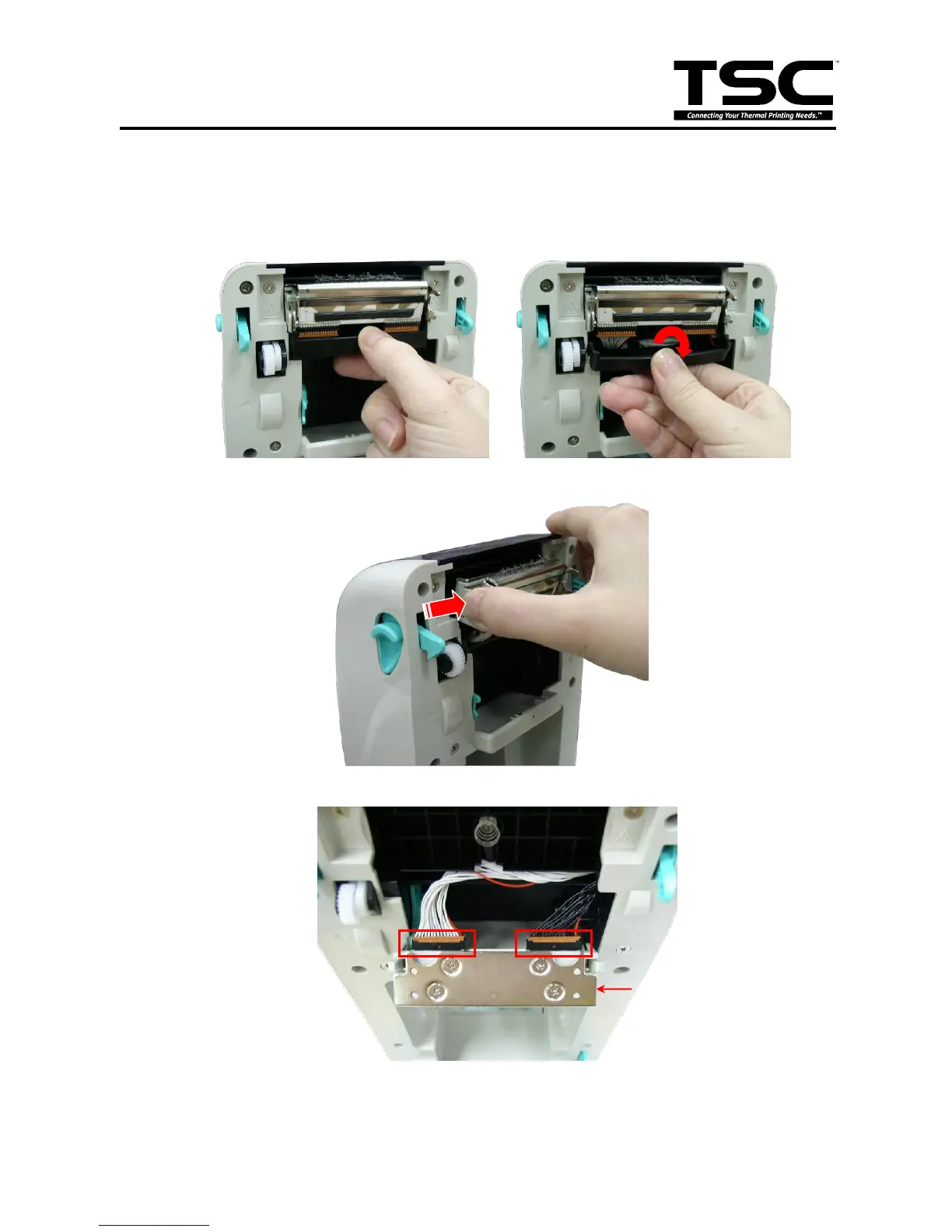

3.4 Replacing the Print Head Assembly
1. Open the printer top cover.
2. Remove the print head cable cover.
3. Press left concave of the print head bracket then pick up the print head assembly.
4. Disconnect the print head harness. Replace the print head assembly.
4. Reassemble the parts in the reverse procedures.
Print head assembly
